Name: Steinel 608811 Wall, Surface-mount PIR motion detector 140 ° Relay Black IP54
Brand: Steinel
SKU: 1513607
Availability: InStock

Black Steinel motion sensor light with white dome lens on a plain background.

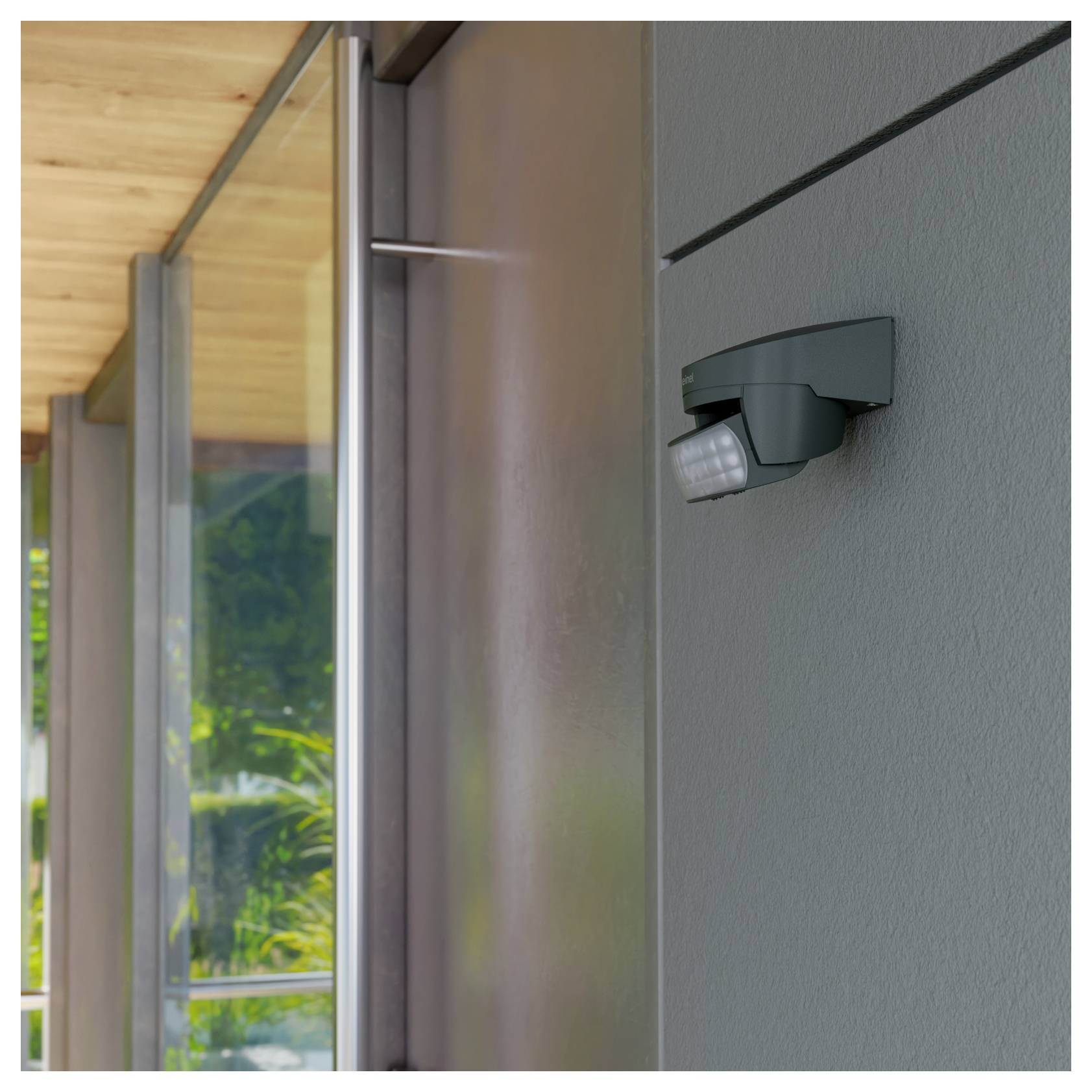

Outdoor motion sensor wall light mounted beside a window on a modern exterior wall, with a covered walkway overhead.<br>

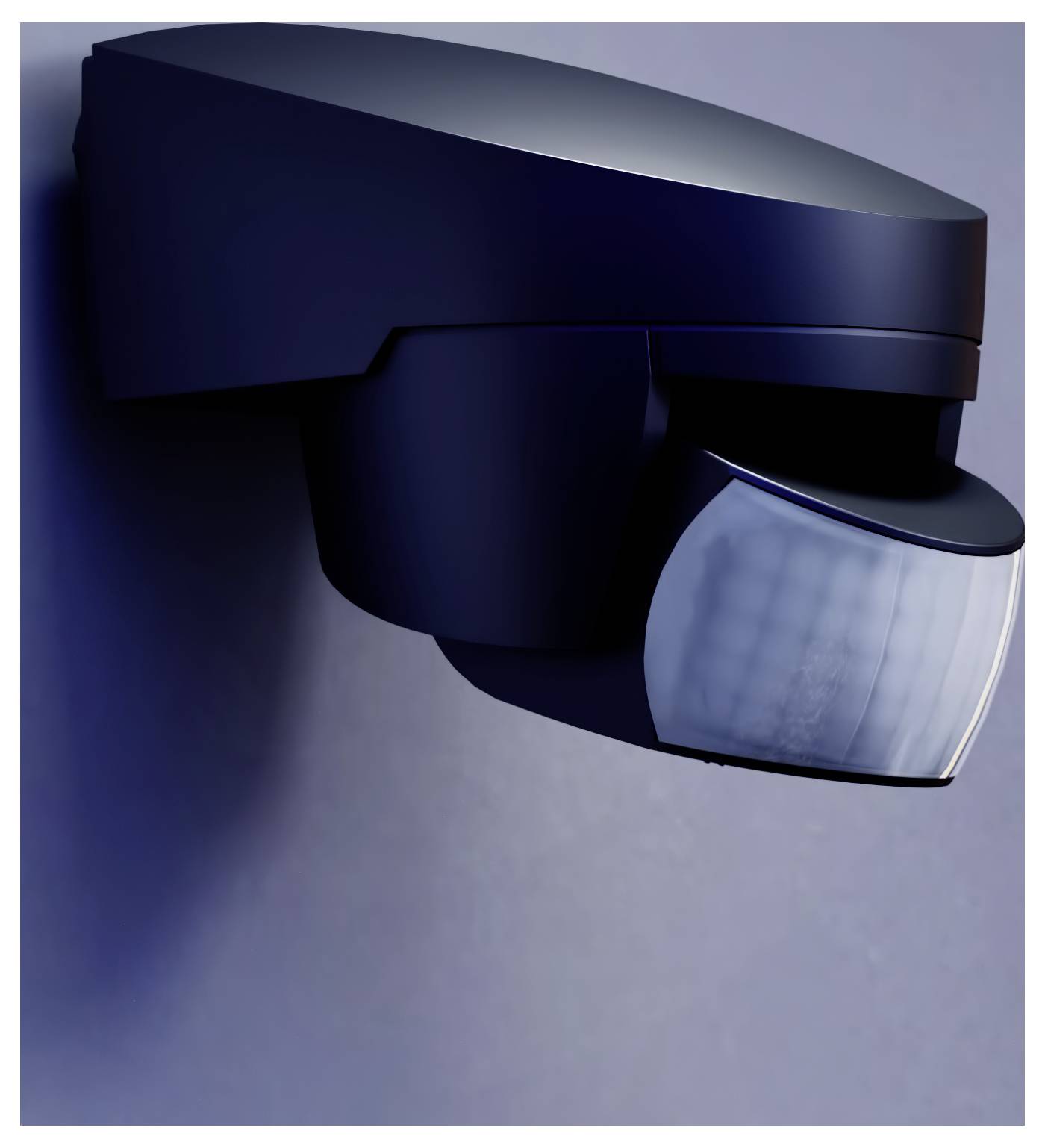

Wall-mounted security camera with a curved protective cover, angled downward against a plain gray background.

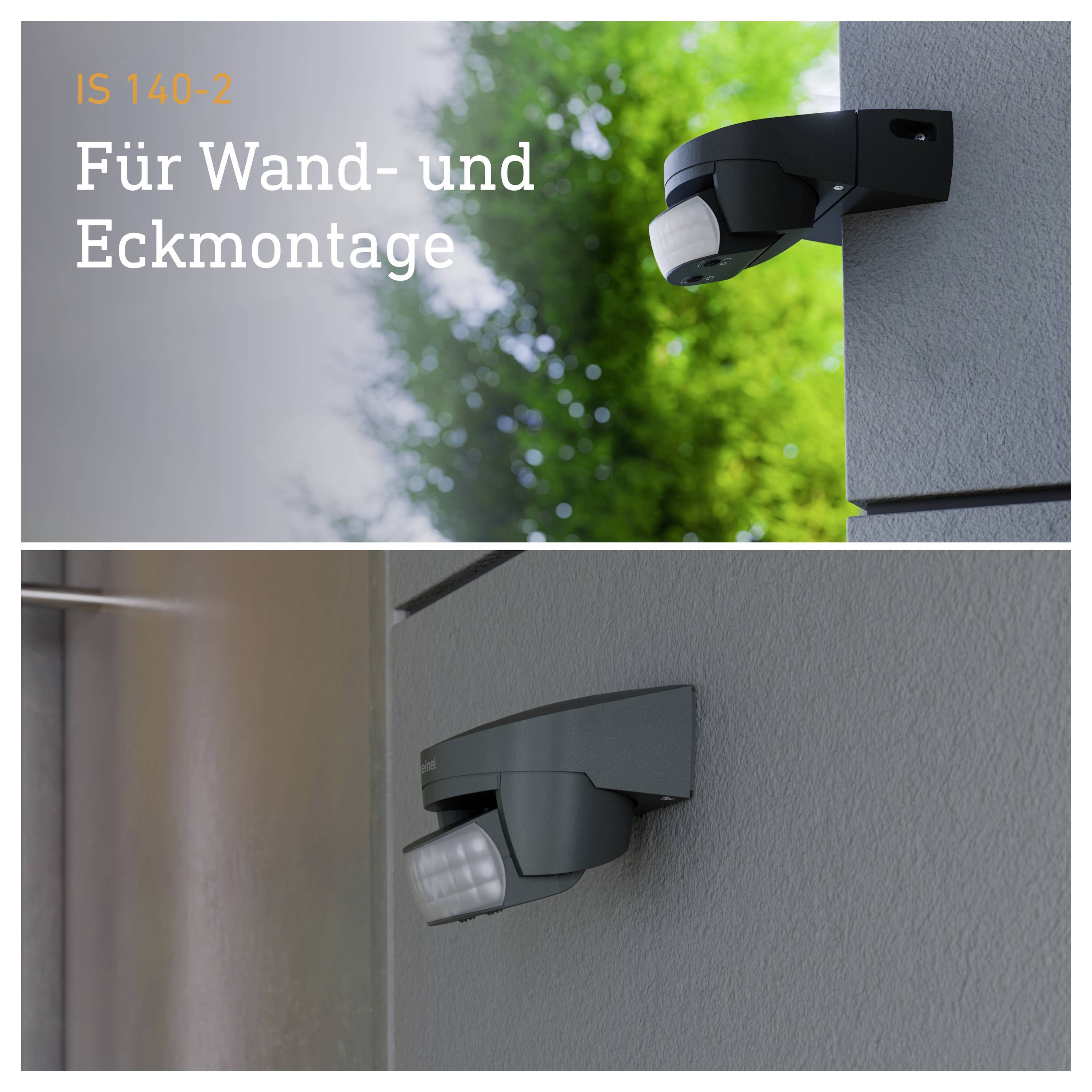

Outdoor motion detector on the wall; text: 'IS 140-2' and 'For wall and corner mounting' shows mounting options.

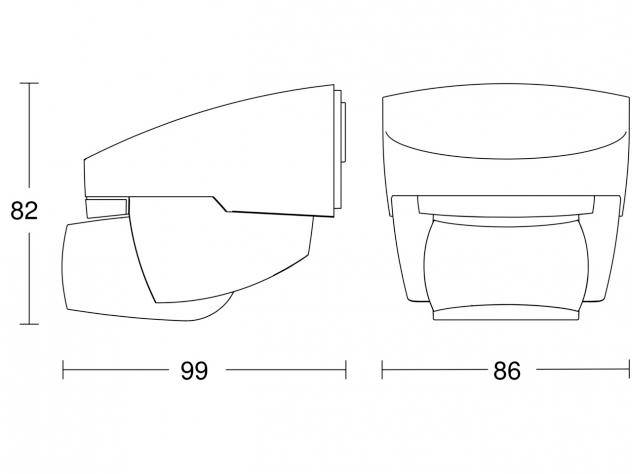

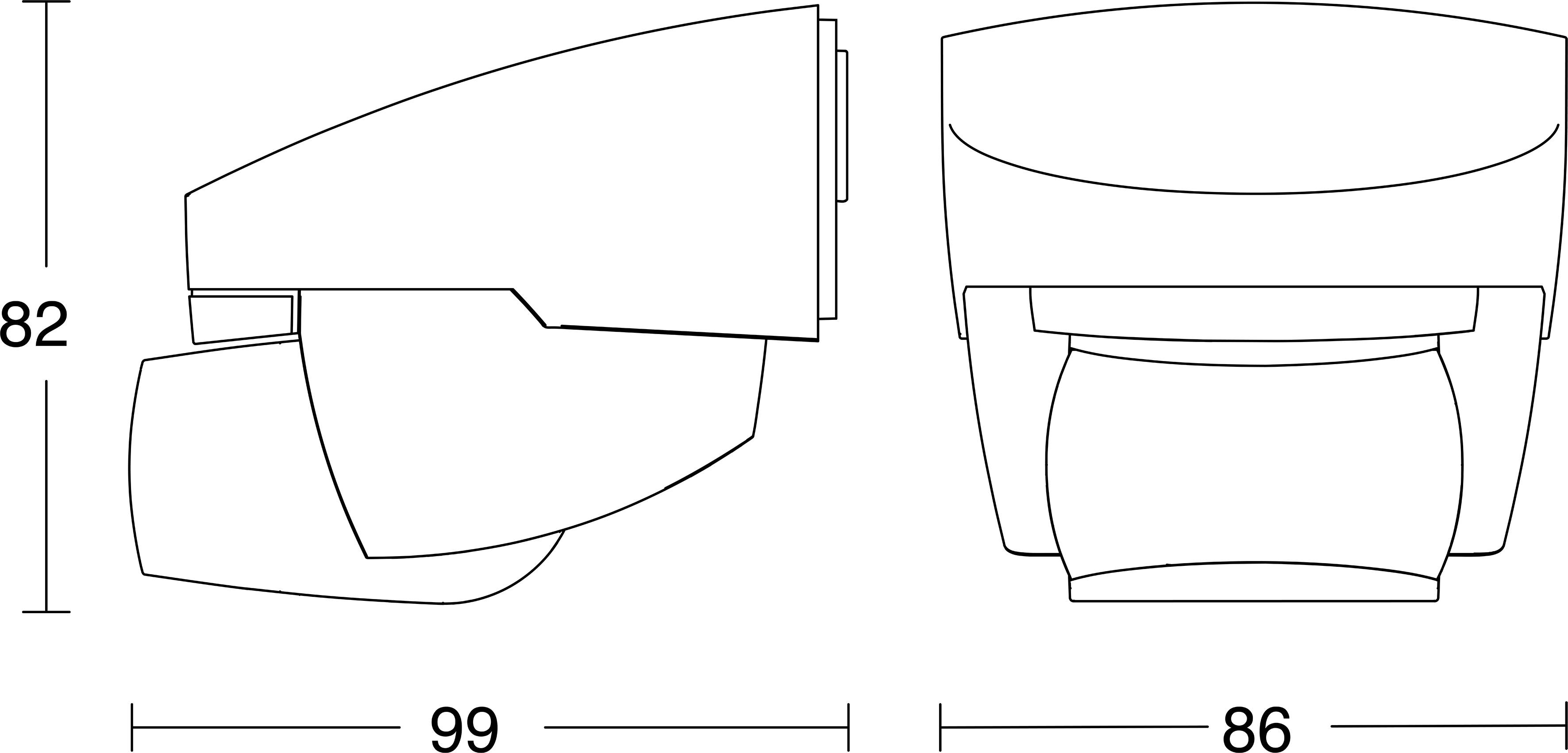

Technical line drawing of a cylindrical device shown in side and front views, with dimension labels 99 and 86 and a height marked 82.

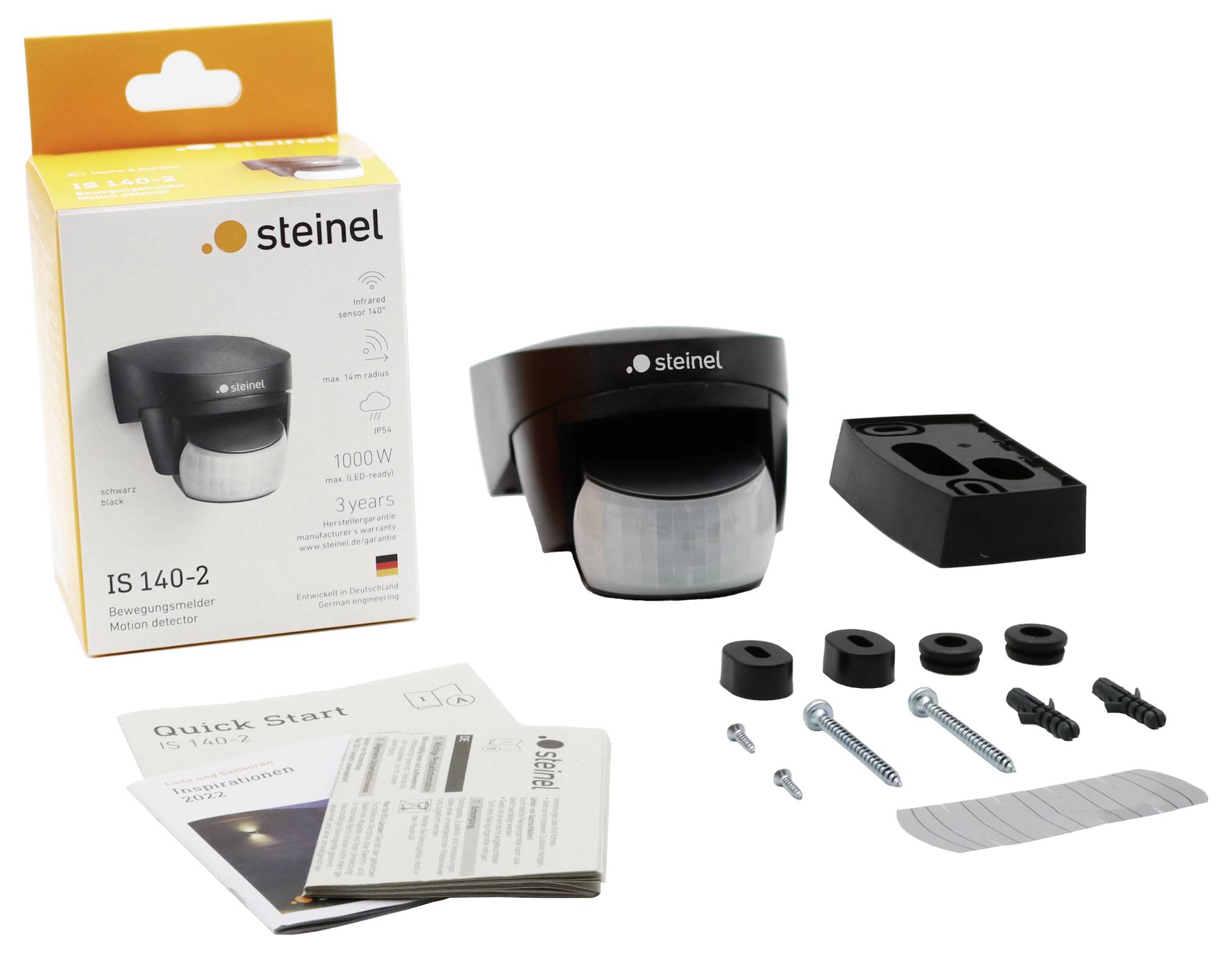

Steinel IS 140-2 motion sensor kit with box, sensor unit, mounting base, screws, and quick start instructions.

Four-field infographic on STEINEL: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

22 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Infrared motion detector is 140-2 black

Generous, clear connection space.
Can be swivelled horizontally and vertically
Protection class IP54
This text is machine translated.

Technical specifications

Swivel range 180° horizontally:
Swivel range vertical: 90°
Sensor type: passive infrared
Segment-detection suppression: Yes
Protection class: 2

Product type: PIR motion detector

Detection angle: 140°

: 14 m

Used at: Indoors
Outdoors

Mounting type: Wall
Surface-mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 240 V

Switching capacity (energy saving bulbs): 500 W

Switching capacity (light bulbs): 1000 W

Switching capacity (halogen bulbs): 1000 W

Switching capacity (LED): 500 W

Switching capacity (light tubes): 500 W

Twilight settings: 2 - 2000 lx

Time settings: 8 s - 35 min

Factory colour: Black

: IP54

Operating temperature: -20 - +50 °C

Length: 95 mm

Width: 86 mm

Height: 70 mm

Dim: (L x W x H) 95 x 86 x 70 mm

Weight: 0.17 kg

Voltage (min.): 230 V

: Surface mounted (plaster)

: Black

: 86

: Movement sensor

: TRUE

: 99 mm

: 99 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 120 A

: Plastic

: 9005

: IP54

: FALSE

: FALSE

: FALSE

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1513607 Steinel 608811 Wall, Surface-mount PIR motion detector 140 ° Relay Black IP54

User & Safety Instructions

User & Safety Instructions 1513607 Steinel 608811 Wall, Surface-mount PIR motion detector 140 ° Relay Black IP54

Warranty Terms

Warranty Terms 1513607 Steinel 608811 Wall, Surface-mount PIR motion detector 140 ° Relay Black IP54

Description

The IS 140-2 is considered a classic among the infrared motion detector. STEINEL has this classic, now with more class. The optical system is equipped with precise, spherical Fresnel lenses, a more precise person recording and a unique constant range. The setting options: accurate adjustment of the detection area by the horizontal by 90° and vertically by 180° swivel optical system. In addition, the detection range can be restricted with the accompanying cover plates. The IS 140-2 has easy adjustment of time and twilight threshold via rotary knob on the bottom of the sensor lens. Thanks to the generous, clear connection area, the infrared motion detector is 140-2 quickly and easily wired and on the wall or the corner. The cable can be flush or surface.

This text is machine translated.
