Name: Steinel 608910 Wall, Surface-mount PIR motion detector 140 ° Relay White IP54
Brand: Steinel
SKU: 1513608
Availability: InStock

White Steinel motion sensor light fixture with a rounded wall-mounted housing and translucent dome sensor lens.

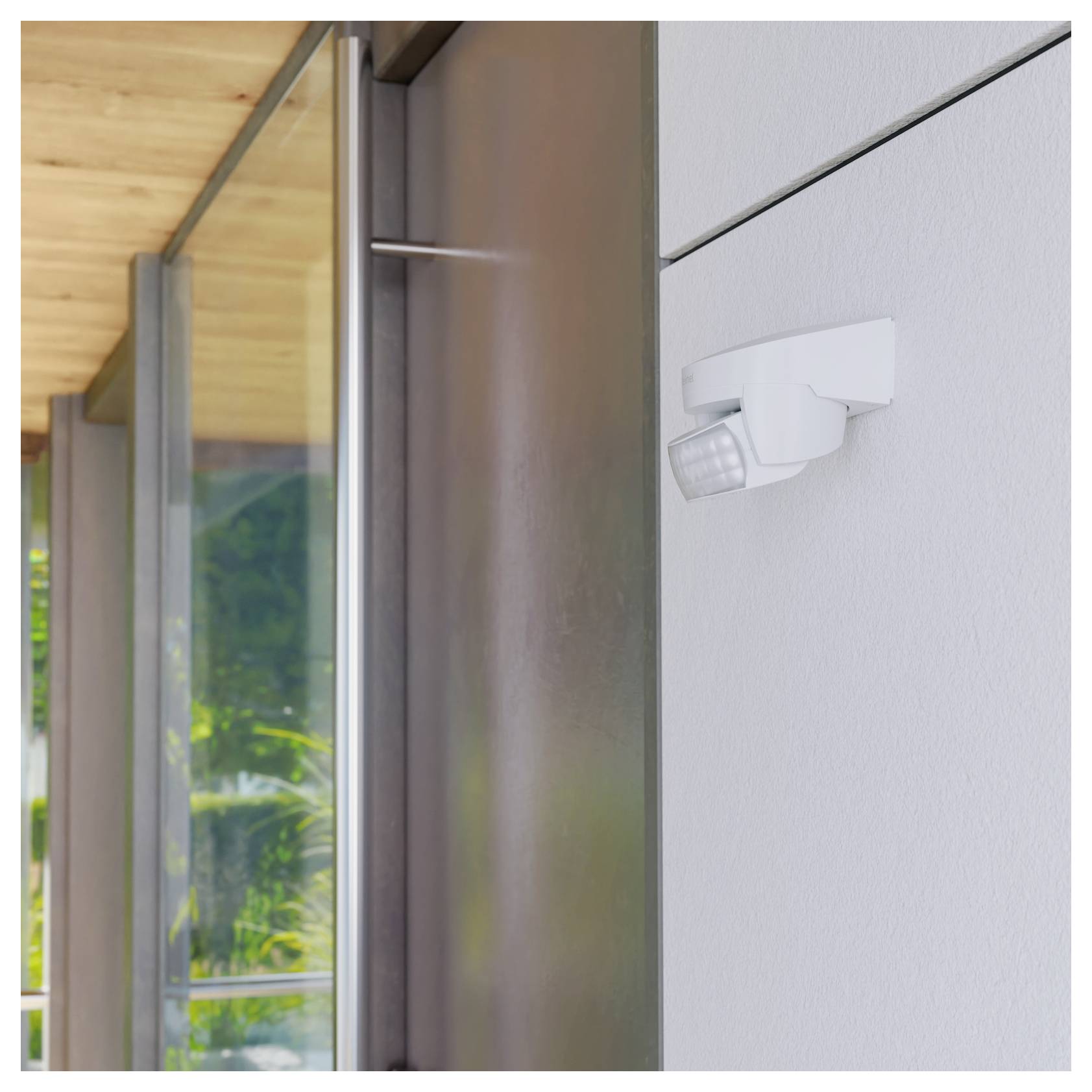

White motion sensor mounted on an exterior wall beside large windows and a wooden overhang.<br>

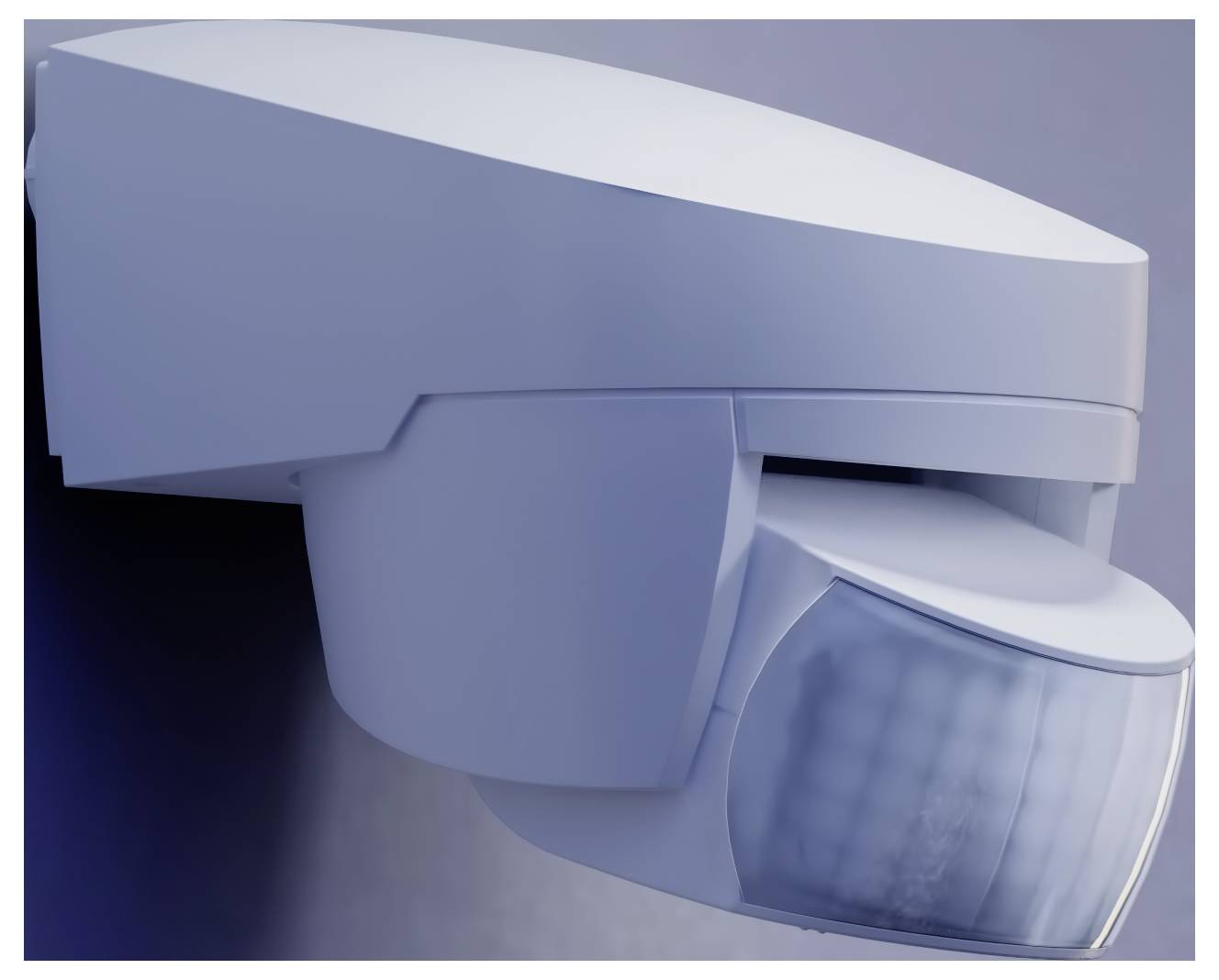

Close-up of a wall-mounted security camera with a large motion sensor dome, angled to monitor an area.

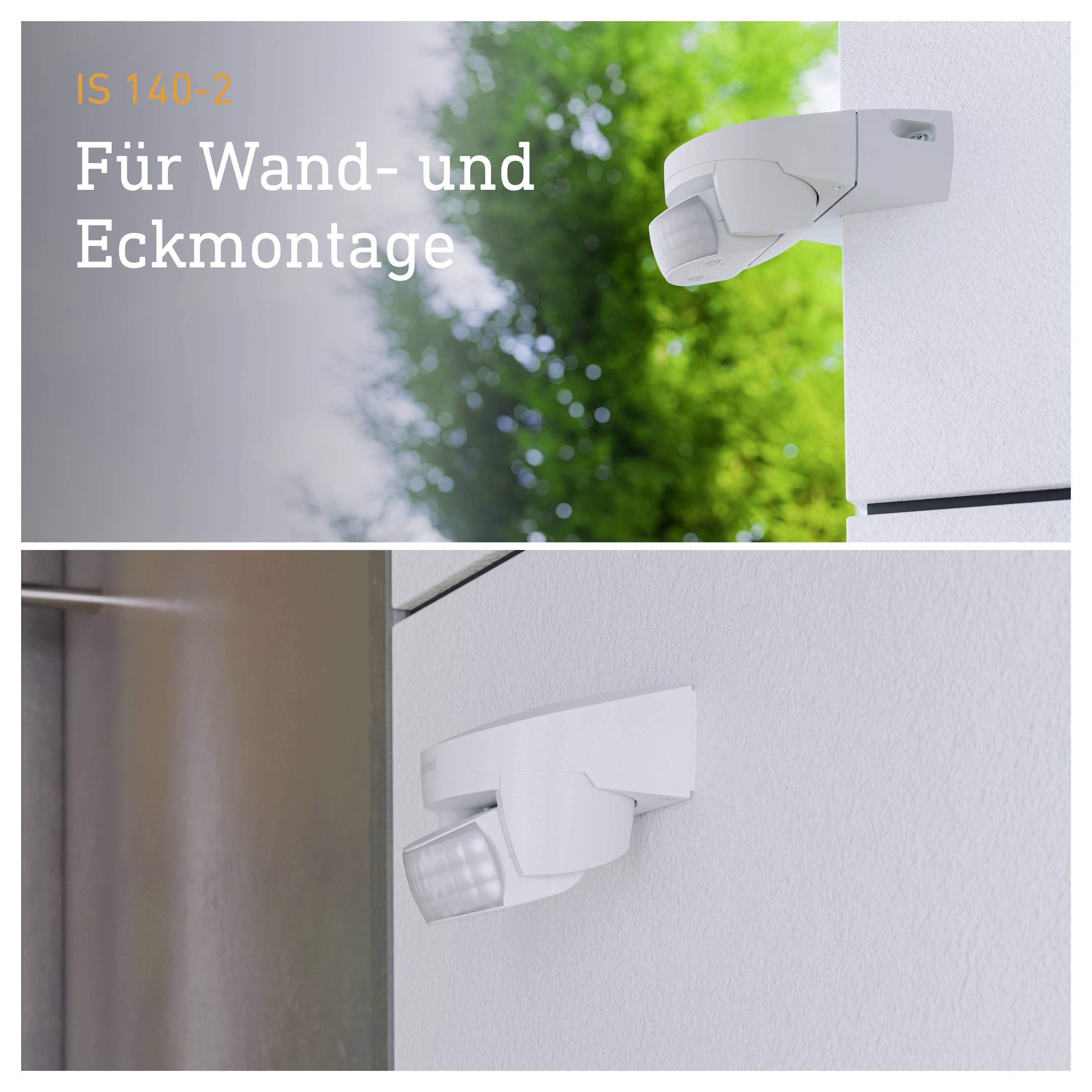

Motion detector for wall and corner mounting, with text 'IS 140-2'.

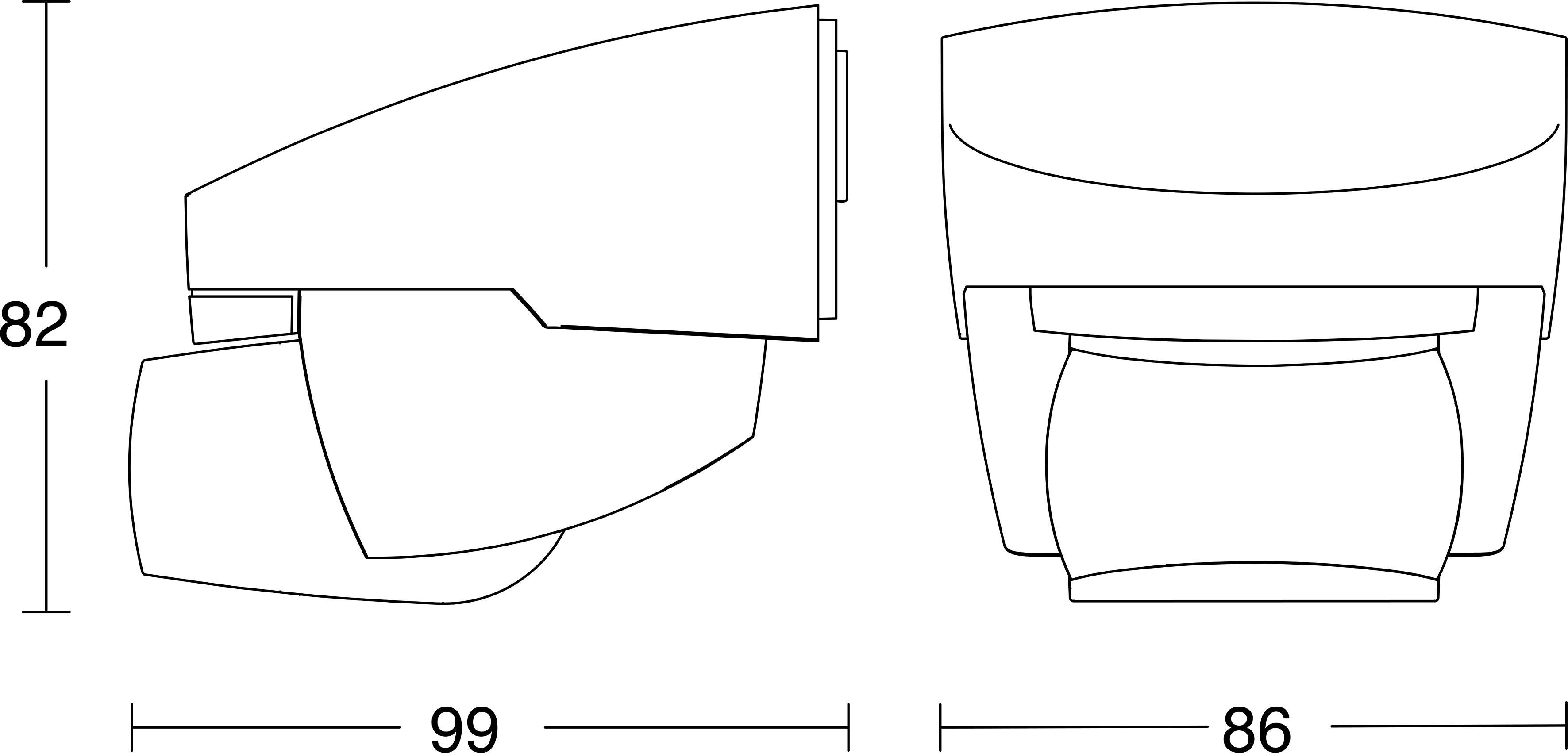

Technical line drawing of a camera lens or lens adapter shown from side and front views with dimensions labeled 99 and 86.

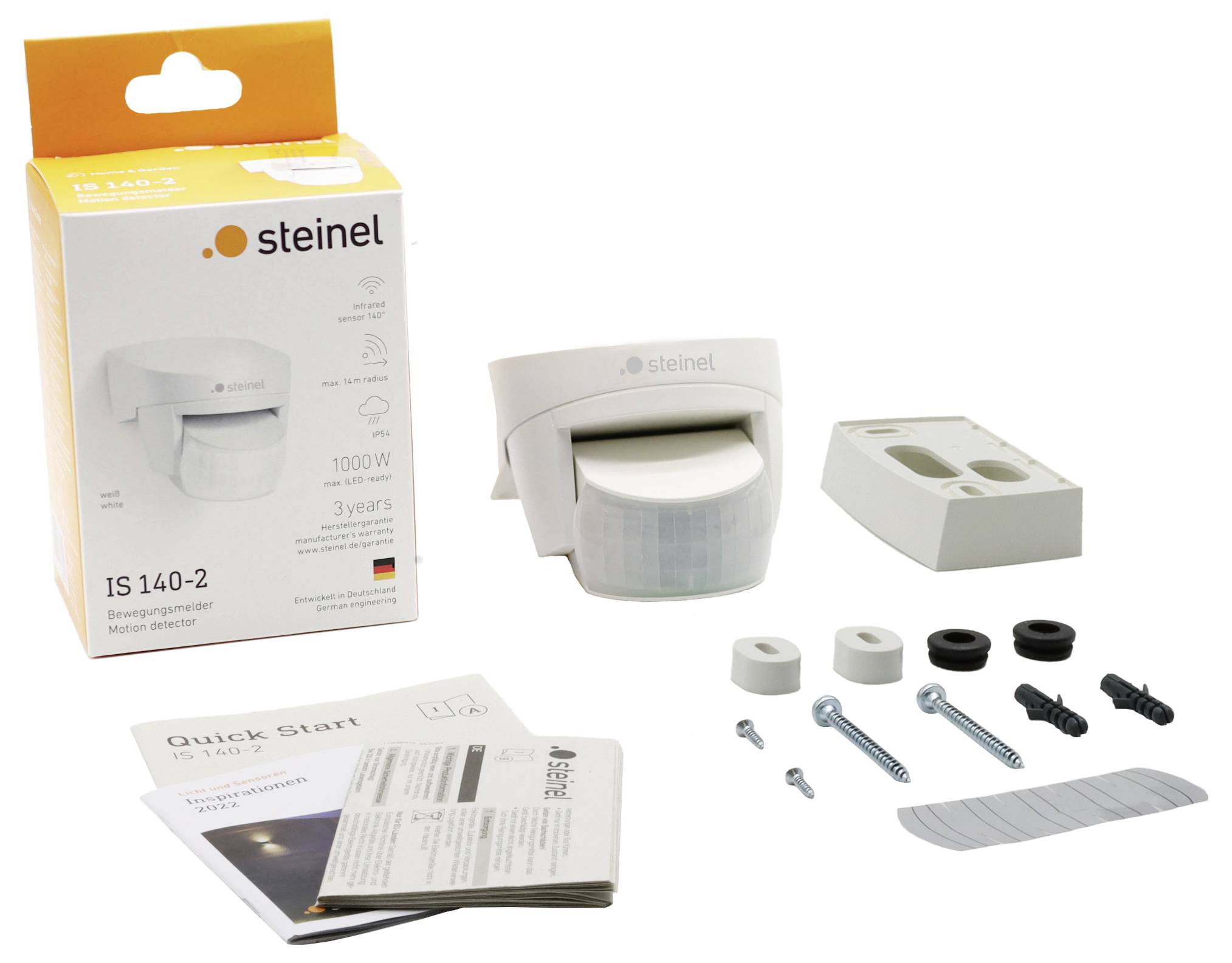

Steinel IS 140-2 motion sensor package with detector, mounting accessory, screws, and quick-start manual laid out on a white background.

Four-field infographic on STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

45 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Infrared motion detector is 140-2 white

Generous, clear connection space.
Can be swivelled horizontally and vertically
Protection class IP54
This text is machine translated.

Technical specifications

Swivel range 180° horizontally:
Swivel range vertical: 90°
Sensor type: passive infrared
Segment-detection suppression: Yes
Protection class: 2

Product type: PIR motion detector

Detection angle: 140°

: 14 m

Used at: Indoors
Outdoors

Mounting type: Wall
Surface-mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 1000 W

Voltage (max.): 240 V

Switching capacity (energy saving bulbs): 500 W

Switching capacity (light bulbs): 1000 W

Switching capacity (halogen bulbs): 1000 W

Switching capacity (LED): 500 W

Switching capacity (light tubes): 500 W

Twilight settings: 2 - 2000 lx

Time settings: 8 s - 35 min

Factory colour: White

: IP54

Operating temperature: -20 - +50 °C

Length: 95 mm

Width: 86 mm

Height: 70 mm

Dim: (L x W x H) 95 x 86 x 70 mm

Weight: 246.00

Voltage (min.): 230 V

: Surface mounted (plaster)

: White

: 86

: Movement sensor

: TRUE

: 99 mm

: 99 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 120 A

: Plastic

: 9010

: IP54

: FALSE

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1513608 Steinel 608910 Wall, Surface-mount PIR motion detector 140 ° Relay White IP54

User & Safety Instructions

User & Safety Instructions 1513608 Steinel 608910 Wall, Surface-mount PIR motion detector 140 ° Relay White IP54

Warranty Terms

Warranty Terms 1513608 Steinel 608910 Wall, Surface-mount PIR motion detector 140 ° Relay White IP54

Description

The IS 140-2 is considered a classic among the infrared motion detector. STEINEL has this classic, now with more class. The optical system is equipped with precise, spherical Fresnel lenses, a more precise person recording and a unique constant range. The setting options: accurate adjustment of the detection area by the horizontal by 90° and vertically by 180° swivel optical system. In addition, the detection range can be restricted with the accompanying cover plates. The IS 140-2 has easy adjustment of time and twilight threshold via rotary knob on the bottom of the sensor lens. Thanks to the generous, clear connection area, the infrared motion detector is 140-2 quickly and easily wired and on the wall or the corner. The cable can be flush or surface.

This text is machine translated.
