Name: Steinel 660314 Wall, Surface-mount PIR motion detector 130 ° Relay White IP54
Brand: Steinel
SKU: 1513605
Availability: InStock

White Steinel wall-mounted motion sensor with a curved infrared lens, shown front view on a plain background.

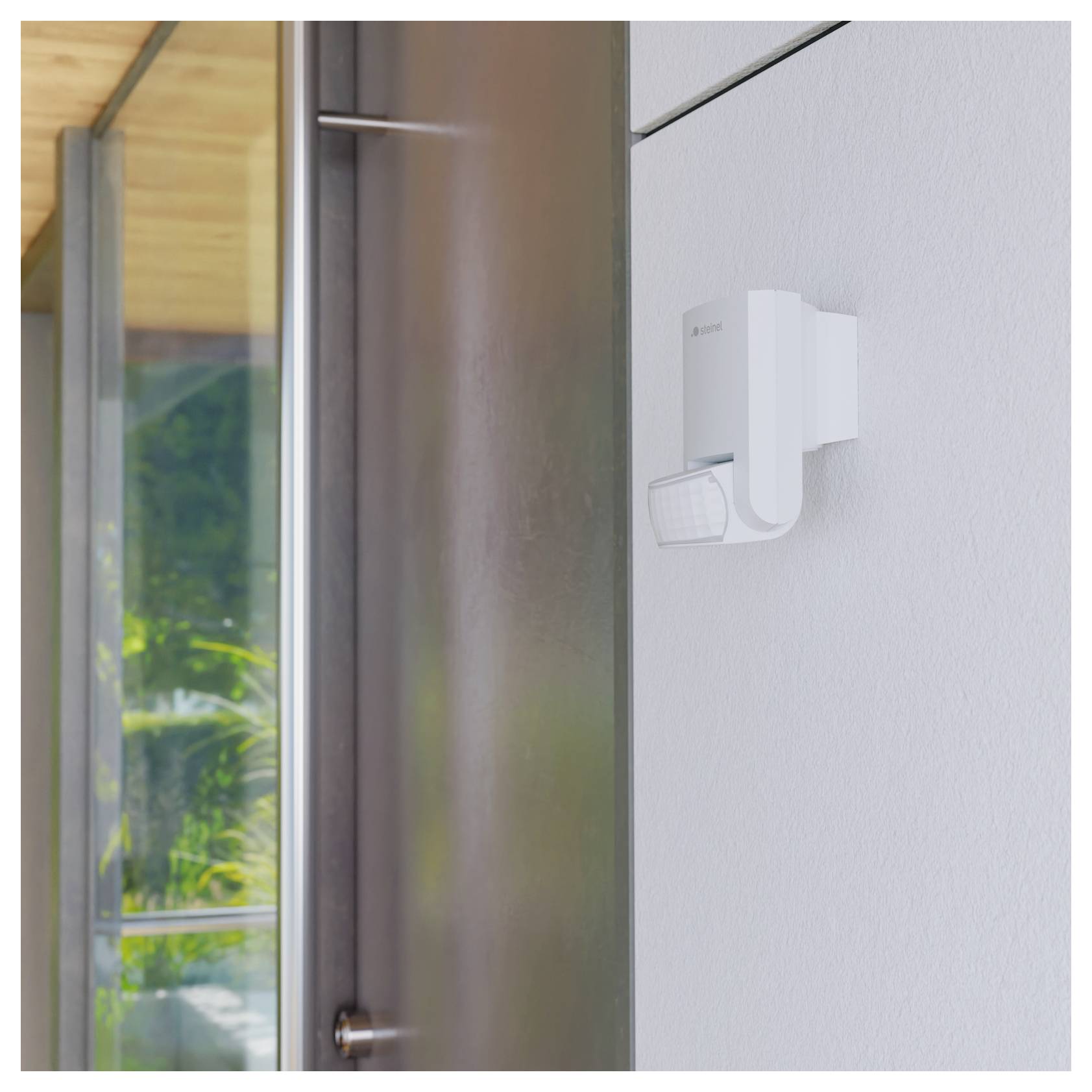

White wall-mounted motion sensor beside a door, with sunlight and a window view in the background.

Siemens-branded wall-mounted motion sensor or security camera with a curved transparent lens, shown in close-up on a plain background.

Technical drawing of a toilet-paper holder with a cylindrical roll; front and side views show dimensions 110, 78, and 87.

STEINEL's quality promise: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 33.99 / piece)

€ 33.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Infrared motion detector is130-2 white

Generous, clear connection space.
Can be swivelled horizontally and vertically
Perfect detection with low-level detection
This text is machine translated.

Technical specifications

Swivel range horizontal: 50°
Swivel range vertical: 90°
Sensor type: passive infrared
Segment-detection fade-out possible: Yes
Protection class: 2

Product type: PIR motion detector

Detection angle: 130°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Wall
Surface-mount

Operating voltage: 230 V

Contact type: Relay

Switching capacity: 600 W

Voltage (max.): 240 V

Switching capacity (energy saving bulbs): 500 W

Switching capacity (light bulbs): 600 W

Switching capacity (halogen bulbs): 600 W

Switching capacity (LED): 500 W

Switching capacity (light tubes): 500 W

Twilight settings: 2 - 2000 lx

Time settings: 8 s - 35 min

Factory colour: White

: IP54

Length: 84 mm

Width: 78 mm

Height: 130 mm

Dim: (L x W x H) 84 x 78 x 130 mm

Weight: 0.162 kg

Voltage (min.): 230 V

: Surface mounted (plaster)

: White

: 78

: Movement sensor

: TRUE

: 87 mm

: 87 mm

: Other

: Other

: AC

: 50-50 MHz

: Thermoplastic

: 120 A

: Plastic

: 9010

: IP54

: FALSE

: FALSE

: FALSE

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1513605 Steinel 660314 Wall, Surface-mount PIR motion detector 130 ° Relay White IP54

User & Safety Instructions

User & Safety Instructions 1513605 Steinel 660314 Wall, Surface-mount PIR motion detector 130 ° Relay White IP54

Warranty Terms

Warranty Terms 1513605 Steinel 660314 Wall, Surface-mount PIR motion detector 130 ° Relay White IP54

Description

The infrared motion detector is 130-2 with the unbeatable price/performance ratio is one of the STEINEL Customer Favorites. The infrared motion detector is 130-2 is the ideal solution for the specific monitoring of surfaces at the house. The detection range can be due to the horizontal by 50° and vertically by 90° swivel multi lens can be precisely adjusted to the specific conditions on-site. In addition, the detection range can be restricted with the accompanying cover plates. Time and twilight threshold can be via a rotary knob on the bottom of the multi-lens is continuously adjustable. Thanks to the generous, clear connection area, the infrared motion detector is 130-2 quickly and easily wired and mounted on the wall. The cable can be flush or surface.

This text is machine translated.
