Name: Suevia SU135312 Surface-mount Motion detector 180 ° White IP44
Brand: Suevia
SKU: 1487391
Availability: InStock

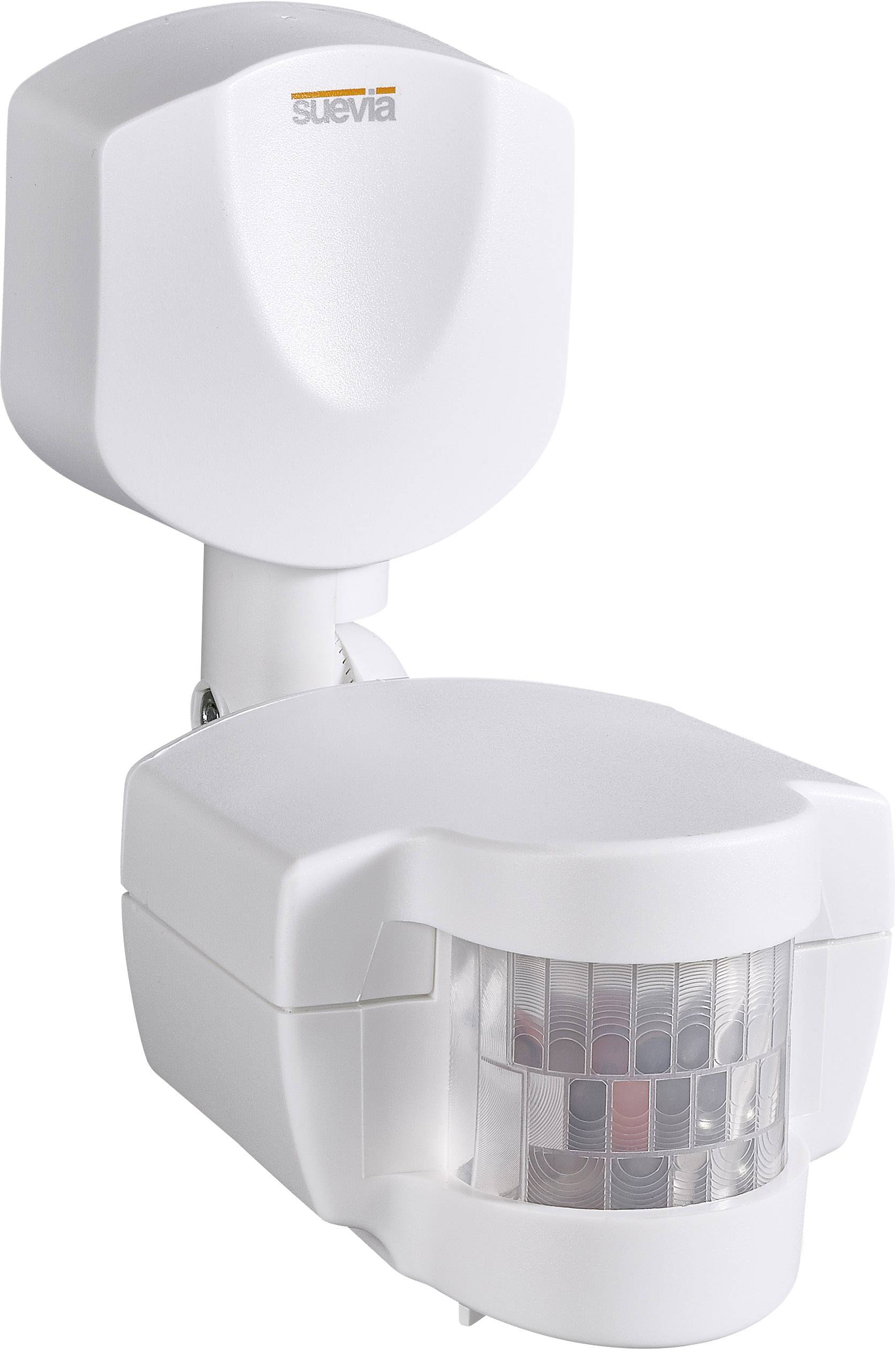

A white outdoor motion sensor, mountable on walls for automatic light control when movement is detected.

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Motion detector ViaMat

Surface mounting
Switching cable up to 1200 W
Running time 10 sec - 10 Min.

Technical specifications

Light sensitivity 5 - 2000 Lux
Switching power μ 10A 250V
Device power consumption 8.5 VA (about 1 W)
Operating temperature -10 °C to +50 °C
Protection class II in accordance with EN 60335 if installed correctly

Product type: Motion detector

Detection angle: 180°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Surface-mount

Operating voltage: 230 V

Switching capacity (energy saving bulbs): 400 VA

Switching capacity (light bulbs): 1200 W

Switching capacity (halogen bulbs): 1200 W

Switching capacity (LED): 40 VA

Switching capacity (light tubes): 400 VA

Factory colour: White

: IP44

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1487391 Suevia SU135312 Surface-mount Motion detector 180 ° White IP44

Description

The motion detector detects ViaMat invisible infrared radiation of persons and other heat sources without self-radiation. If a heat source in the detection range of ViaMat moves, it turns on the device. As soon as no more movement is detected, the device will be deactivated after an adjustable delay time. ViaMat is not for alarm systems.
The circuit of the ViaMat reacts only when the light conditions under the selected level.

This text is machine translated.
