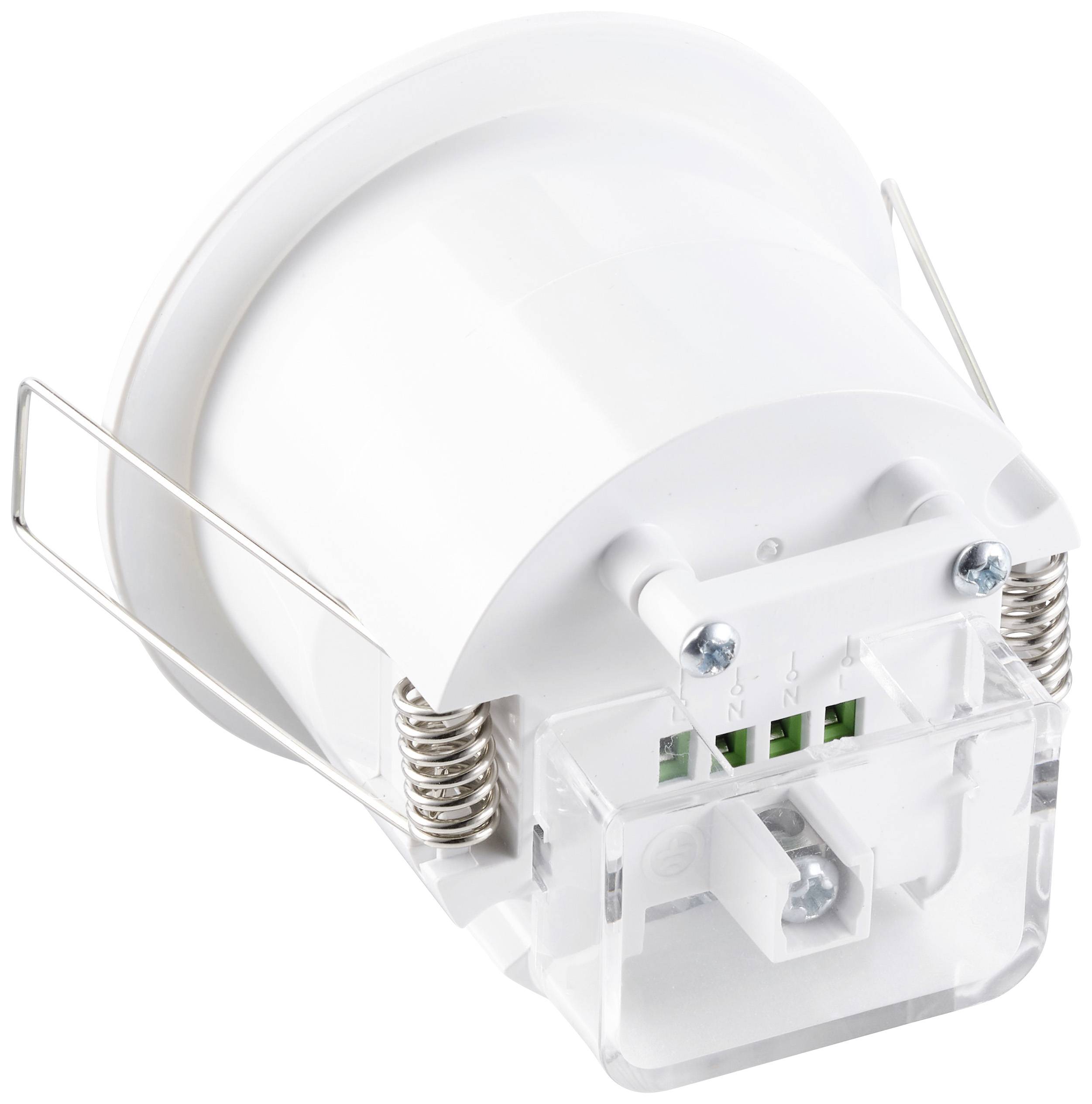

A white recessed ceiling speaker with metal brackets and terminal connections on the back, suitable for ceiling mounting.

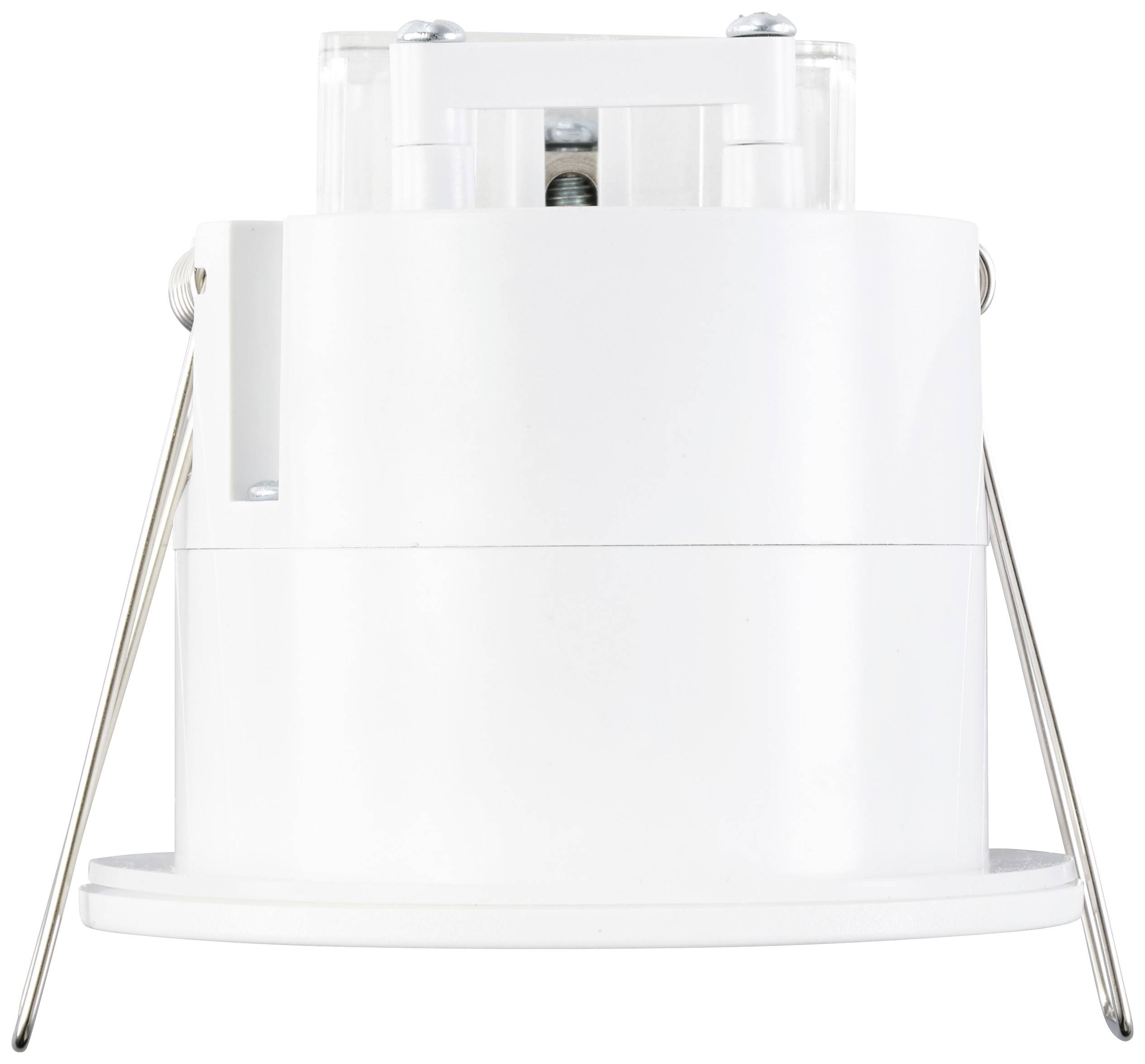

A white recessed spotlight with two metallic mounting clips on its sides.

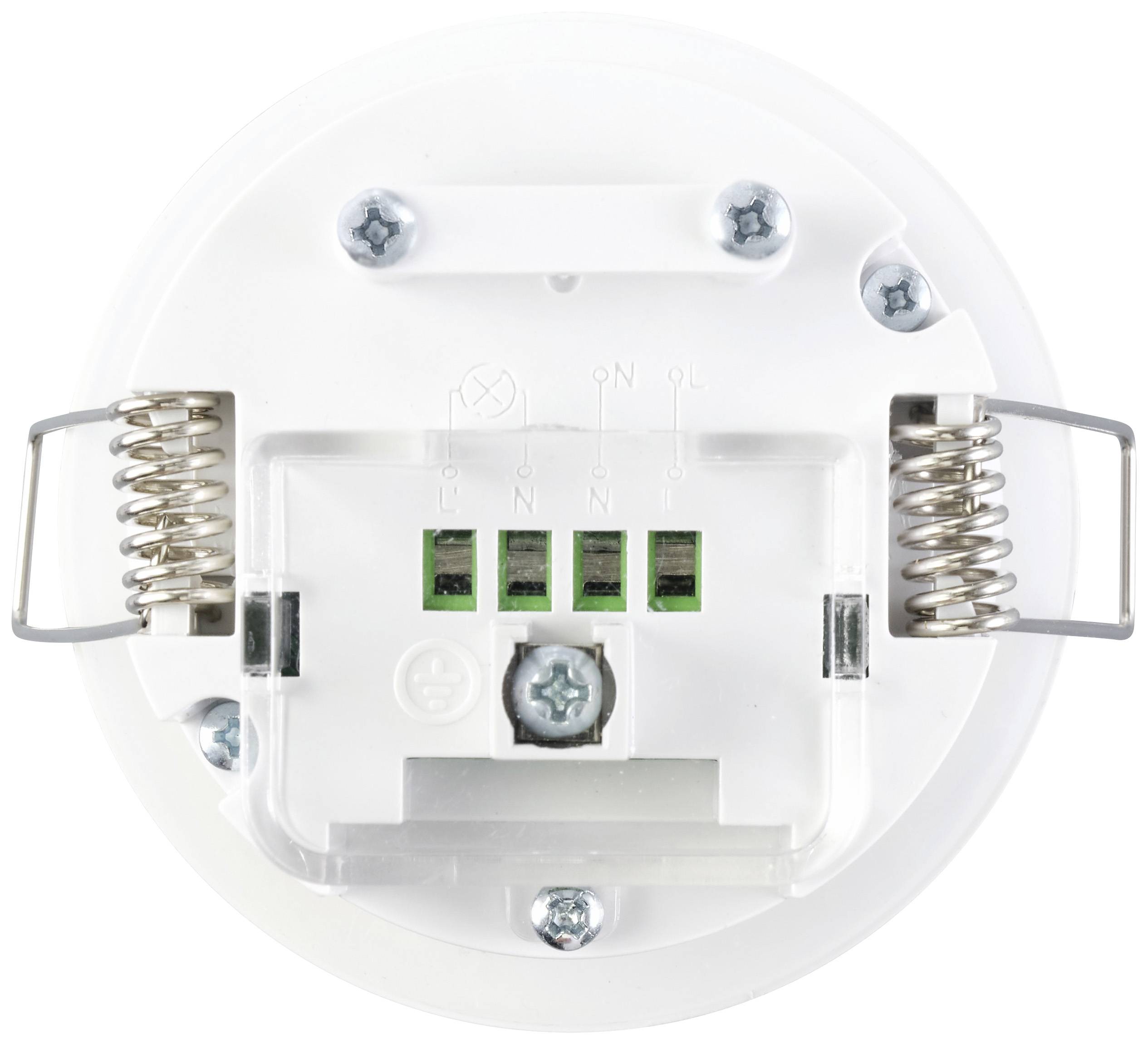

Electrical socket connection with spring terminals on a white housing, used for ceiling mounting of smoke detectors.

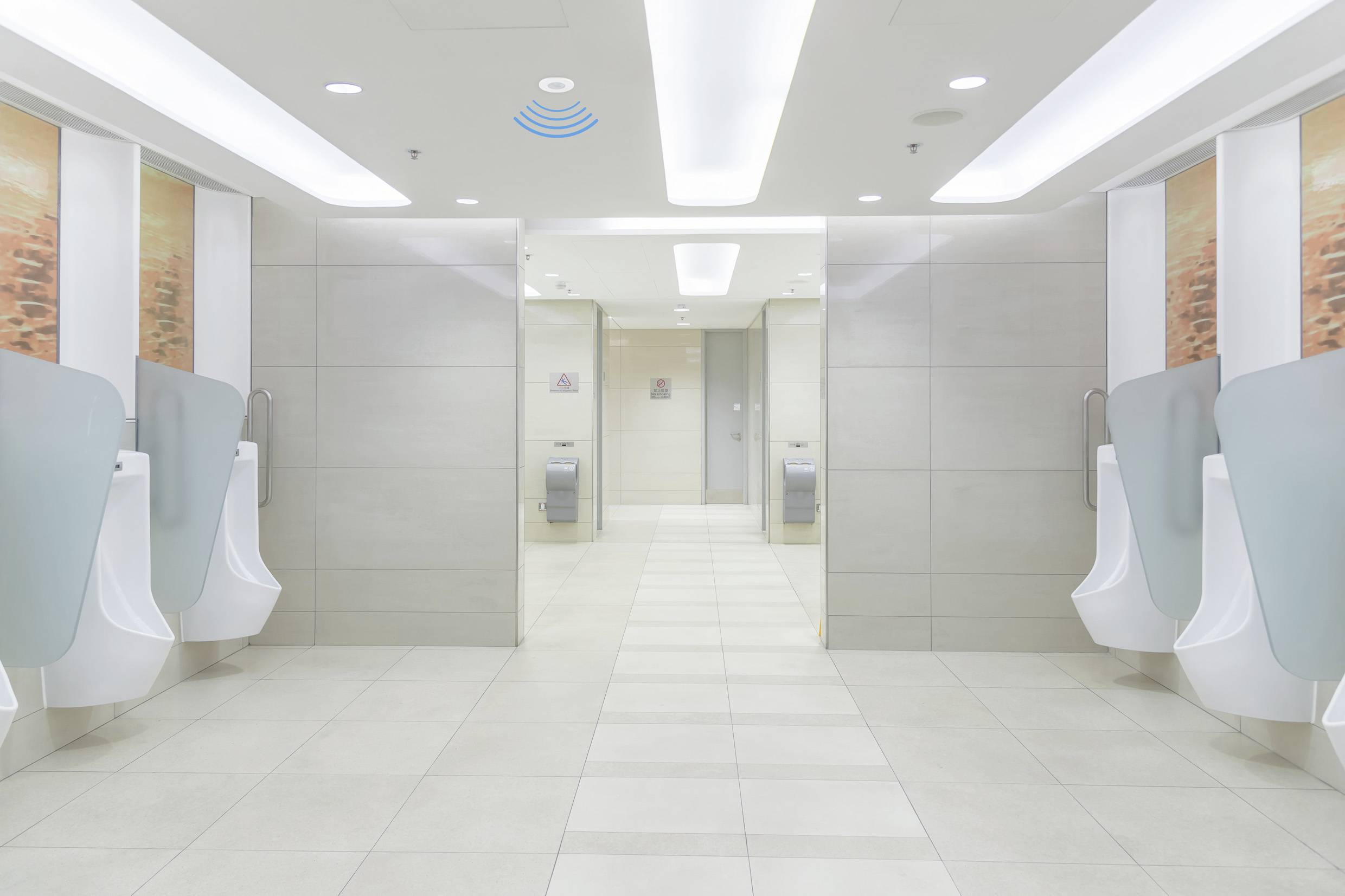

A vacant, bright corridor in a public lavatory with urinals along both walls and bins located at the rear of the space.

Modern house with glass walls and a pool in the foreground at sunset, minimalist architecture with an open terrace.

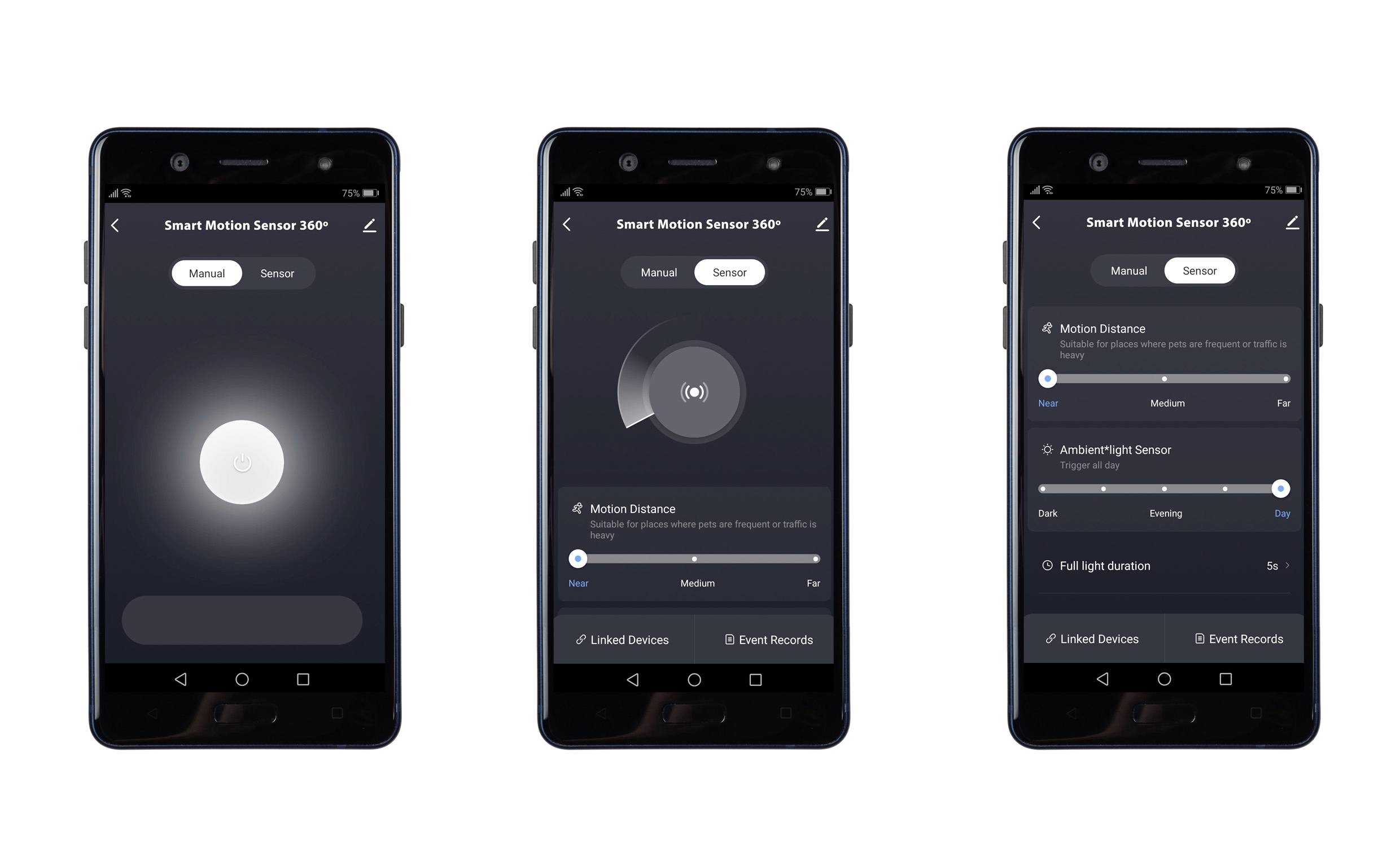

Three smartphone screens display the user interface of a smart motion sensor. Options for adjusting sensitivity and operating modes.

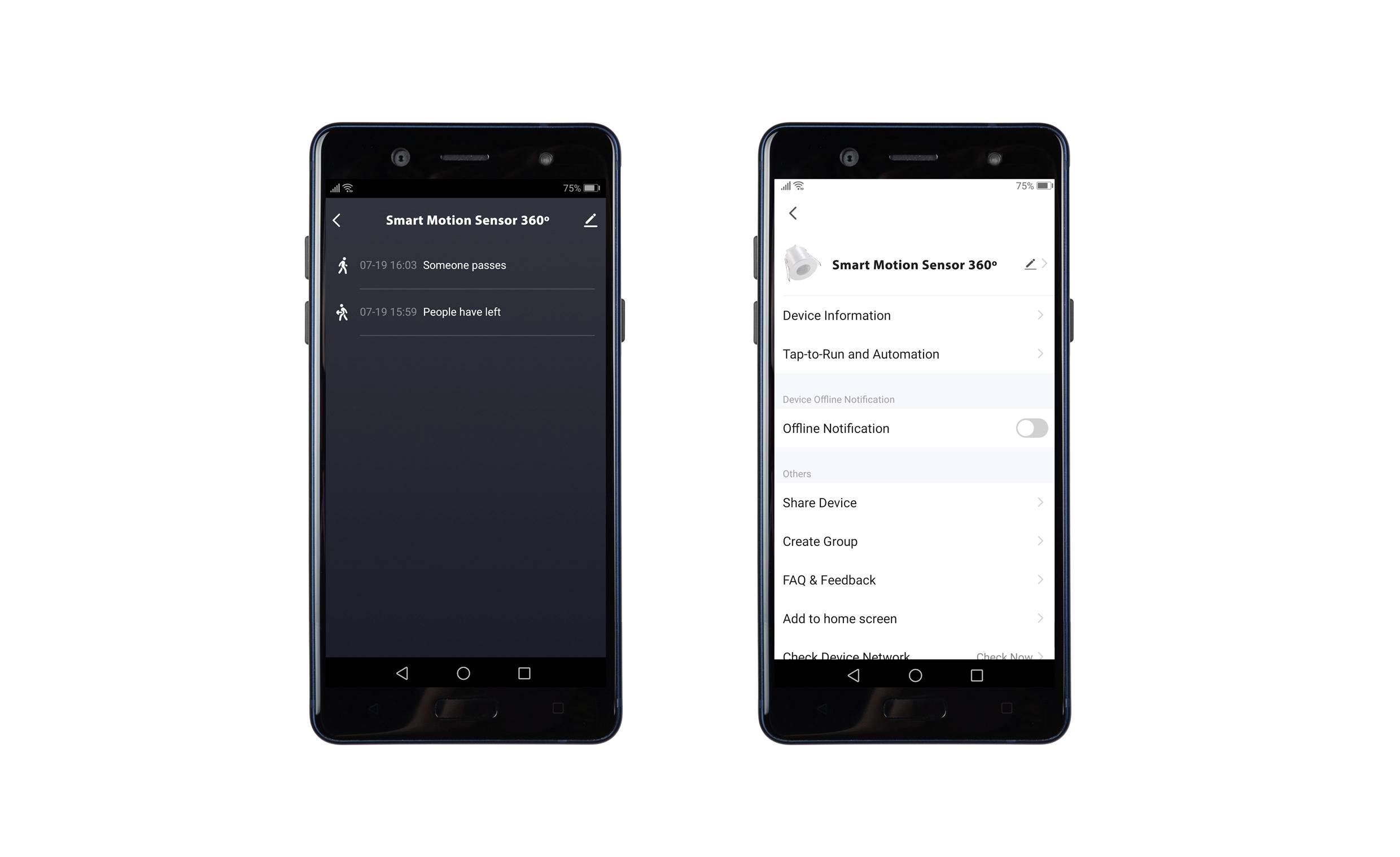

Two smartphones display the configuration options for a 'Smart Motion Sensor 360°'. Left display: Movements detected. Right display: Device settings.

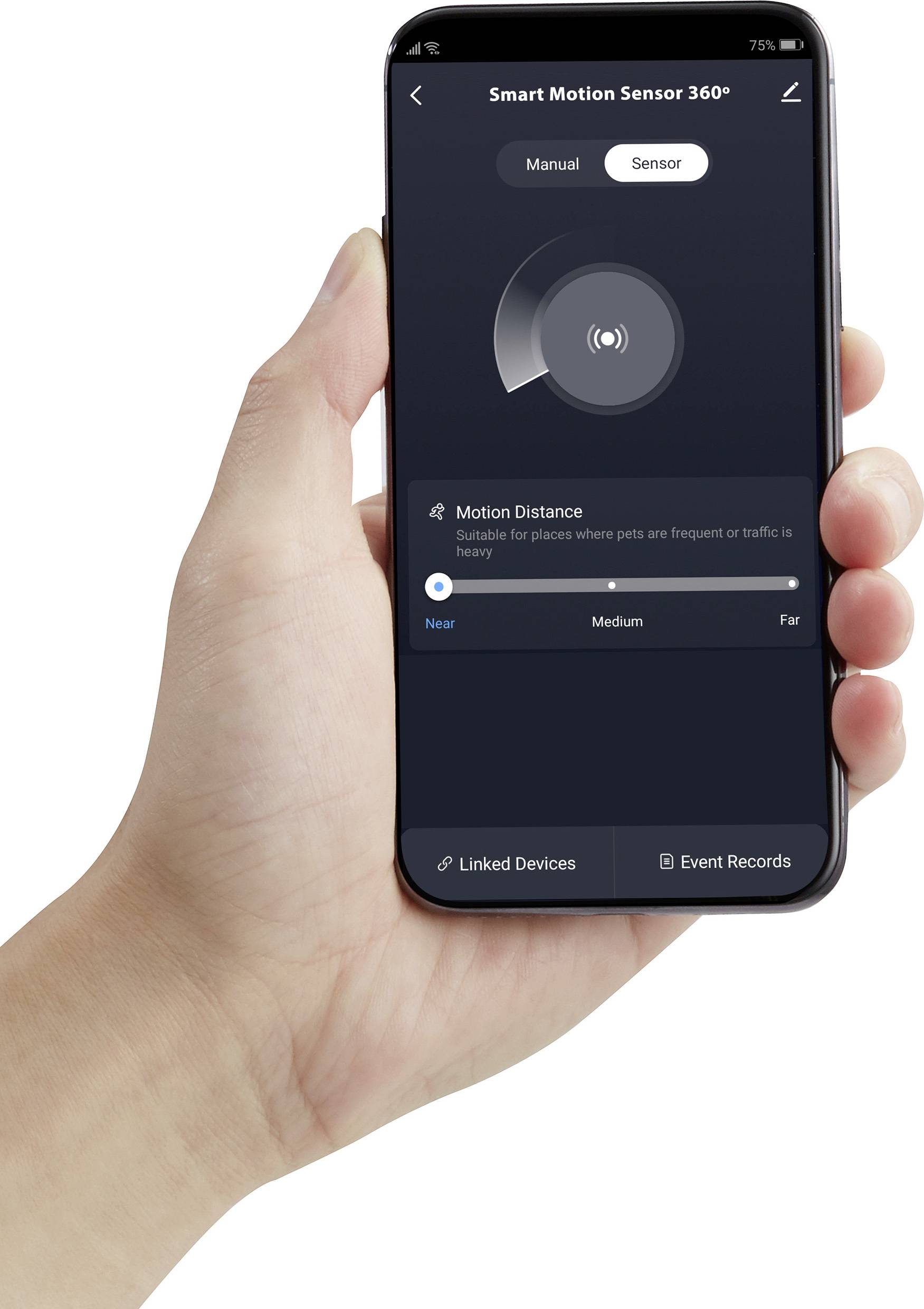

'Smart Motion Sensor 360°' app screen on smartphone, showing sensor status and 'Motion Distance' setting with options 'Near', 'Medium', 'Far'.

'Shopping centre, hotel, school, office: surveillance facilities in various environments.'

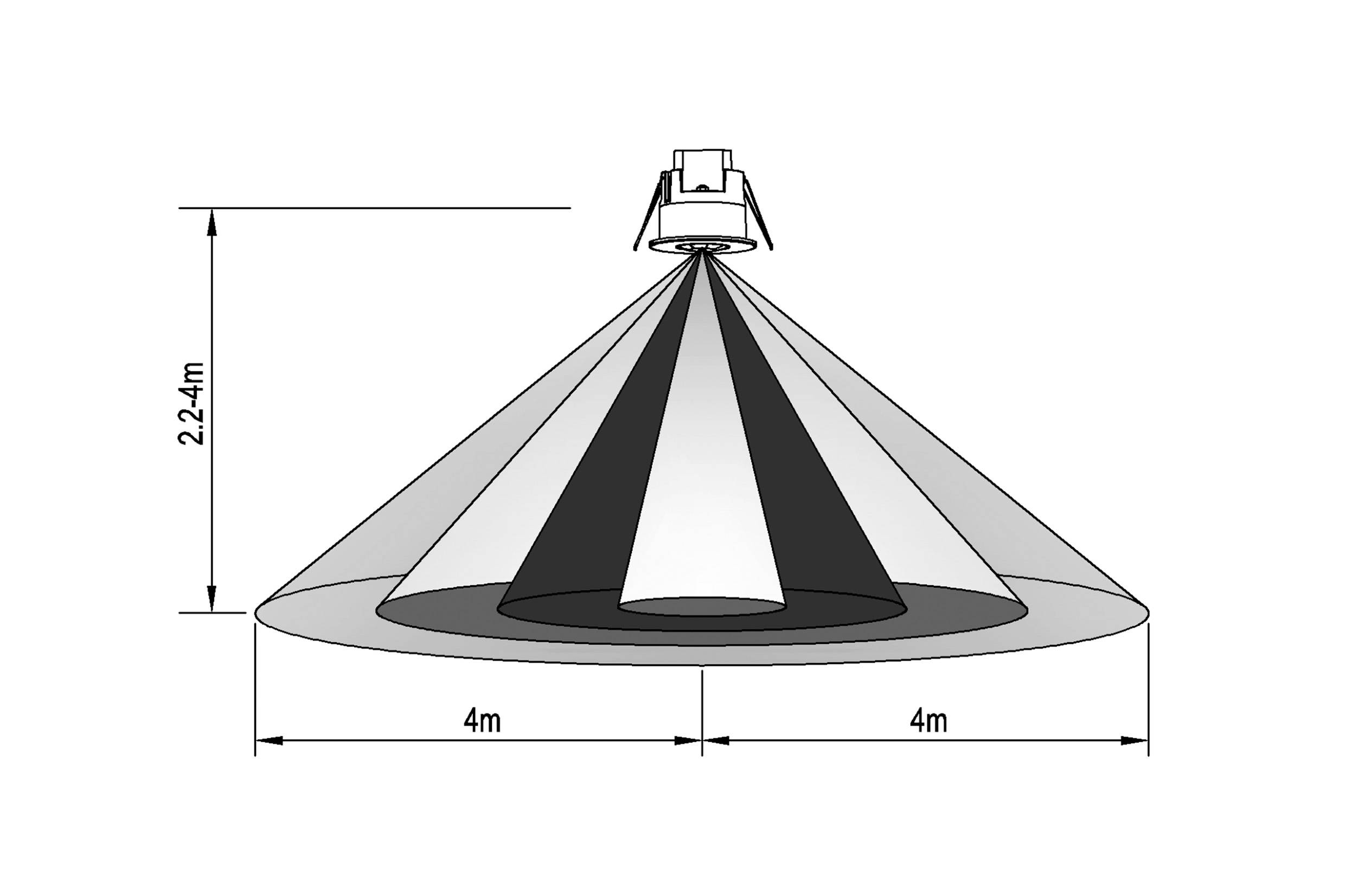

'Diagram shows the light cone of a projector. Height 2.4 m, diameter at base 8 m, symmetrical illumination depicted.'

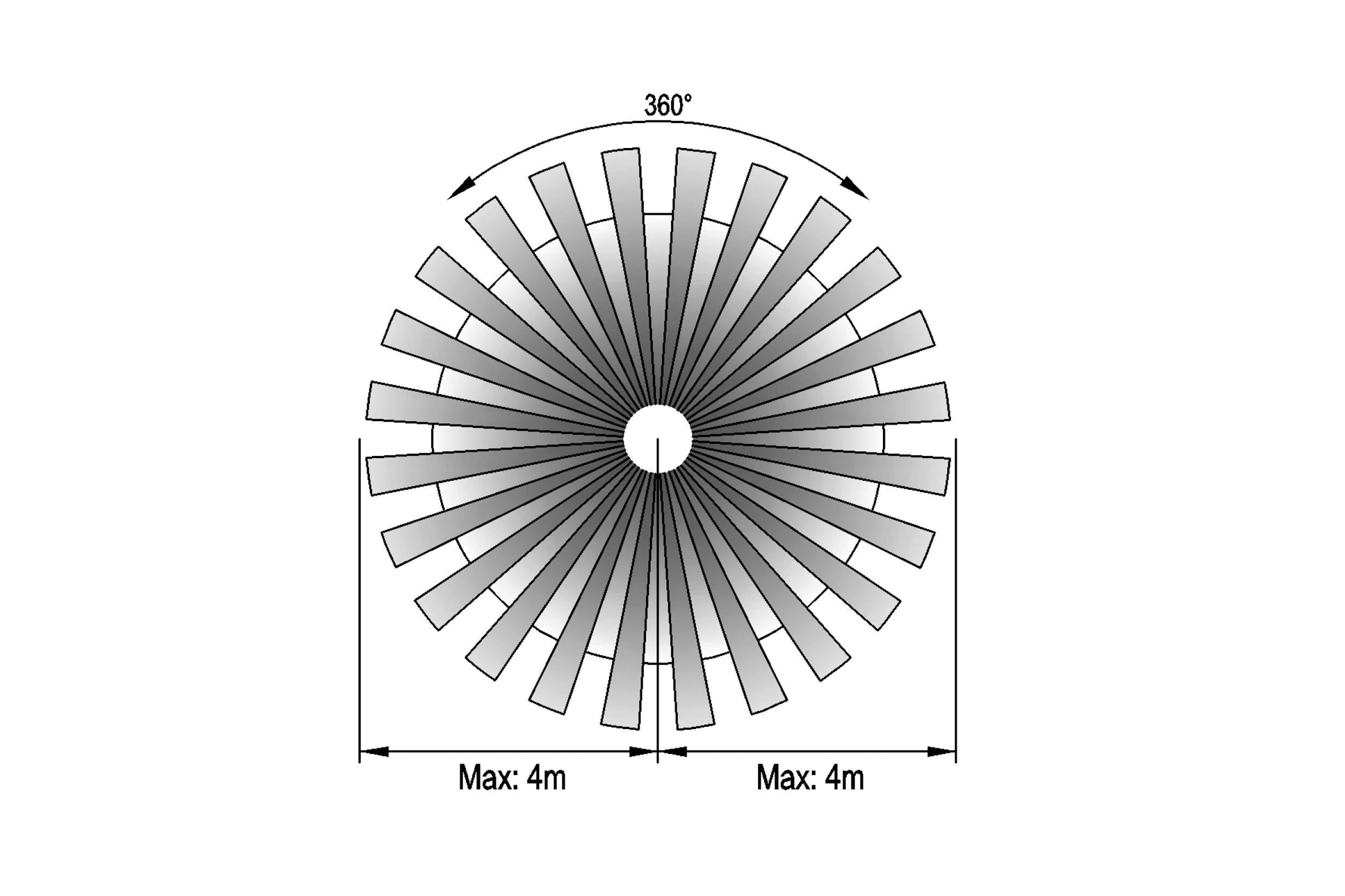

Diagram of a circular object with 24 equally distributed segments. At the centre '360°' and diameter details 'Max: 4m'.

1/12

Our service for you

Fast track dispatch on Fri, 11 Sep

99 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Ceiling-mounted PIR motion sensor, TUYA

Switches up to 1200W
Switch lights on/off remotely via mobile app
Easy configuration via mobile app

Technical specifications

Detection range: Near (50%), Medium (75%), Far (100%) (selection)Detection distance: Max. 8 m (<24 °C)Time delay: 5 s - 60 min (adjustable) Ambient light: Darkness (5LUX), 10LUX, Evening (50LUX), 150LUX, Day (2000LUX) (adjustable)Installation height 2.2 - 4 m.Wi-Fi frequency: 2.4 GHz Wi-Fi standard: IEEE 802.11 b/g/n.

Product type: Ceiling-mount motion detector

Detection angle: 360°

: 8 m

Used at: Indoors
Outdoors

Mounting type: Ceiling
Recess-mount

Operating voltage: 230 V AC

Contact type: Relay

Switching capacity: 1200 W

Switching capacity (energy saving bulbs): 300 W

Switching capacity (light bulbs): 1200 W

Switching capacity (LED): 300 W

Factory colour: White

: IP65

Height: 69 mm

(Ø): 76 mm

Dim: (Ø x H) 76 mm x 69 mm

Weight: 105 g

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2625953 Sygonix SY-5251906 Ceiling, Recess-mount Ceiling-mount motion detector 360 ° Relay White IP65

Warranty Terms

Warranty Terms 2625953 Sygonix SY-5251906 Ceiling, Recess-mount Ceiling-mount motion detector 360 ° Relay White IP65

Description

With the clever "all-round detection" it does not matter from which direction you enter the detection range of this PIR detector. Within up to 8 m and a detection angle of 360°, the connected lamp is always reliably switched on, whereby the lighting duration can be set individually. This motion detector is therefore ideal for corridors and stairwells, but also for outdoor use.
