Name: Sygonix SY-6733024 Wall, Surface-mount PIR motion detector 360 °, 180 ° Relay White IP44
Brand: Sygonix
SKU: 3366512
Availability: InStock

Wall-mounted motion sensor with white casing and curved sensor surface, suitable for automatic lighting control.

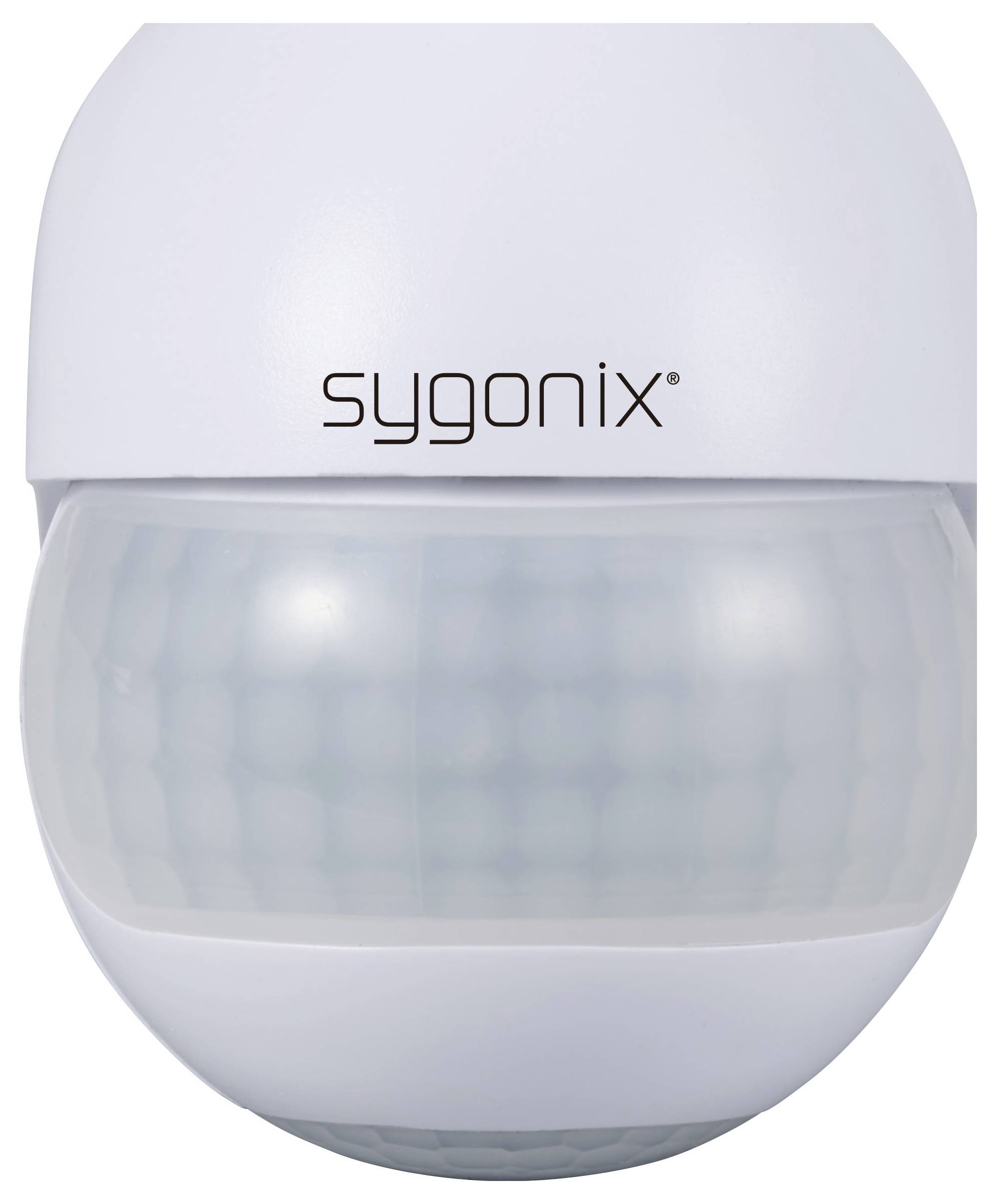

A white Sygonix motion sensor with a rounded design.

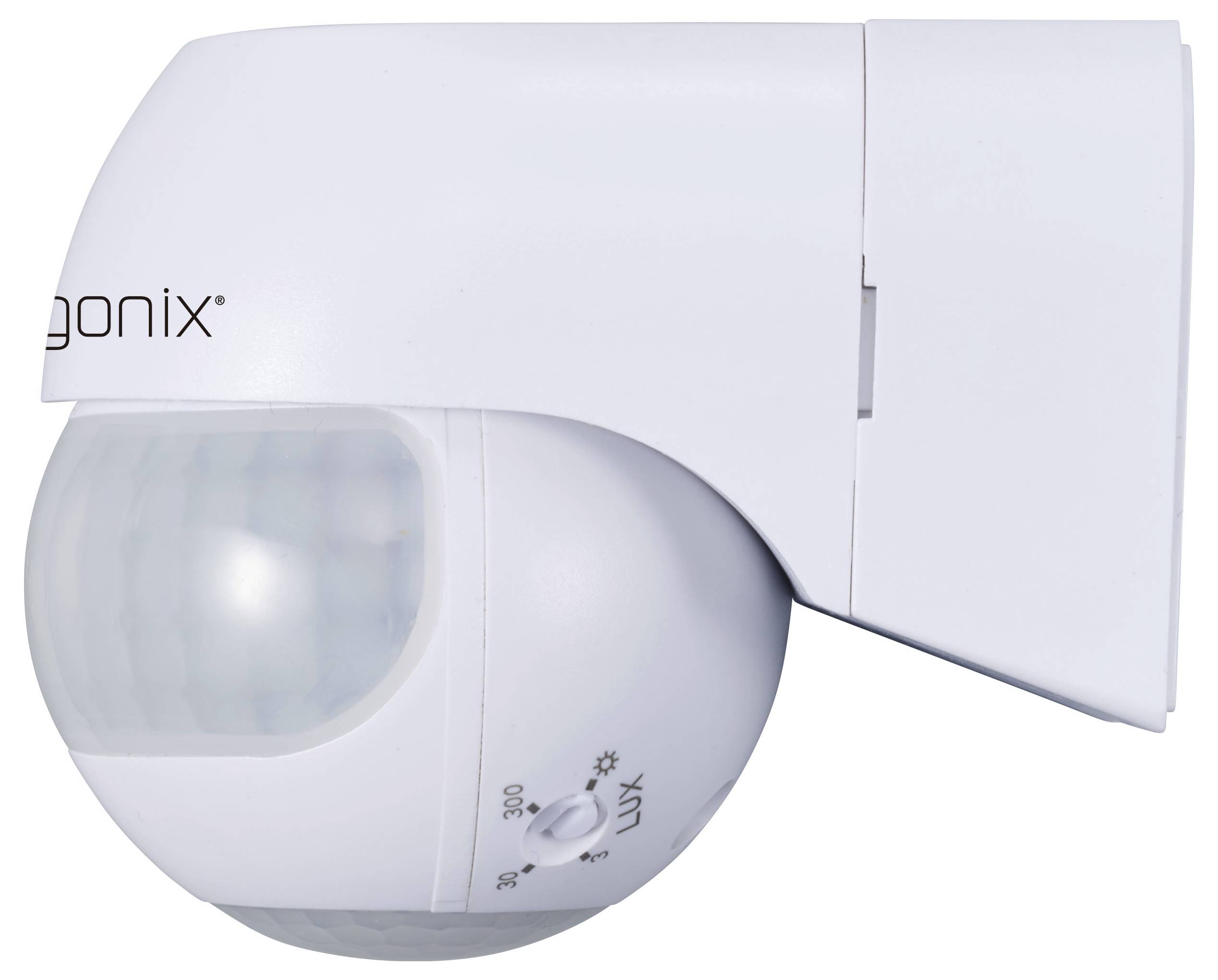

A white motion sensor with a spherical sensor mounted on a wall bracket.

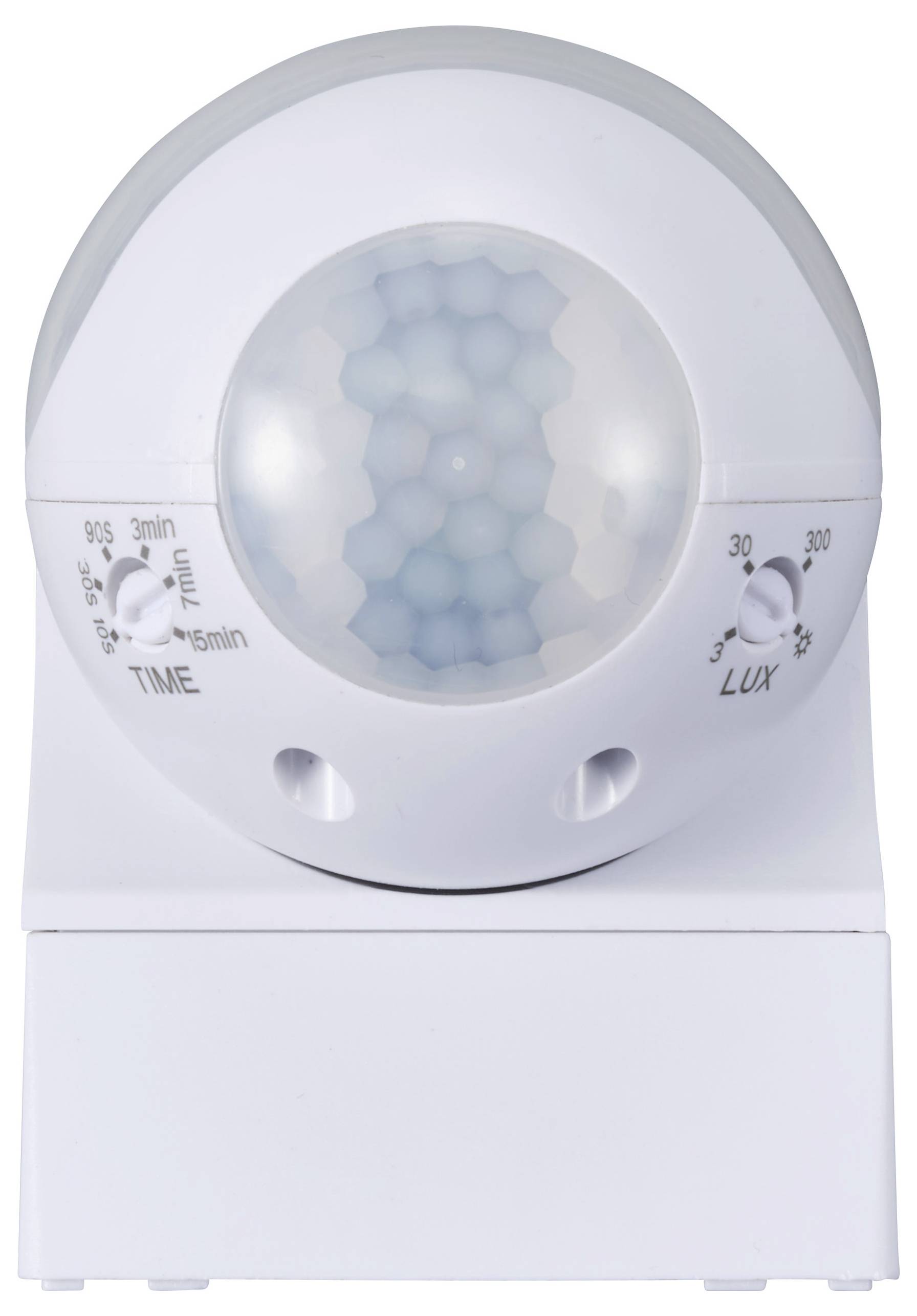

A white motion sensor with adjustable settings for time and light sensitivity, identifiable by two rotary controls on the front.

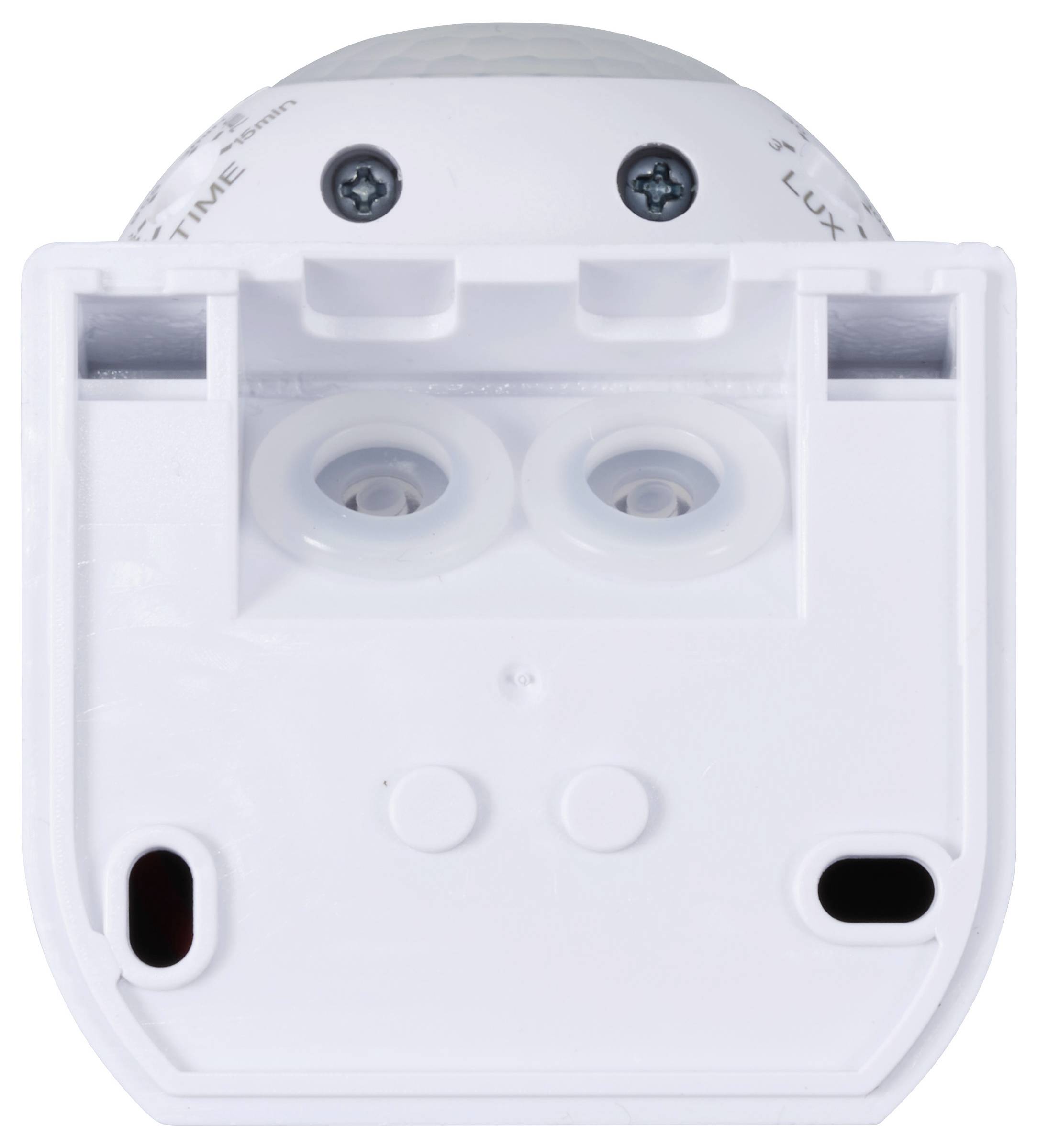

A white motion sensor with two lenses, suitable for detecting movement in a room. Two screws are visible at the top.

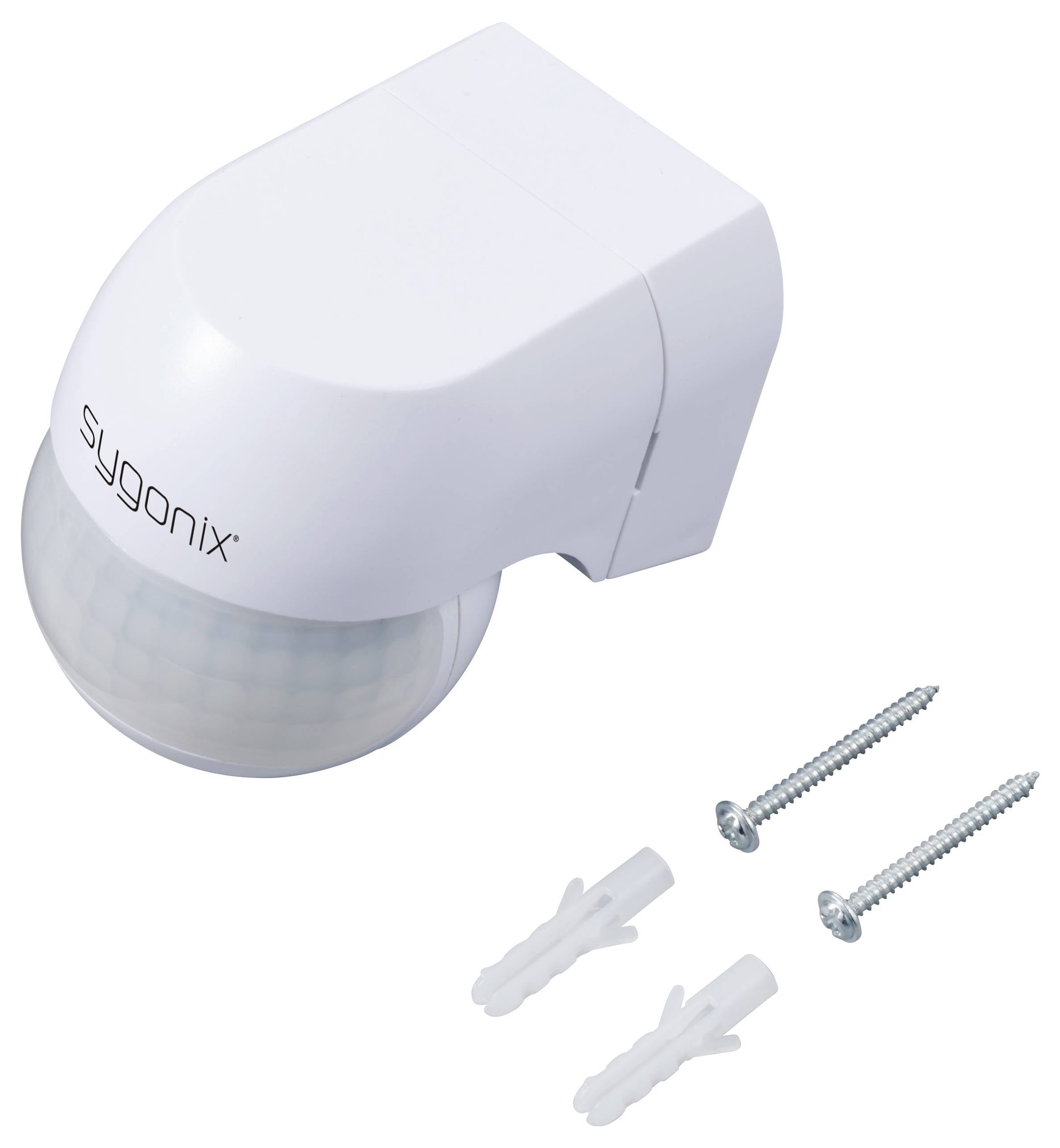

A white motion sensor with 'sygonix' written on it, two screws and wall plugs beside it. Ideal for wall mounting to detect movement.

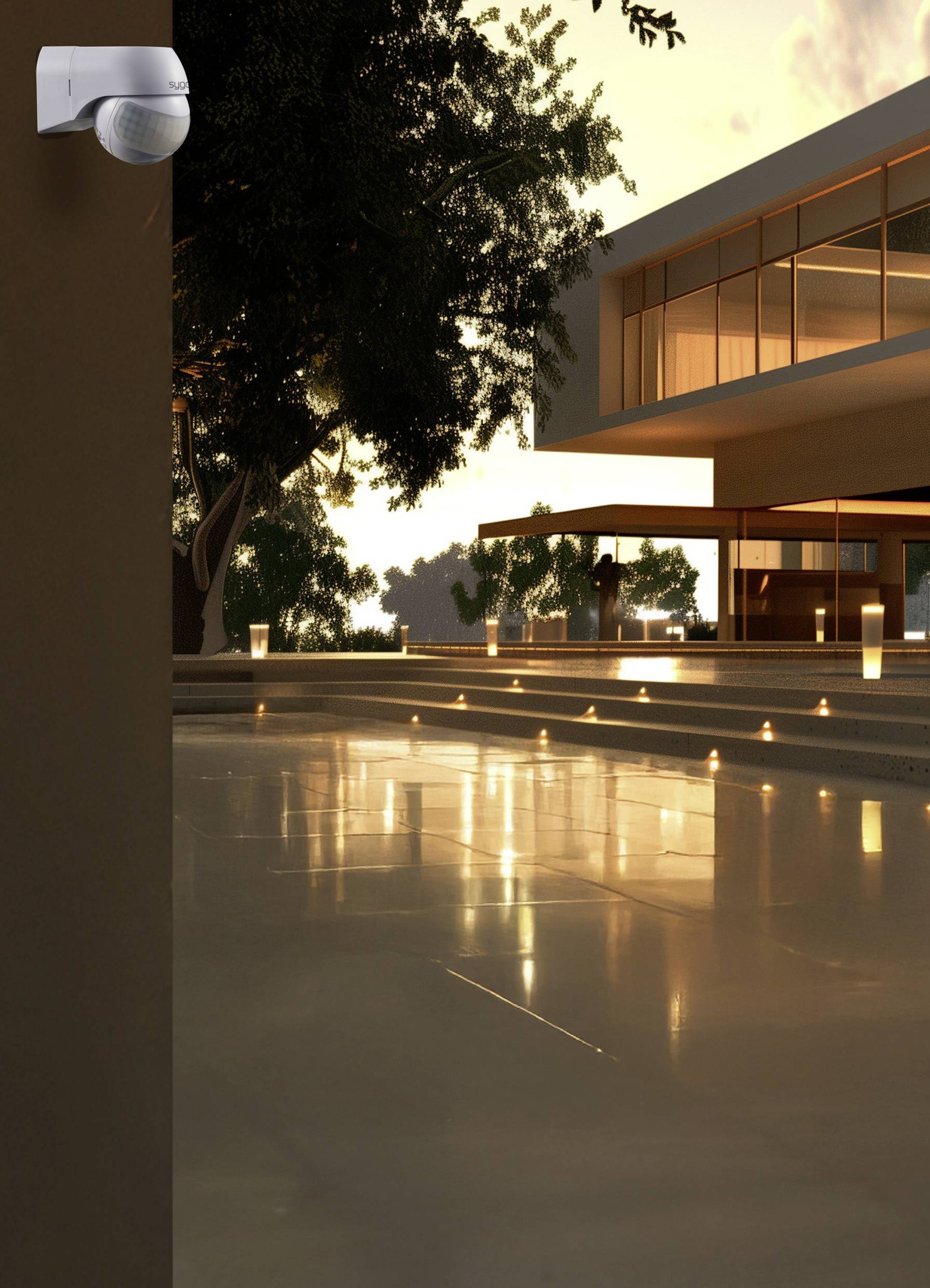

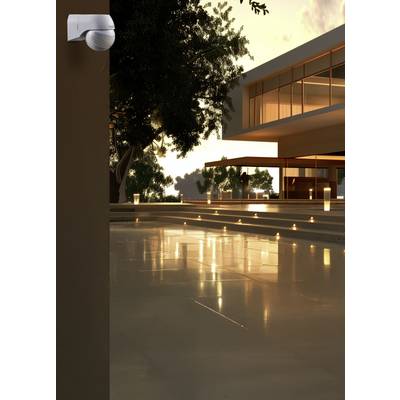

Modern Villa with Large Pool at Sunset, Surrounded by Trees and Elegant Lighting.

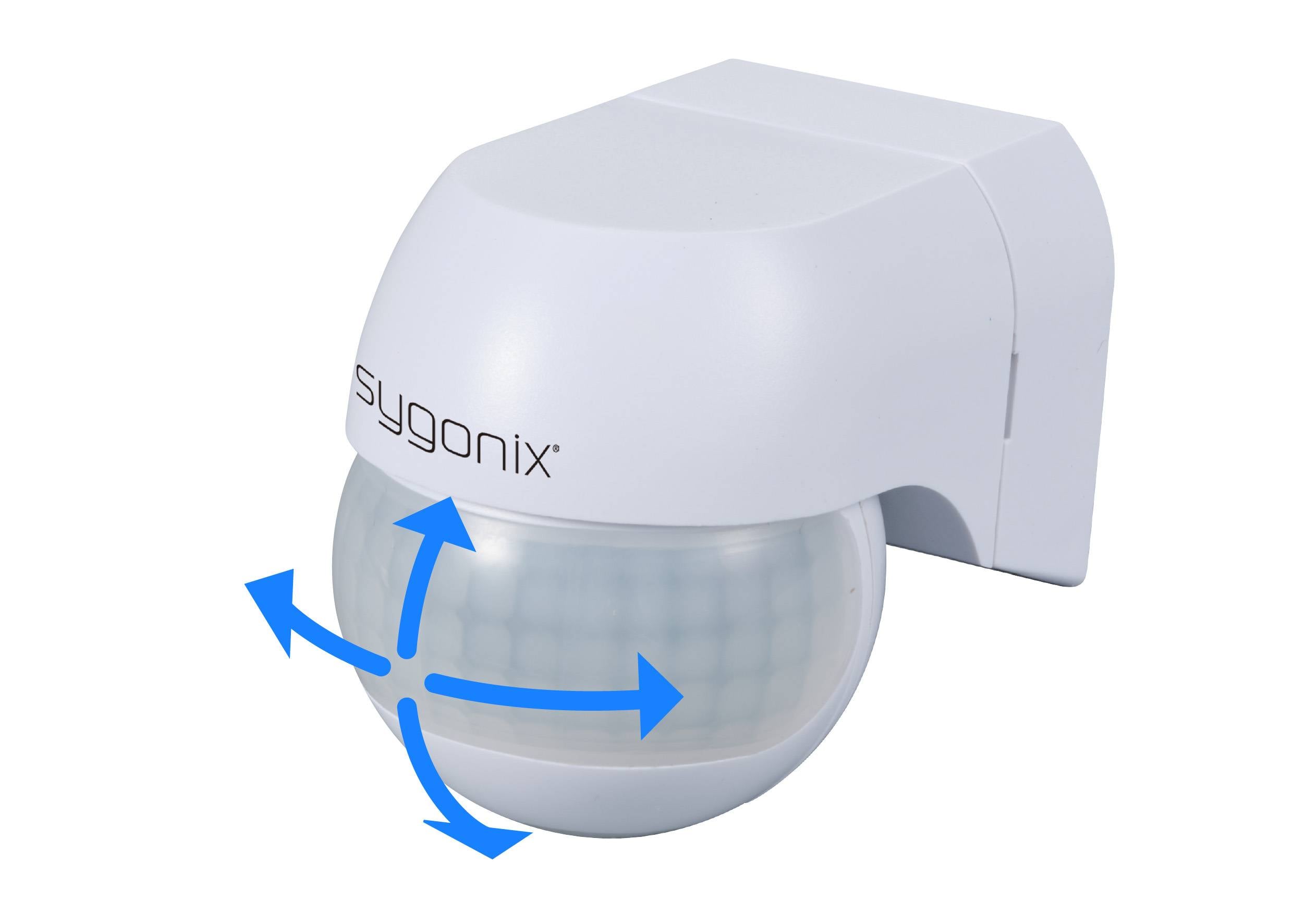

Sygonix motion sensor, displaying arrows in four directions indicating the detection areas.

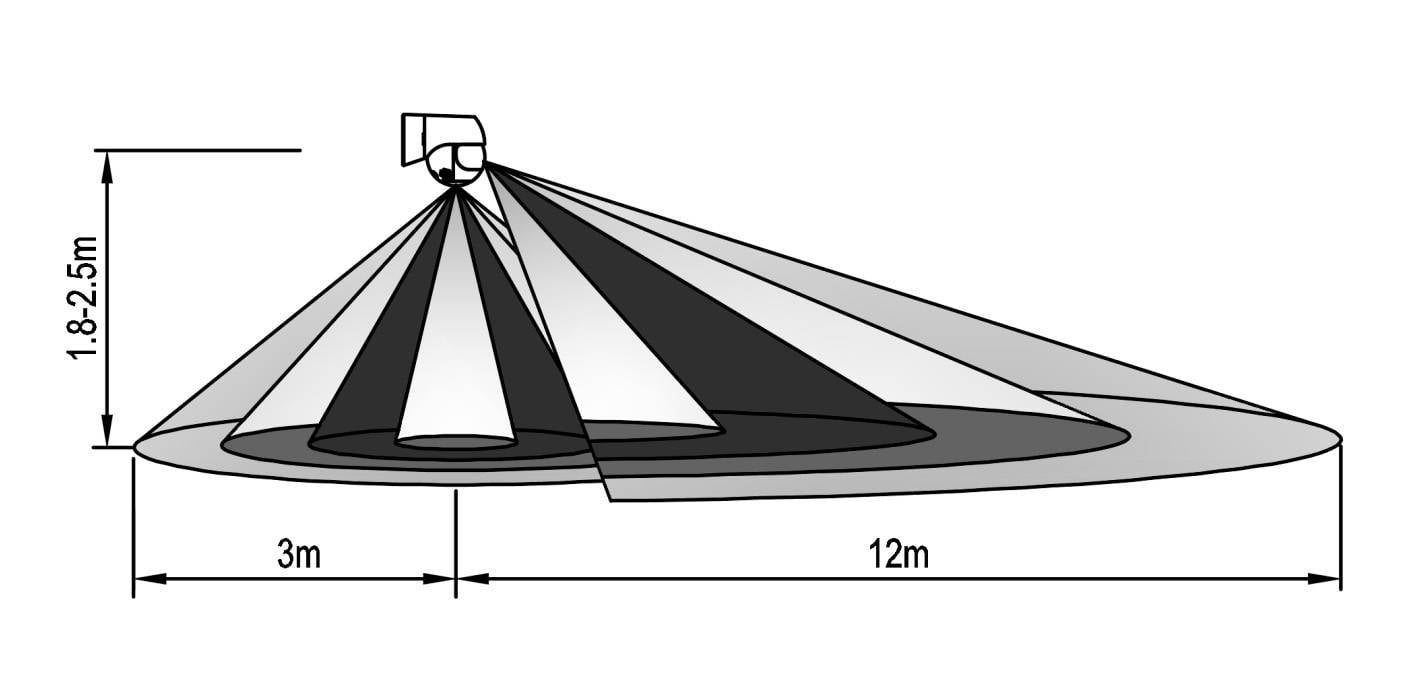

Diagram of a Motion Sensor: Detection Range Horizontal 12 m, Vertical 3 m, Installation Height 1.8-2.5 m.

1/9

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

200 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Surface-mounted PIR motion sensor, 180/360 degrees, IP44, 1200W

Infrared motion sensor
Dual sensor for larger detection area
Horizontally and vertically rotatable sensor head

Our service for you

Technical specifications

Product type: PIR motion detector

Detection angle: 360°
180°

: 12 m

Used at: Indoors
Outdoors

Mounting type: Wall
Surface-mount

Operating voltage: 230 V AC

Contact type: Relay

Switching capacity (energy saving bulbs): 600 W

Switching capacity (light bulbs): 1200 W

Switching capacity (LED): 600 W

Twilight settings: 3 -2000 lx

Time settings: 10 s - 15 min

Factory colour: White

: IP44

Length: 80 mm

Width: 56 mm

Height: 68 mm

Dim: (L x W x H) 80 x 56 x 68 mm

Weight: 97 g

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3366512 Sygonix SY-6733024 Wall, Surface-mount PIR motion detector 360 °, 180 ° Relay White IP44

Warranty Terms

Warranty Terms 3366512 Sygonix SY-6733024 Wall, Surface-mount PIR motion detector 360 °, 180 ° Relay White IP44

Description

The motion detector is used for detecting motion in indoor and outdoor areas. It can be installed easily in entrance areas, driveways or in staircases. It is protected according to IP44.
To illuminate certain points optimally, connect the motion detector to a light, for example. The lamp is switched on or off automatically via the built-in PIR sensor. The sensors respond to temperature changes within the detection range. This is the case, for example, if a person or an animal with a temperature different from the ambient temperature enters the detection area.
