Sygonix SY-6733032 Ceiling, Flush mount Ceiling-mount motion detector 360 ° Relay White IP54

A white motion sensor with a circular cover and metal brackets, suitable for ceiling mounting in indoor spaces.

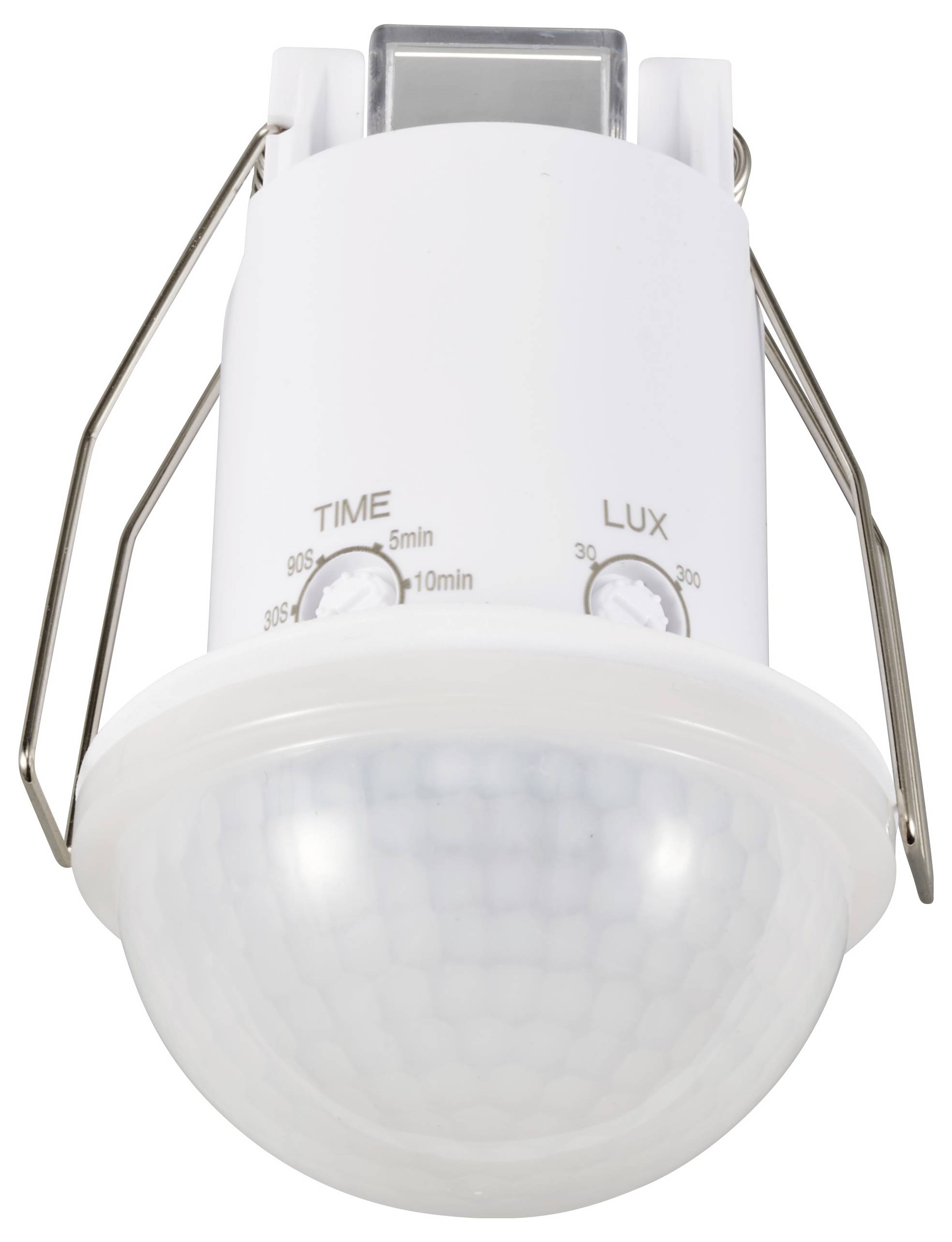

Motion sensor in white casing with two adjustment dials for 'TIME' and 'LUX' on the top of the device.

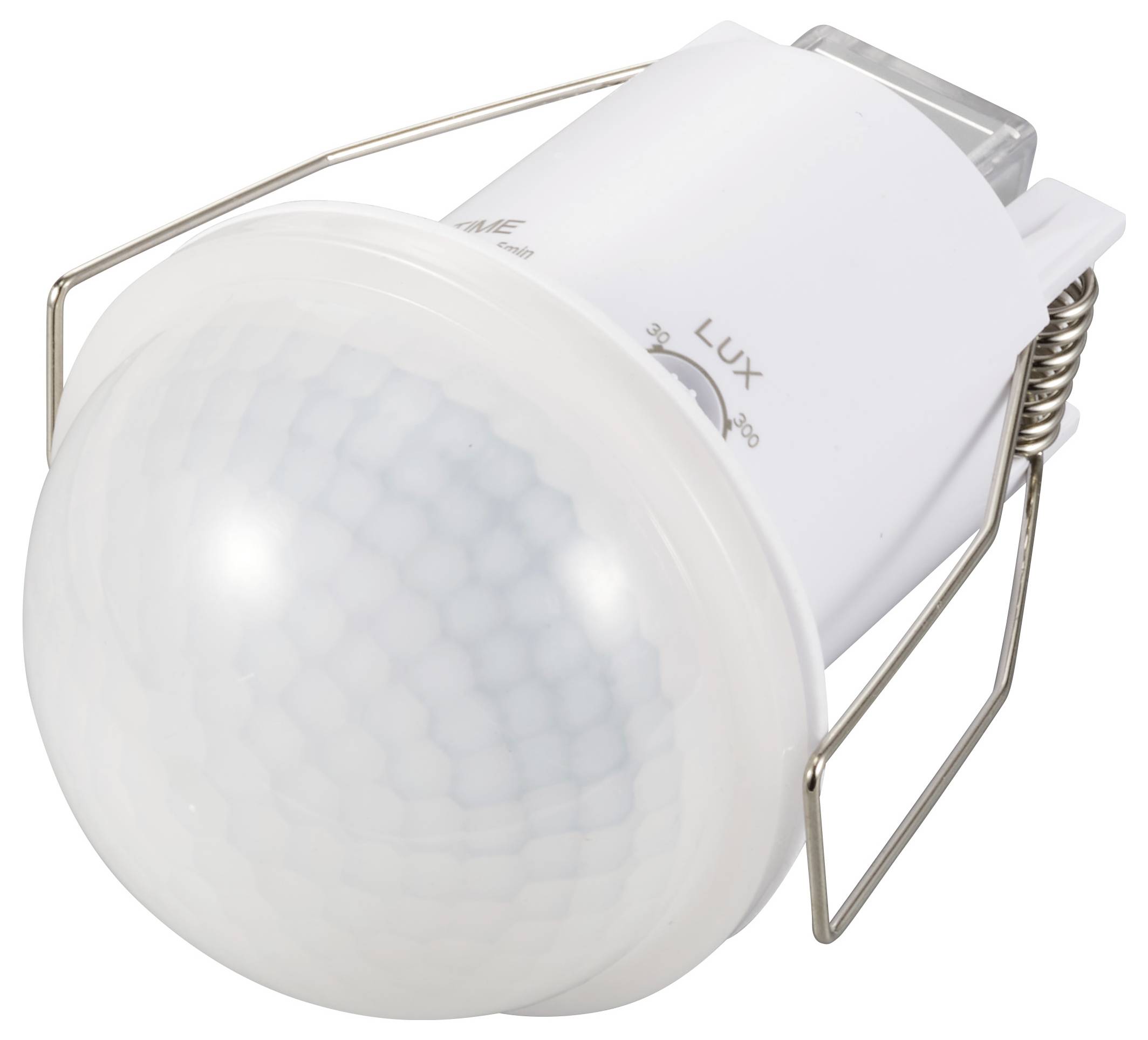

A white motion sensor with metal brackets for mounting, suitable for detecting movement to enable automatic light control.

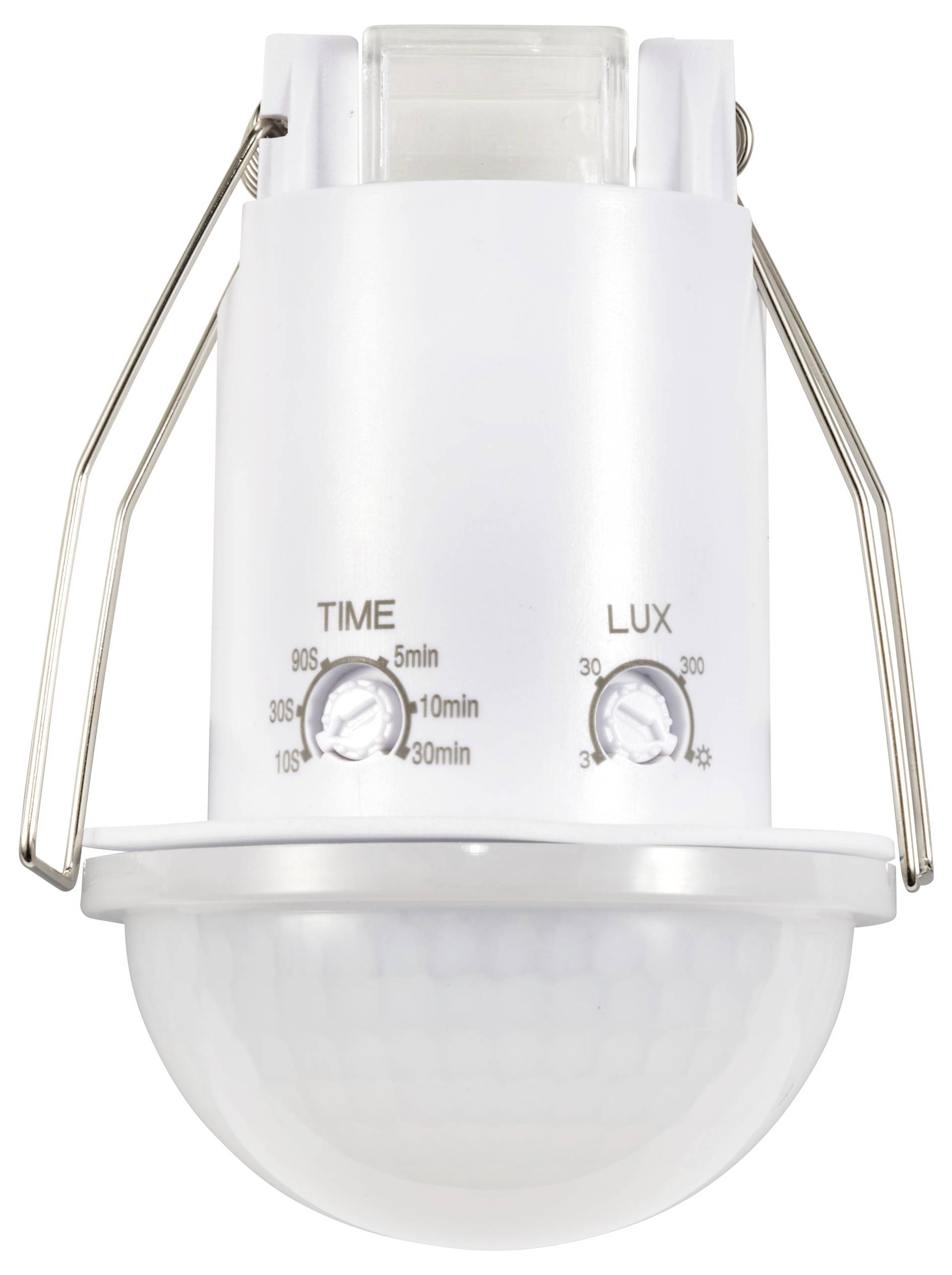

White ceiling detector with mounting brackets, two clearly visible rotary knobs for 'TIME' and 'LUX'. Upper section rectangular, lower section dome-shaped.

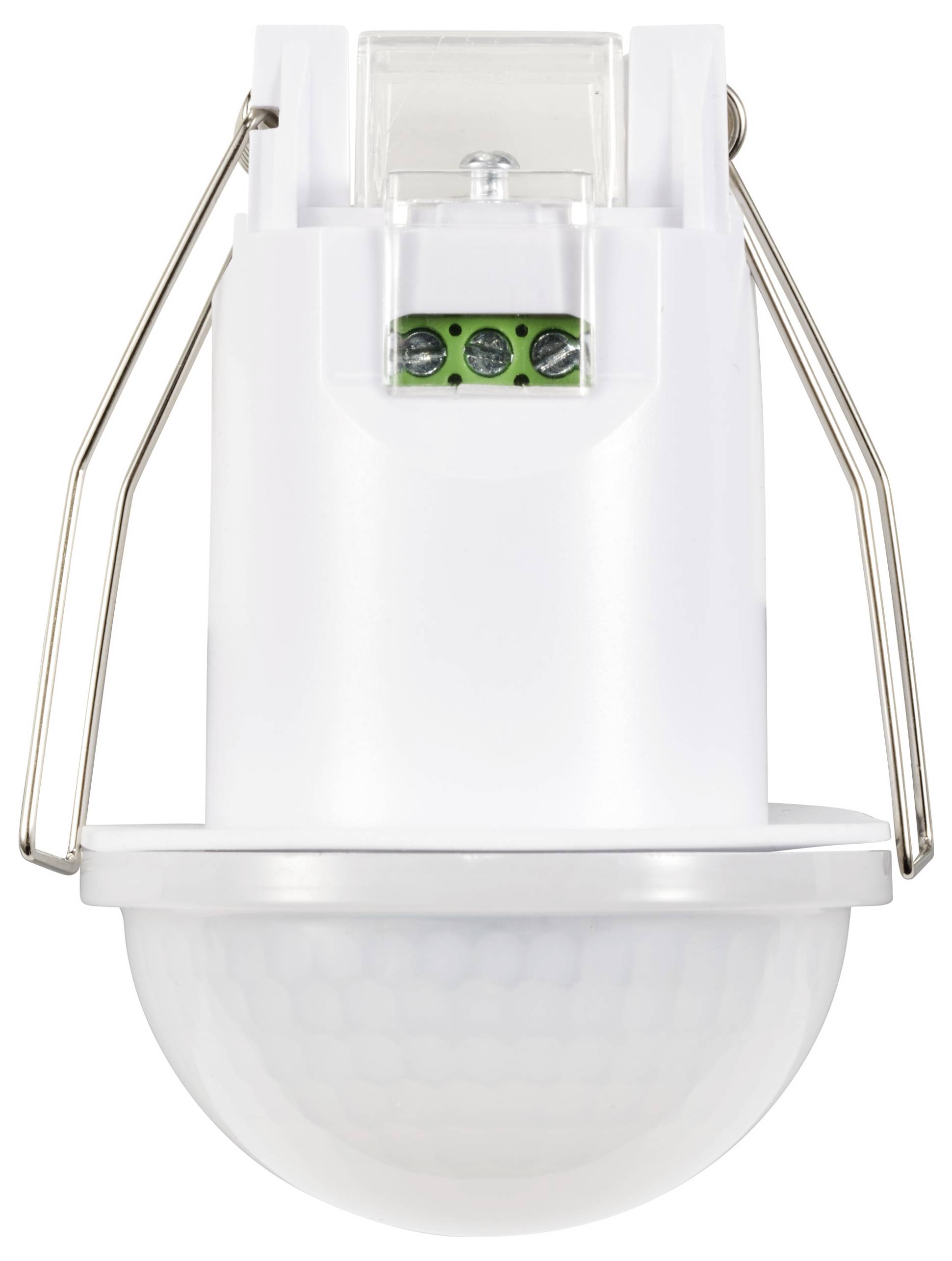

A round, white infrared motion sensor with metal brackets, suitable for ceiling mounting, designed for detecting movement in indoor spaces.

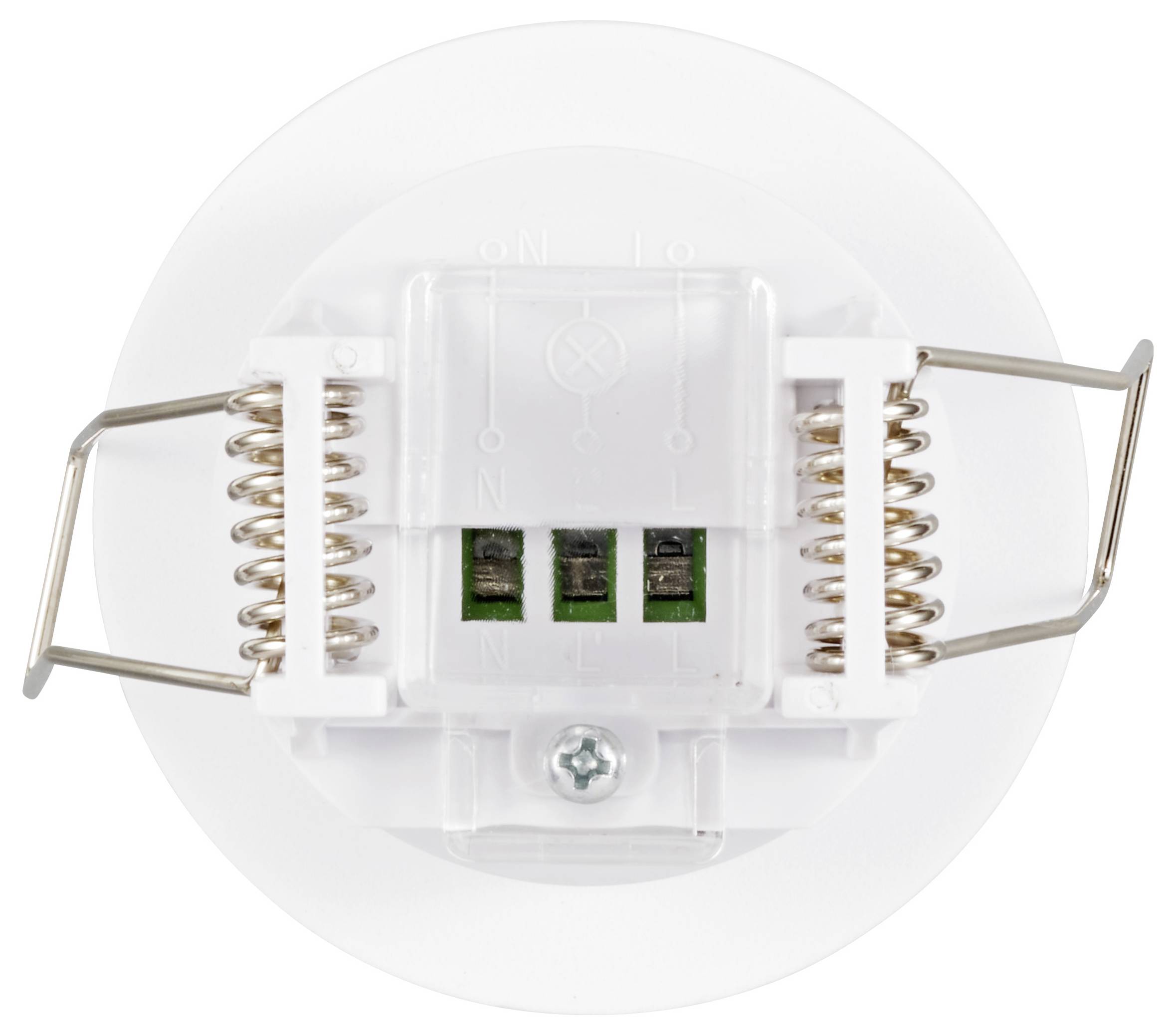

Rear view of a round ceiling spotlight with metal springs and connection terminals, labelled 'L', 'N', and 'E'.
Large, modern bathroom with a freestanding bathtub, walk-in shower with glass walls, and two washbasins. Natural light through roof windows.

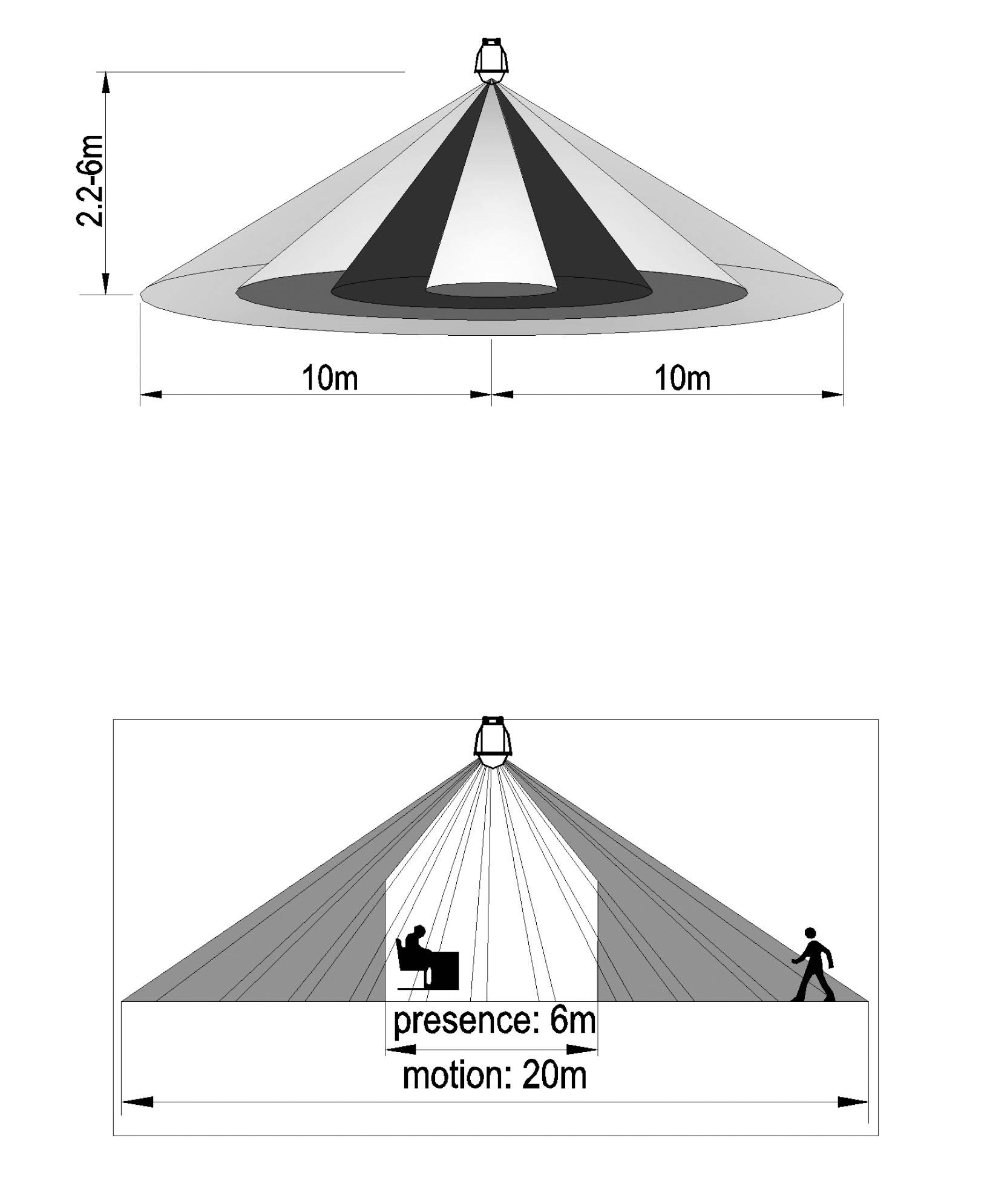

Diagram shows sensor coverage: Top view with 10m diameter, side presence range 6m and motion range 20m.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
457 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Flush-mounted PIR motion sensor, 360 degrees, 62mm, IP54, 1200W

  • Infrared motion sensor
  • Allows precise detection of movement within 6 metres
  • Detection distance: max. 20m Ø

Our service for you

Technical specifications

Product type

Ceiling-mount motion detector

Detection angle

360°

20 m

Used at

Indoors

Outdoors

Mounting type

Ceiling

Flush mount

Operating voltage

230 V AC

Contact type

Relay

Switching capacity (energy saving bulbs)

600 W

Switching capacity (light bulbs)

1200 W

Switching capacity (LED)

600 W

Twilight settings

3 - 2000 lx

Time settings

10 s - 30 min

Factory colour

White

IP54

Height

92 mm

(Ø)

62 mm

Dim

(Ø x H) 62 mm x 92 mm

Weight

70 g

Plastic free packaging

Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3366516 Sygonix SY-6733032 Ceiling, Flush mount Ceiling-mount motion detector 360 ° Relay White IP54

Warranty Terms

Warranty Terms 3366516 Sygonix SY-6733032 Ceiling, Flush mount Ceiling-mount motion detector 360 ° Relay White IP54

Description

Allows accurate detection of movements.

This text is machine translated.

Features

  • Switches up to 1200W
  • For incandescent lamps, energy-saving lamps and LED lights
  • Coverage angle: 360º
  • IP54

Scope of delivery

  • Sensor
  • User manual
