TAMS Elektronik 53-04097-01 LC-NG-09 Lighting controller Train station Green 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 24.99 / piece)
€ 24.99
incl. VAT
Only 10 Piece(s) available
Highlights & Details

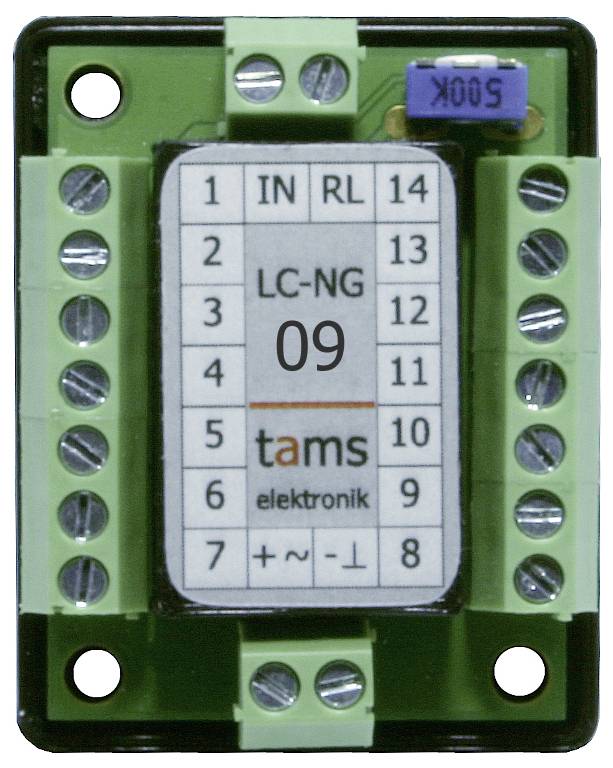

TAMS Elektronik LC-NG-09 "Railway station" lighting control
- Fluorescent tubes of the station canopy, warning lights of luggage vehicles and lighting of the station building and in the signal tower
Technical specifications
- 14 outputs (max. 200 mA each) for the connection of incandescent lamps or LEDs (via series resistors), of which
- 7 outputs for "fluorescent lamps" (e.g. for the platform roof), which flicker briefly when switched on before they reach their final brightness. One of the fluorescent lamps has a defect and flickers accordingly.
- 2 outputs for blinking lights (e.g. for luggage carts or cleaning vehicles)
- 5 outputs for the lighting in the station building or in the signal box
- Maximal total current: 1,000 mA
- Use of the switching input: Start / end of the process
- Settings on the trim potentiometer: Speed of the switching sequence at the outputs for further illumination. With this, the outputs can be used either for connecting lighting in the station building or for simulating the displays in the signal tower.
- 12-18 volt alternating voltage or 10-22 VDC
- Size
Universal
- Product type
Lighting controller
- Functions
Train station
- Type
Accessories
- Factory colour
Green
- Length
39 mm
- Width
31 mm
- Height
13 mm
- Dim
(L x W x H) 39 x 31 x 13 mm
- Age category
15 years and over
- Manufacturer part #
53-04097-01
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775690 TAMS Elektronik 53-04097-01 LC-NG-09 Lighting controller Train station Green 1 pc(s)
Description
For controlling "fluorescent lamps" including a defective lamp (e.g. for platform roofing), connecting options for warning lights (e.g. for luggage trolleys or cleaning vehicles), further outputs for lighting in the station buildings or in the signal tower.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Light Computer Next Generation LC-NG-9, design: Finished device in the housing
Hints
Lamps, LEDs and speakers are not included.
