TAMS Elektronik 53-04127-01 LC-NG-12 Lighting controller Event Green 1 pc(s)

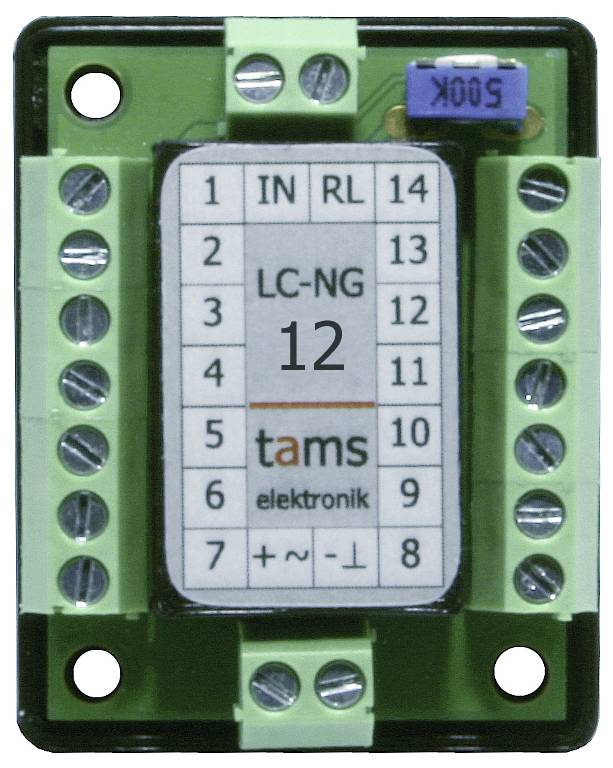

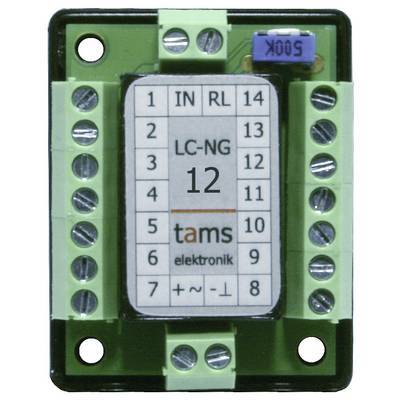

Electronic relay module labeled 'LC-NG 12' with screw terminals and a blue 500K adjustment trimmer.
EAN:
Part number:
Item no:
Fast track dispatch on Tue 10 Nov
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

TAMS Elektronik LC-NG-12 "event" lighting control

  • Photographers' flash lights ("paparazzi"), showy light and stroboscope at an event

Technical specifications

  • 14 outputs (max. 200 mA each) for the connection of incandescent lamps or LEDs (via series resistors), of which
  • 6 outputs for the flash lights of the photographers ("paparazzi"), which are occasionally triggered and produce flash thunderstorms at irregular intervals
  • 6 outputs for show light, which generate light effects and spotlights e.g. on the stage or on the catwalk
  • 2 outputs for stroboscopes
  • Maximal total current: 1,000 mA
  • Using the switching input: Switching on the stroboscope
  • Settings at the trim potentiometer: Speed of the switching sequence at the outputs for show light
  • 12-18 volt alternating voltage or 10-22 VDC
Size

Universal

Product type

Lighting controller

Functions

Event

Type

Accessories

Factory colour

Green

Length

39 mm

Width

31 mm

Height

13 mm

Dim

(L x W x H) 39 x 31 x 13 mm

Age category

15 years and over

Manufacturer part #

53-04127-01

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3775693 TAMS Elektronik 53-04127-01 LC-NG-12 Lighting controller Event Green 1 pc(s)

Description

Simulation of various light effects at one event: Flash lights of the photographers ("paparazzi"), show light and stroboscope. Switching on the stroboscope automatically after a random long break or by a short mass pulse on the switch input.

This text is machine translated.

Scope of delivery

  • Light Computer Next Generation LC-NG-12, design: Finished device in the housing

Hints

Lamps and LEDs are not included in the delivery.
