TAMS Elektronik 53-04117-01 LC-NG-11 Lighting controller Flickering flames and candles Green 1 pc(s)

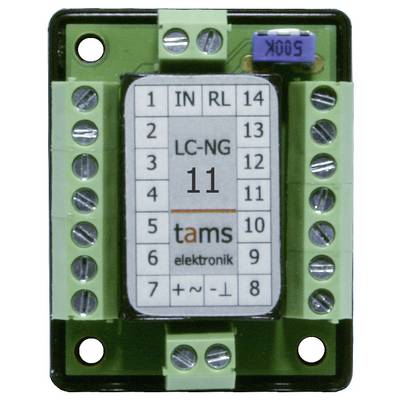

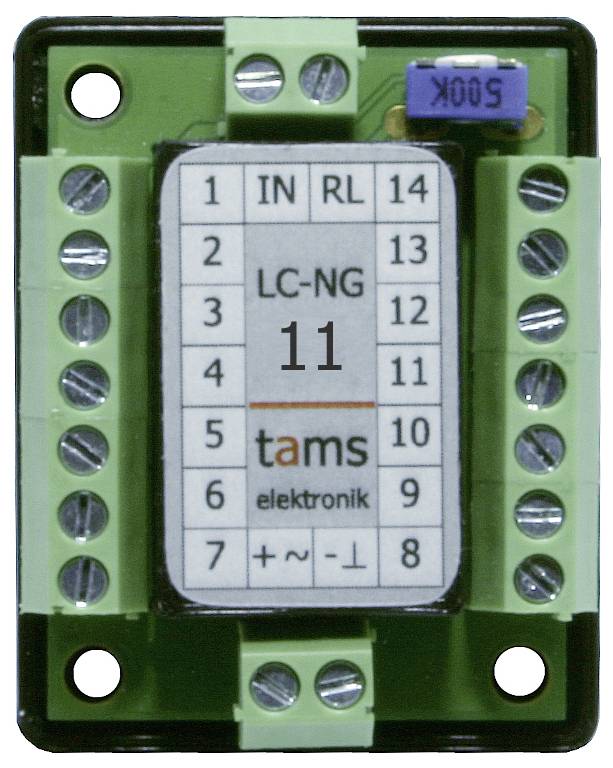

Close-up of a green electronic control module with screw terminals and label 'LC-NG 11 tams elektronik' and numbered pins 1-14.
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

TAMS Elektronik LC-NG-11 lighting control "Fire flicker & candles"

  • Typical flickering of open fires or candles

Technical specifications

  • 14 outputs (max. 200 mA each) for the connection of small bulbs or LEDs (via series resistors), which simulate open fire or candle light.
  • Maximal total current: 1,000 mA
  • Use of the switching input: In pairs switching the outputs on and off
  • Adjustment at the trim potentiometer: Length of the pauses between switching the output pairs on and off
  • 12-18 volt alternating voltage or 10-22 VDC
Size

Universal

Product type

Lighting controller

Functions

Flickering flames and candles

Type

Accessories

Factory colour

Green

Length

39 mm

Width

31 mm

Height

13 mm

Dim

(L x W x H) 39 x 31 x 13 mm

Age category

15 years and over

Manufacturer part #

53-04117-01

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3775692 TAMS Elektronik 53-04117-01 LC-NG-11 Lighting controller Flickering flames and candles Green 1 pc(s)

Description

Simulation of the typical flickering of open fires or candles at the exits. In pairs, the outputs are switched on to generate the effect of a charging fire. Switch off the outputs in pairs to simulate the burning of the fire.

This text is machine translated.

Scope of delivery

  • Light Computer Next Generation LC-NG-11, design: Finished device in the housing

Hints

Lamps, LEDs and speakers are not included.
