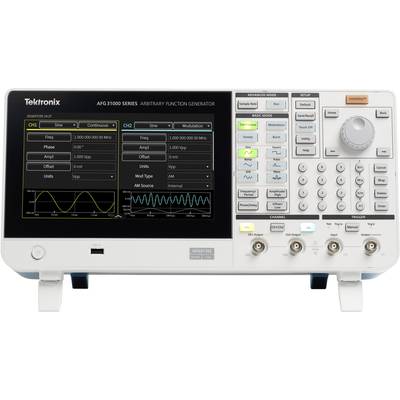

A function generator with display showing two curves and multiple settings, including frequency and amplitude. Marked: 'Tektronix'.

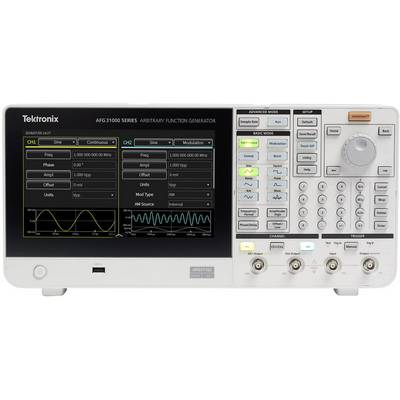

'AFG31000 Series by Tektronix' is an Arbitrary Function Generator with two channels that displays waveforms on a digital display.

A function generator with a digital display shows a sine wave. Various buttons and controls are visible to the right of the display.

An arbitrary function generator with display shows waveforms and parameters. Controls and connectors are visible.

An arbitrary function generator model with a screen and control panel, displaying a sequence list on the display along with various buttons and ports.

An arbitrary function generator with a display shows graphical and numerical data about frequency and amplitude across two channels.

'Digital oscilloscope', waveform options visible, buttons and connectors for various measurements.

An electronic device with a screen displaying sine waves and functions. Buttons and controls on the right-hand side for operation.

A function generator with display shows a waveform list and graphical representations. Control elements are arranged on the right side.

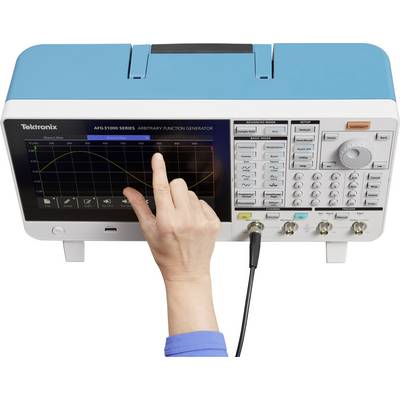

A hand touches the screen of a function generator with a graphic display on a colour screen, with many buttons on the side.

A person is working at a table with several electronic measuring devices. They are turning a knob on one of the devices to make adjustments.

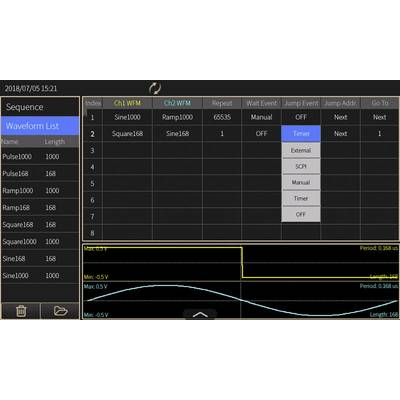

'Screen displays an oscilloscope interface with a sequence of waveforms, diagram view and multiple control options.'

Image of an oscilloscope display with a yellow sinusoidal waveform shown over a graphically displayed time period from 0 to 1000.

Diagram of a waveform with a prominent peak at approximately 110 mV and a subsequent fall to approximately 0 mV. X-axis: 'Pts', Y-axis: 'mV'.

'Oscilloscope screen shows two channels: CH1 generates a sine wave, CH2 a modulated wave. Both display frequency and amplitude.'

A screen image of a two-channel signal generator. Channel 1 displays a frequency of 1 MHz, Channel 2 not yet configured. Options for synchronisation and copying between channels are available.

Control unit with two channels displays frequency and phase information. Diagram below shows the connection between main and sub-unit.

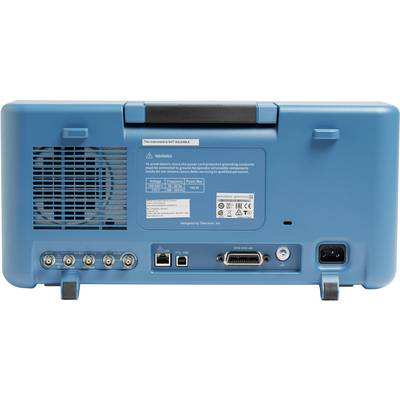

Back of an electronic device with ports and a fan. A label displays warning notices and technical specifications.

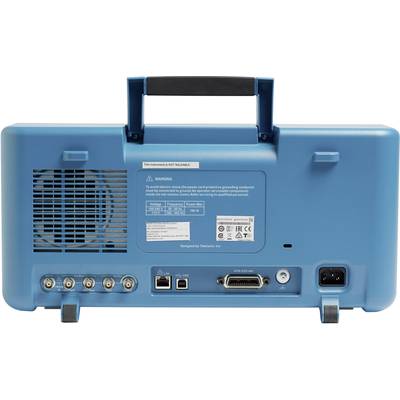

Rear view of a blue electronic device with multiple connection ports and a fan. Labels warn of electrical hazards.

Control panel of an electronic device with buttons and controls for modes such as 'Basic Mode' and 'Advanced Mode', including an 'InstaView' button.

1/22

Tektronix

Datasheet (PDF)

English

2 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 2,962.18 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

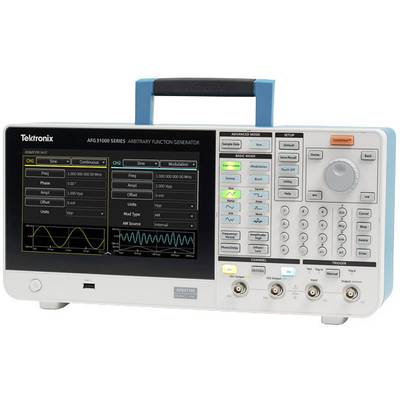

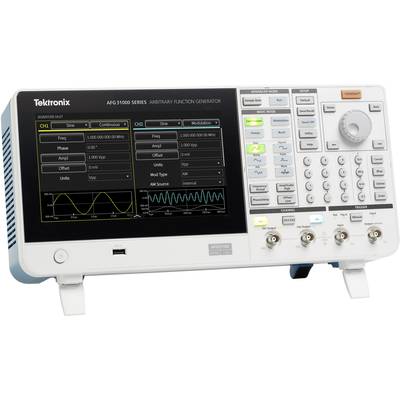

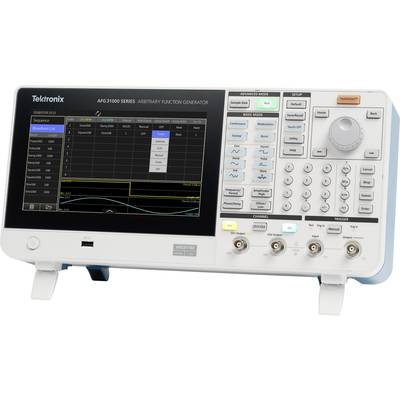

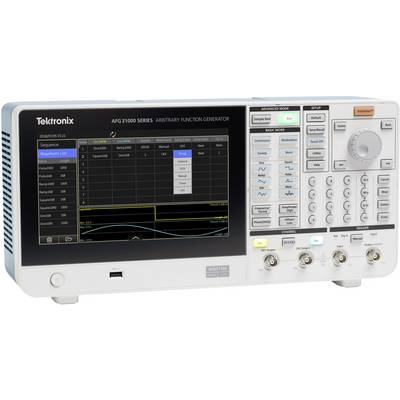

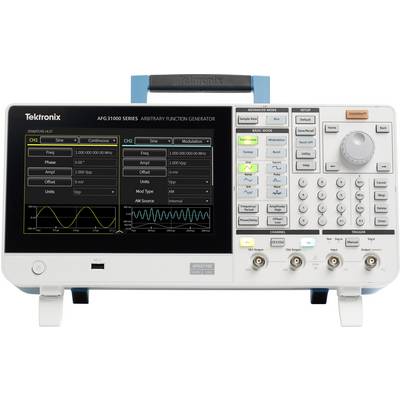

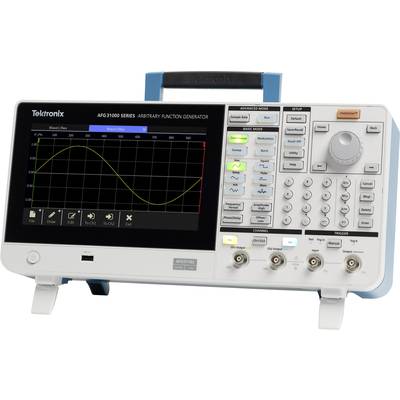

1-channel 25 MHz function generator AFG 31021

1- or 2-channel models
Output amplitude range 1 mVP-P to 10Vp-p in 50 loads Ω
Uses:
Advanced Research
The stroke and system synchronization
Replication of signals from the real world
Component and circuit characterization and validation
Design and testing of embedded circuits
General signal generation

Technical specifications

Display resolution: 800 x 480 pixels, 191.8 x 412.8 x 143.3 mm, dimensions: output impedance: 50 Ω, Power supply: 100 - 240 V, 47-63Hz; 115 V, 360-440 Hz

Frequency range: 0.000001 Hz - 25 MHz

Frequency range (sine): 1 μHz - 25 MHz

Distortion factor (sine): ±0.15 bis 0.3 dB

Frequency range square wave: 1 μHz - 20 MHz

Square wave slew rate: ≤ 8.0 ns

Frequency range triangle: 1 μHz - 500 kHz

ARB frequency range: 1 mHz - 12.5 MHz

Internal modulation: AM, FM, PM, PMW, ASK, FSK, PSK

External modulation: AM, FM, PM, PMW, ASK, FSK, PSK

Dim: (W x H) 413 mm x 192 mm

Weight: 4.7 kg

Height: 192 mm

Width: 413 mm

Max. frequency: 25 MHz

: Manufacturer's standards (no certificate)

No. of channels: 1-channel

Display: Digital

Features: Modulation

Voltage supply: Mains

Signal output types: Arbitrary
Triangle
Pulse
Noise
Rectangle
Sinus

Type: AFG31021

Min. frequency: 0.000001 Hz

Product type: Mains-powered

Variants(All information is without VAT, plus shipping costs)

Calibrated to

Frequency range (sine)

Signal output types

Tektronix AFG31021 Mains-powered 0.000001 Hz - 25 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1785552

This article

Manufacturer's standards (no certificate)

1 μHz - 25 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31022 Mains-powered 0.000001 Hz - 25 MHz 2-channel Arbitrary, Triangle, Rectangle, Sinus, Noise, Pulse

Item no:1785553

Manufacturer's standards (no certificate)

1 μHz - 25 MHz

ArbitraryTriangleRectangleSinusNoisePulse

Tektronix AFG31051 Mains-powered 0.000001 Hz - 50 MHz 1-channel Arbitrary, Triangle, Noise, Rectangle, Sinus, Pulse

Item no:1785554

Manufacturer's standards (no certificate)

1 μHz - 50 MHz

ArbitraryTriangleNoiseRectangleSinusPulse

Tektronix AFG31052 Mains-powered 0.000001 Hz - 50 MHz 2-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1785555

Manufacturer's standards (no certificate)

1 μHz - 50 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31101 Mains-powered 0.000001 Hz - 100 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1785556

Manufacturer's standards (no certificate)

1 μHz - 100 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31102 Mains-powered 0.000001 Hz - 100 MHz 2-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1785557

Manufacturer's standards (no certificate)

1 μHz - 100 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31151 Mains-powered 0.000001 Hz - 150 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1876776

Manufacturer's standards (no certificate)

1 μHz - 125 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31152 Mains-powered 0.000001 Hz - 150 MHz 2-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1876777

Manufacturer's standards (no certificate)

1 μHz - 125 MHz MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31251 Mains-powered 0.000001 Hz - 250 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1876778

Manufacturer's standards (no certificate)

1 μHz - 125 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Tektronix AFG31252 Mains-powered 0.000001 Hz - 250 MHz 2-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Item no:1876779

Manufacturer's standards (no certificate)

1 μHz - 125 MHz

ArbitraryTrianglePulseNoiseRectangleSinus

Documents & Downloads

Datasheet

English

Datasheet 1785552 Tektronix AFG31021 Mains-powered 0.000001 Hz - 25 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

User & Safety Instructions

User & Safety Instructions 1785552 Tektronix AFG31021 Mains-powered 0.000001 Hz - 25 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Information

Deutsch (Deutschland)

Information 1785552 Tektronix AFG31021 Mains-powered 0.000001 Hz - 25 MHz 1-channel Arbitrary, Triangle, Pulse, Noise, Rectangle, Sinus

Description

The AFG 31000 series is the best function generator your class. Through the entire production process developed for the highest standards of performance and versatility. The 9-inch capacitive touch screen, the built-in arbitrary waveform application and the patented insta view™ technology provides unprecedented ease of use for researchers and engineers and allow you to concentrate on your work.

This text is machine translated.

Features

Dual operation for user-friendliness and flexibility
Built-in ArbBuilder for creating and editing any functions

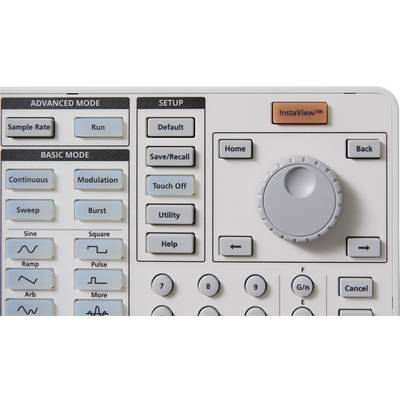

Patented Insta View™ Technology
Compatible with TekBench ®.
