Telegärtner 100023508 100023508 HDTV-BNC connector Plug, straight 75 Ω 1 pc(s)

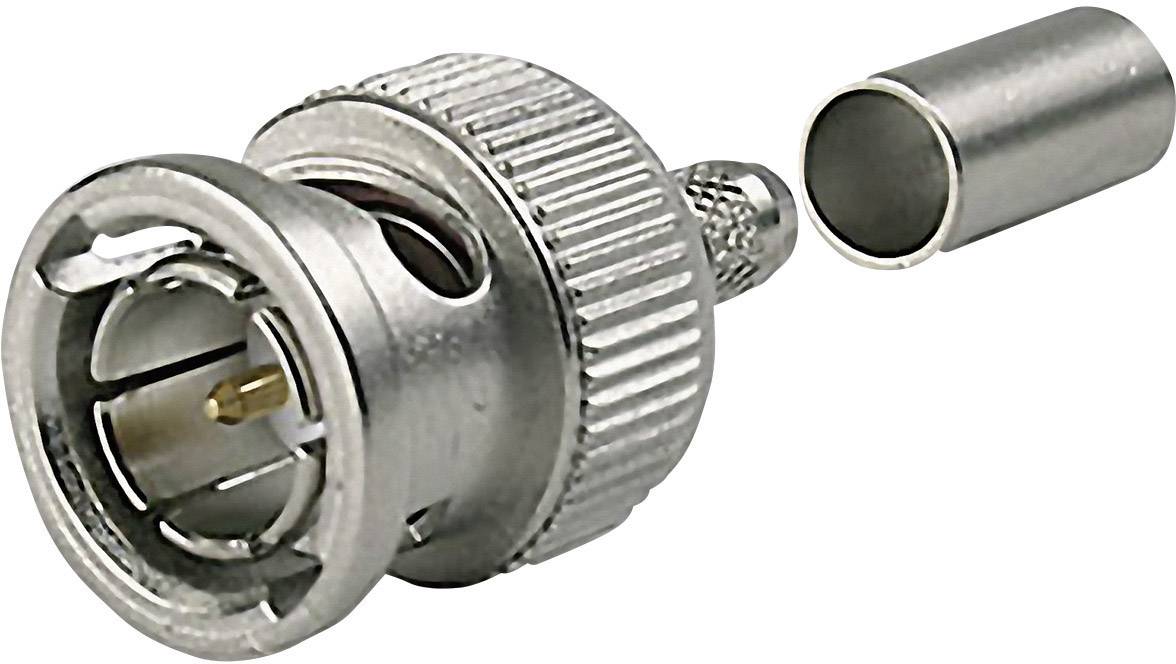

BNC connector, consisting of a plug connector and a cable sleeve, made of metal, used for connecting coaxial cables.

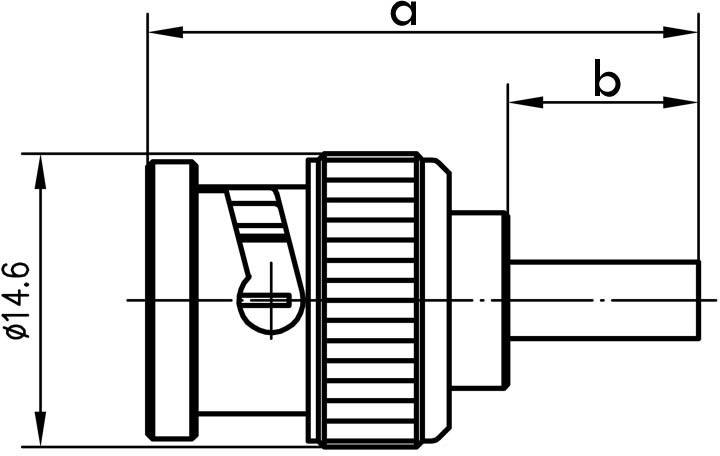

Technical drawing of a plug with dimensions. The diameter is 14.6 mm. Lengths a and b are also marked.
1/2
Image similar
Cable category
Draka 0.6 L/2.8 AF
Product type
HDTV-BNC connector
Connector type
Plug, straight
Impedance
75 Ω
Connection
Crimp
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
47 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Cable category

Draka 0.6 L/2.8 AF

Product type

HDTV-BNC connector

Connector type

Plug, straight

Impedance

75 Ω

Connection

Crimp

Content

1 pc(s)

Cable Ø

4.70 mm

Case material

Brass nickel plated

Manufacturer part #

100023508

Insulation material

PE

Contact material

Brass

RoHS-compliant

Yes

Temperature range

-40 - +155 °C

Type

100023508

Seal type

Bayonet

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1090899 Telegärtner 100023508 100023508 HDTV-BNC connector Plug, straight 75 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090899 Telegärtner 100023508 100023508 HDTV-BNC connector Plug, straight 75 Ω 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
