Name: TP-LINK VIGI NVR2016H-16MP VIGI NVR2016H-16MP IP Network video recorder
Brand: TP-LINK
SKU: 3808174
Availability: InStock

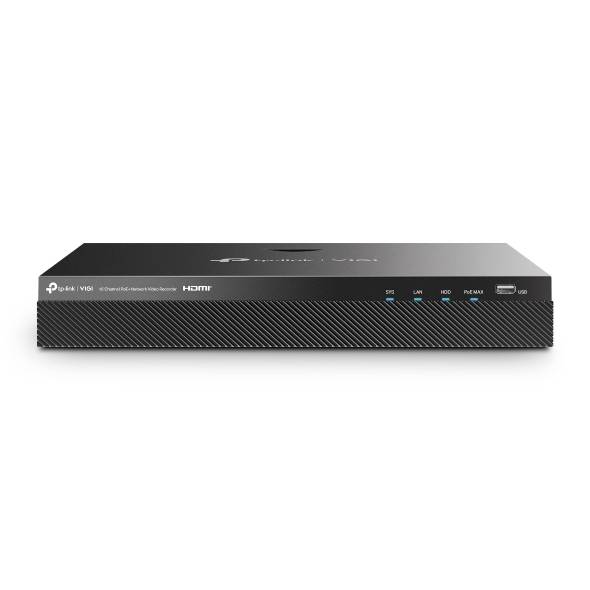

Black TP-Link VIGI network video recorder with front status lights and HDMI/USB ports, shown on a white background.

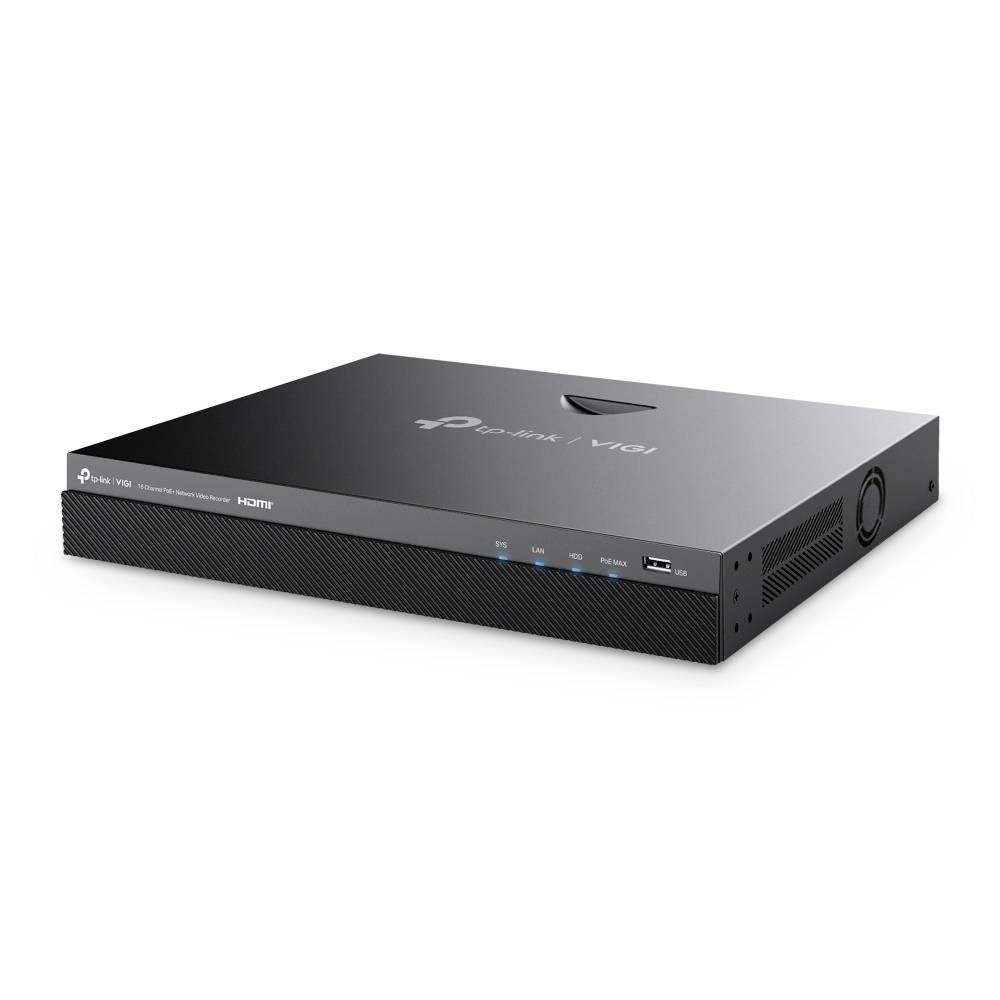

Black TP-Link Omada router/appliance with front status lights and ports, shown in a product-style view on a white background.

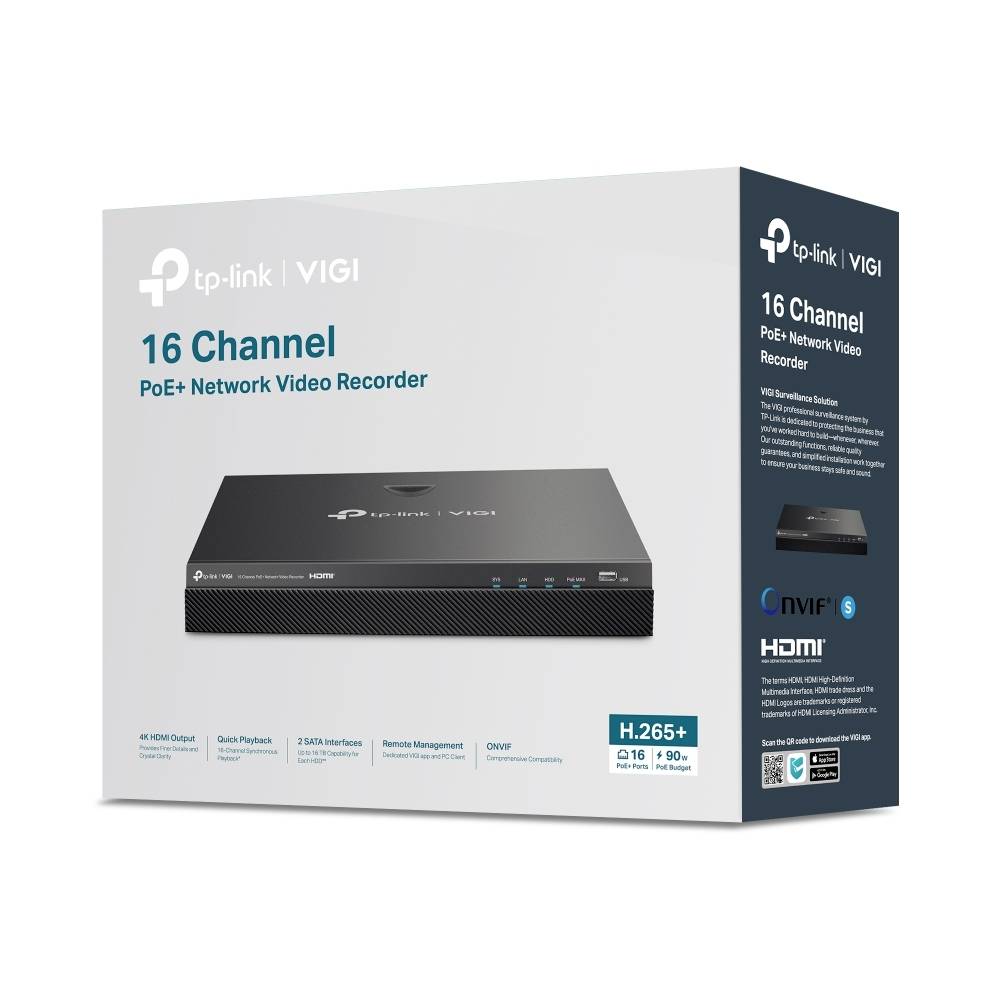

TP-Link VIGI 16 Channel PoE+ Network Video Recorder box showing the recorder and features like H.265+, ONVIF, and HDMI compatibility.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 659.00 / piece)

€ 659.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

IP-TP-LINKVIGI NVR2016H-16MP;VIGI NVR2016H-16MP

Video input channels: 16 channels
3840 x 2160 pixels
80 Mbps input bandwidth
Output bandwidth 60 Mbit/s.
Max. Storage capacity 10 TB HDD Interface SATA
No. of Ethernet LAN ports (RJ-45): 1 Power over Ethernet (PoE)
40 W

Technical specifications

Video input channels: 16 channels
Number of channels played simultaneously: 16 channels
Supported audio formats: G.711 A-law,G.711 μ-law,G.726
Maximum frame rate 30 fps
USB interfaces 1 × USB 2.0 (front side), 1 × USB 2.0 (rear side)
Audio interface 1 × Audio In, 1 × Audio Out
Additional interfaces: 1 × eSATA, 1 × VGA
VIDEO COMPRESSION: H.265+/H.265/H.264+/H.264
Interoperability: ONVIF (Profile S), CGI

Product type: Network video recorder

App compatibility: Yes

Width: 330 mm

Height: 45 mm

Depth: 285 mm

Dim: (W x H x D) 330 x 45 x 285 mm

Weight: 2.1 kg

Factory colour: Black

Signal standard: IP

Display resolution: 3840 x 2160 Pixel

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

Keyboard layout: Keyboard not included

Memory capacity: 0 GB

Max. output current: 2.43 A

Output voltage: 53.5 V

10/100/1000 Mbps ports: 1 x

Wi-Fi: No

UKCA: yes

Power over Ethernet (PoE) ports quantity: 16

Operating temperature (T-T): -10 - 55 °C

Line-in: yes

Total Power over Ethernet (PoE) budget: 140 W

Playback controls: yes

DC-in jack: yes

eSATA ports quantity: 1

Power over Ethernet (PoE): yes

Number of HDDs supported: 2

eSATA: yes

Reset button: yes

Quick installation guide: yes

Maximum storage capacity: 10 TB

Video motion detection: yes

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -40 - 70 °C

Package weight: 4.1 kg

Internal SATA ports quantity: 2

VGA (D-Sub) output ports: 1

Power consumption (max): 40 W

Documents & Downloads

Datasheet

Datasheet 3808174 TP-LINK VIGI NVR2016H-16MP VIGI NVR2016H-16MP IP Network video recorder

User & Safety Instructions

User & Safety Instructions 3808174 TP-LINK VIGI NVR2016H-16MP VIGI NVR2016H-16MP IP Network video recorder

Information

Information 3808174 TP-LINK VIGI NVR2016H-16MP VIGI NVR2016H-16MP IP Network video recorder

Description

Professional 16-channel network video recorder for demanding surveillance scenarios with an outstanding decoding capacity of up to 16 channels at 2 megapixels or up to 4 channels in true 8 megapixel (4K) resolution. The highly efficient H.265+ video compression drastically reduces the storage capacity and network load. For long-term archiving in 24/7-operation the device possesses two SATA hard-disk slots, which support a total capacity of up to 20 TB (2 x 10 TB). ONVIF compatibility as well as control via HDMI/VGA, PC client and APP ensure flexible integration and easy management in the commercial sector.

This text is machine translated.
