VOLTCRAFT VC-1310 Clamp meter Calibrated to (ISO standards) Digital CAT II 600 V Display (counts): 1999
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 2 Piece(s) available
Highlights & Details

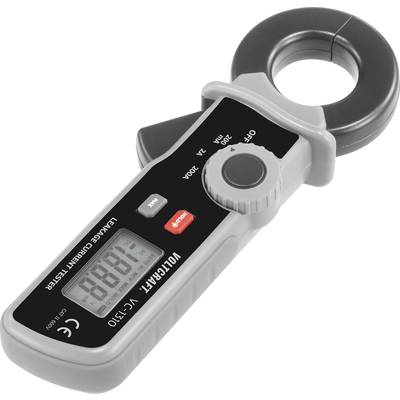

Voltcraft VC-1310 leakage current clamp Mini AC
- CAT II 600 V
Technical specifications
- Product type
Clamp meter
- A AC reading range (min.)
0.1 mA
- Amperage reading range AC (max.)
200 A
- Basic accuracy
5 %
- Height
182 mm
- Width
61 mm
- Length
34 mm
- Weight
163 g
ISO standards
- Reading category
CAT II 600 V
- Current reading
AC
- Type
VC-1310
- Display
Digital
- Display (counts)
1999
- Dim
(L x W x H) 34 x 61 x 182 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2527481 VOLTCRAFT VC-1310 Clamp meter Calibrated to (ISO standards) Digital CAT II 600 V Display (counts): 1999
User & Safety Instructions
User & Safety Instructions 2527481 VOLTCRAFT VC-1310 Clamp meter Calibrated to (ISO standards) Digital CAT II 600 V Display (counts): 1999
Warranty Terms
Warranty Terms 2527481 VOLTCRAFT VC-1310 Clamp meter Calibrated to (ISO standards) Digital CAT II 600 V Display (counts): 1999
Description

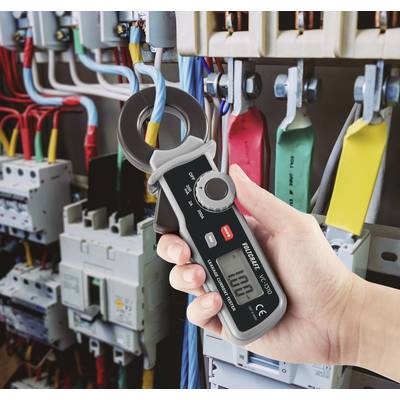

Detect leakage currents without interruptionIf electricity flows in places where it does not belong, it can have dangerous consequences. In order to detect and measure these currents, current clamps have proven themselves, which make the separation of the conductor or the interruption of the circuit unnecessary.Measure leakage current reliablyThe handy Voltcraft VC-1310 with 3.05 cm jaw opening fits in every trouser pocket, but is nevertheless approved for cat II 600 V and detects leakage currents from 100 μA AC. The 3-1/2 digit LCD display has 1999 counts, white LED backlight and data hold function to freeze measurement results and read them more easily. An overload indicator is also available.Always ready to useThe VC-1310 leakage current clamp indicates a low battery level and switches off automatically in case of prolonged inactivity to save energy. In addition to the current clamp and user manual, the package also includes two AAA batteries for immediate use.
This text is machine translated.
This text is machine translated.
Features
- Auto switch-offData-hold function Data-hold functionLow battery indicatorOverload indicator: OL
Scope of delivery
- Clamp meter2x AAA batteryUser manual
