WAGO 2006-1301 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)

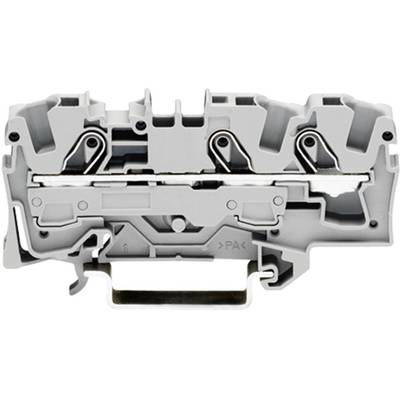

Grey electrical terminal housing, cross-section view. Shows internal metal connections and screw mechanisms for cable connection.
Image similar
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
222 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.29 / piece)
€ 3.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

WAGO 2006-1301 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)

  • 2006-1301
  • TOPJOB®S
  • CAGE CLAMP®
  • Symbol image for WAGO 2006-1301 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)

Technical specifications

Product type

Continuity

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.50 mm²

Cross section (flexible) (max.)

10 mm²

Cross section (inflexible) (min.)

0.50 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

20

AWG max.

8

Clamp width

7.50 mm

No. of rows

1

Pins per row

3

Number of pins

3

Factory colour

Grey

Nominal current

41 A

Nominal current - rounded value

41 A

Nominal voltage

800 V

Min. stripping length

13 mm

Stripping length (max.)

15 mm

Manufacturer part #

2006-1301

Content

1 pc(s)

Type

2006-1301

Width

7.50 mm

Weight

0

Type

3-conductor

Nominal current (details)

41 A

Cross section

0.5 - 6/10 (rigid/flexible) mm²

Connection

-

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 735373 WAGO 2006-1301 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 735373 WAGO 2006-1301 Continuity 7.50 mm Pull spring Configuration: L Grey 1 pc(s)

Description

The series 2006 enables a simple plugging of one-wired and flexible conductors equipped with crimped wire-end sleeves.
