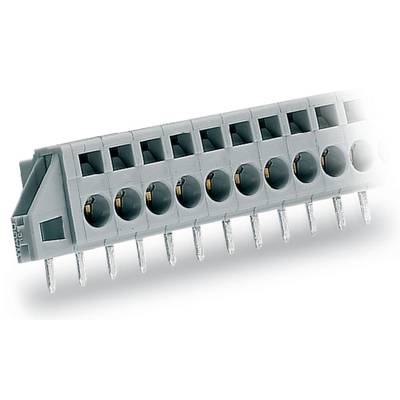

WAGO 231-610/023-000 Spring-loaded terminal Number of pins 10 Grey 25 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number (Package size 25 pc(s))
Total (€ 5.21 / piece)
€
Highlights & Details
1-conductor feedthrough terminal strip
- Content 25 pc(s)
Technical specifications
- FEEDTHRU W/FIXING FL-5MM
- Features
+ CAGE CLAMP®
- CS
5.00 mm
- Pins per row
10
- Number of pins
10
- Series
231
- Stripping length (max.)
9.00 mm
- Connection
Spring-loaded terminal
Print
- Nominal current
16 A
- Nominal current - rounded value
16 A
- AWG (min.)
28
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Content
25 pc(s)
- Height
19.10 mm
- Length
19.00 mm
- Width
65.20 mm
- Industrial packaging
Yes
- Series
231
- Manufacturer part #
231-610/023-000
- Type
WAGO GmbH & Co. KG
- Nominal voltage
320 V
- max. cross section
2.5 mm²
- Min. cross section
0.08 mm²
- Product type
Spring-loaded terminal
Documents & Downloads
Datasheet
Datasheet 728020 WAGO 231-610/023-000 Spring-loaded terminal Number of pins 10 Grey 25 pc(s)
User & Safety Instructions
User & Safety Instructions 728020 WAGO 231-610/023-000 Spring-loaded terminal Number of pins 10 Grey 25 pc(s)
Description
Angled connector pin 1 x1.2 mm 10-pin, with mounting flanges, pitch 5 mm/0.197 in, for housing flush mounting, gray.
