WAGO 280-564 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 10 pc(s)

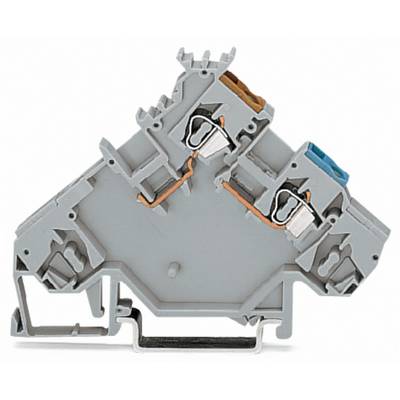

Grey electrical terminal connection with two cables in metal clamps. The connections are colour-coded: blue and brown.

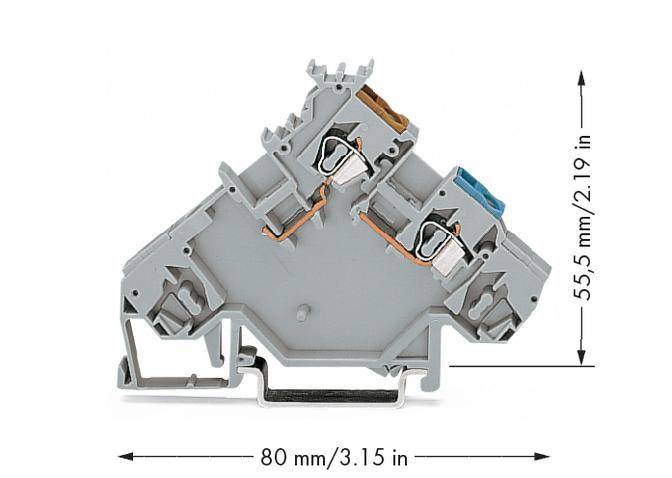

Description: Grey clip rail with dimensions of 80 mm x 55.5 mm, identifiable by two metal connectors and blue element insert on top.
The circuit diagram shows two sliding controls: The upper control is labelled with '+' and a brown box, the lower with '-' and a blue box.
1/3
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 7 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 3.20 / piece)
€ 31.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Industrial packaging unit, initiator terminal

  • 280-564
  • Industrial packaging, pack of 10

Technical specifications

Product type

Proximity switch terminal

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

2

Pins per row

1

Number of pins

2

Factory colour

Grey

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

400 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-564

Content

10 pc(s)

Industrial packaging

Yes

Type

280-564

Dim

(W x H) 5 mm x 55.50 mm

Width

5 mm

Height

55.50 mm

Contamination level

3

Nominal voltage (details)

6000 V

Nominal current (details)

20 A

Connection

CAGE CLAMP®

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535855 WAGO 280-564 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 10 pc(s)

User & Safety Instructions

User & Safety Instructions 535855 WAGO 280-564 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 10 pc(s)

Description

Feed on the initiator side, grey.
