WAGO 735-304 Spring-loaded terminal Number of pins 4 Grey 240 pc(s)
Product type
Spring-loaded terminal
CS
5 mm
Pins per row
4
Number of pins
4
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 240 pc(s))
Total (€ 1.56 / piece)
€ 375.00
incl. VAT
14-day return policy included
Highlights & Details

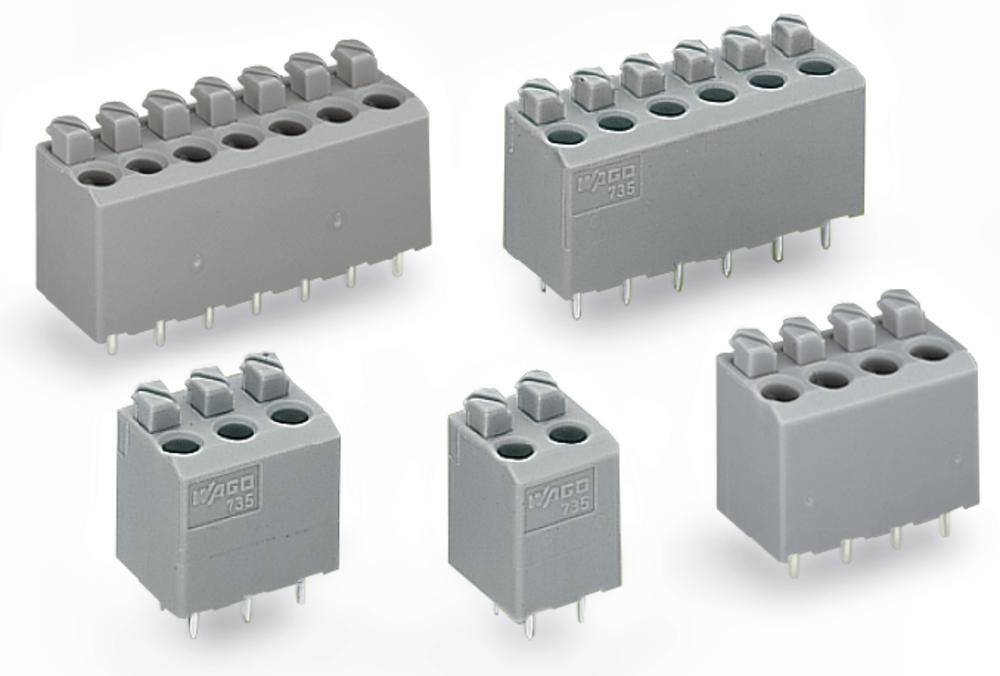

Compact PCB terminal block
- Content 240 pc(s)
Technical specifications
- PCB TERMINAL STRIP
- Type
735-304
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
5 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Series
735
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Connection
Spring-loaded terminal
Print
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
20
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
16
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Manufacturer part #
735-304
- Industrial packaging
Yes
- Content
240 pc(s)
- Nominal voltage
320 V
- Width
20.00 mm
- Height
19.40 mm
- Length
10.80 mm
Documents & Downloads
Datasheet
Datasheet 544287 WAGO 735-304 Spring-loaded terminal Number of pins 4 Grey 240 pc(s)
User & Safety Instructions
User & Safety Instructions 544287 WAGO 735-304 Spring-loaded terminal Number of pins 4 Grey 240 pc(s)
