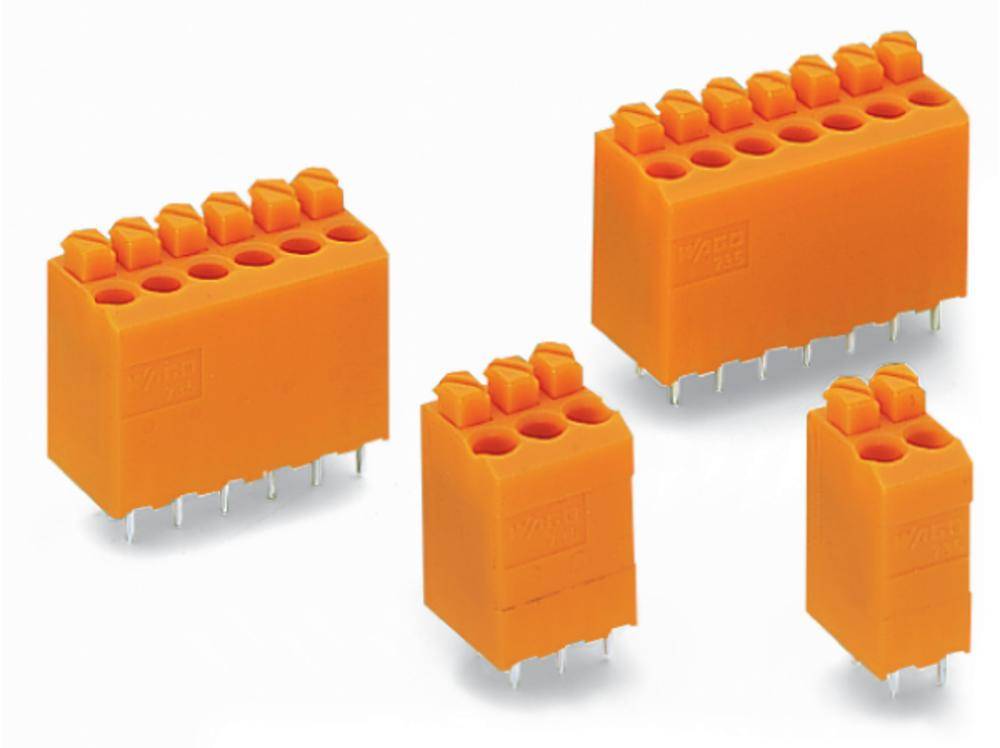

WAGO 735-126 Spring-loaded terminal Number of pins 6 Orange 220 pc(s)
Product type
Spring-loaded terminal
CS
3.81 mm
Pins per row
6
Number of pins
6
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 220 pc(s))
Total (€ 2.22 / piece)
€ 489.00
incl. VAT
14-day return policy included
Highlights & Details
Compact PCB terminal block
- Content 220 pc(s)
Technical specifications
- PUSHWIRE PCB TERM. 6 POLE 3.81mm PIT
- Type
735-126
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
3.81 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Series
735
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Connection
Spring-loaded terminal
Print
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
20
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
16
- Contact material
Cathode copper, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Manufacturer part #
735-126
- Industrial packaging
Yes
- Content
220 pc(s)
- Nominal voltage
320 V
- Width
22.86 mm
- Height
21.90 mm
- Length
10.80 mm
Documents & Downloads
Datasheet
Datasheet 544276 WAGO 735-126 Spring-loaded terminal Number of pins 6 Orange 220 pc(s)
User & Safety Instructions
User & Safety Instructions 544276 WAGO 735-126 Spring-loaded terminal Number of pins 6 Orange 220 pc(s)
