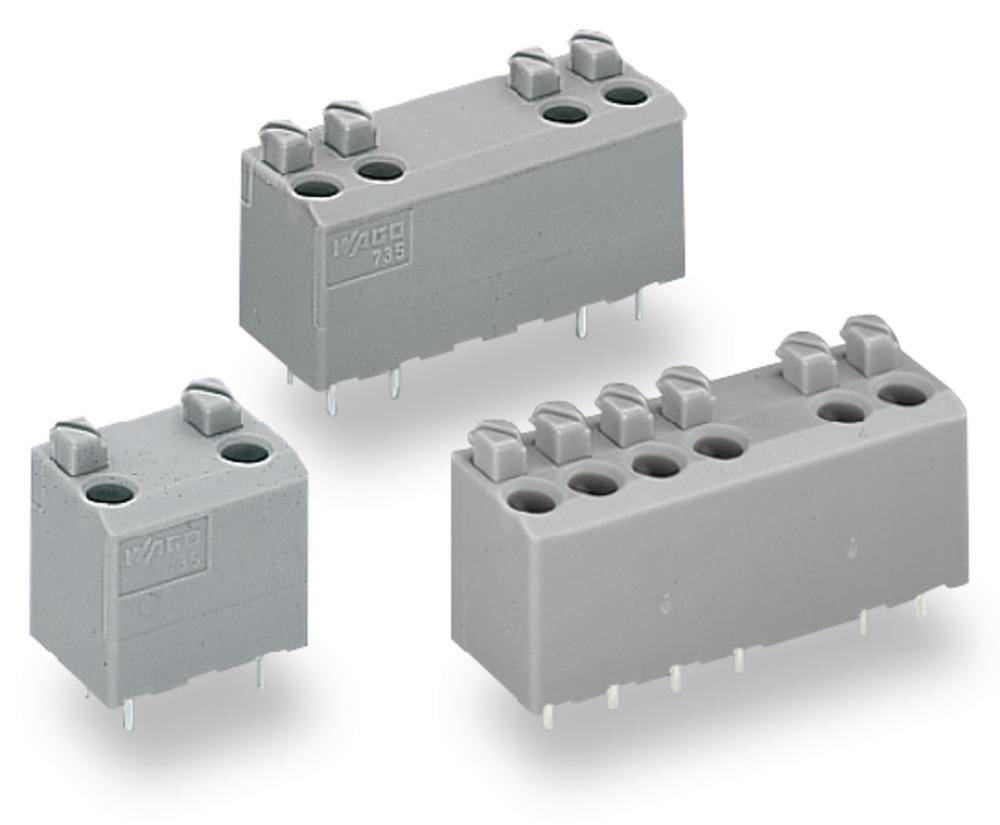

WAGO 735-306/003-000 Spring-loaded terminal Number of pins 5 Grey 160 pc(s)
Product type
Spring-loaded terminal
CS
5 mm
Pins per row
5
Number of pins
5
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 160 pc(s))
Total (€ 2.06 / piece)
€ 329.00
incl. VAT
14-day return policy included
Technical specifications
- GDS-LEISTE(FV) RM 5,00MM 6-P. GRAU
- Type
735-306/003-000
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
5 mm
- No. of rows
1
- Pins per row
5
- Number of pins
5
- Series
735
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Connection
Spring-loaded terminal
Print
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
20
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
16
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Manufacturer part #
735-306/003-000
- Industrial packaging
Yes
- Content
160 pc(s)
- Nominal voltage
320 V
- Width
30.00 mm
- Height
19.40 mm
- Length
10.80 mm
Documents & Downloads
Datasheet
Datasheet 544291 WAGO 735-306/003-000 Spring-loaded terminal Number of pins 5 Grey 160 pc(s)
User & Safety Instructions
User & Safety Instructions 544291 WAGO 735-306/003-000 Spring-loaded terminal Number of pins 5 Grey 160 pc(s)
