Name: Weidmüller 1331200000 Spring-loaded terminal 2.5 mm² Number of pins 8 Orange 35 pc(s)
Brand: Weidmüller
SKU: 1765858
Availability: BackOrder

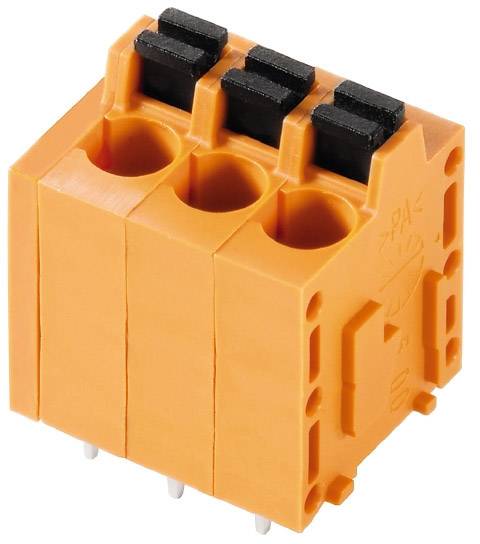

Orange connector with three black contact points.

Image similar

Product type

Spring-loaded terminal

5.08 mm

Pins per row

Number of pins

Connection

Push-in connector

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue, 9 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 35 pc(s))

Set(s)

Total (€ 2.74 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pcb terminal, 5.08 mm, number of poles: 8, 180°, 3.5 mm, orange, PUSH-IN, 2.5 mm², Box

Our service for you

Technical specifications

Type: LMF 5.08/08/180 3.5SN OR BX

Product type: Spring-loaded terminal

CS: 5.08 mm

No. of rows: 1

Pins per row: 8

Number of pins: 8

Min. stripping length: 10 mm

Stripping length (max.): 10 mm

Connection: Print
Push-in connector

Nominal current: 20 A

Cross section (flexible) (min.): 0.25 mm²

Nominal current - rounded value: 20 A

Cross section (inflexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

AWG (min.): 24

Connector orientation: Perpendicular (to the PCB)

AWG max.: 12

Contact material: Copper alloy tin plated

Factory colour: Orange

Weight: 12.24 g

Manufacturer part #: 1331200000

Content: 35 pc(s)

Nominal voltage: 300 V

Width: 43.26 mm

Height: 22.7 mm

Length: 14.8 mm

Type: LMF 5.08/08/180 3.5SN OR BX

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1765858 Weidmüller 1331200000 Spring-loaded terminal 2.5 mm² Number of pins 8 Orange 35 pc(s)

User & Safety Instructions

User & Safety Instructions 1765858 Weidmüller 1331200000 Spring-loaded terminal 2.5 mm² Number of pins 8 Orange 35 pc(s)

Description

Pcb terminal (PCB terminal) with application-compliant connection technology for easy and secure transmission of data directly on the circuit board.

This text is machine translated.

Description

Pcb terminal (PCB terminal) with application-compliant connection technology for easy and secure transmission of data directly on the circuit board.

This text is machine translated.
