Weidmüller SSR 1127000000 0.1 A Switching voltage (max.): 48 V DC 10 pc(s)

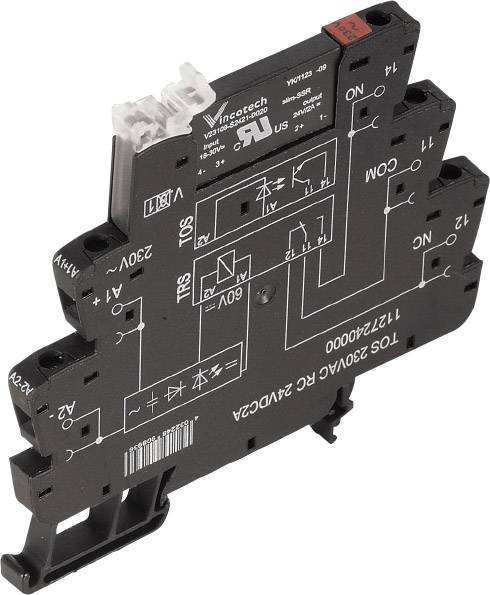

A black relay module with white circuit diagrams and technical markings. It displays connection and switching symbols for electrical applications.
Image similar
Packaging type
Piece
Product type
SSR
Control voltage (min.)
120 V AC
Control voltage (max.)
120 V AC
Switching voltage (max.)
48 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon, 8 Feb 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 10 pc(s))
Total (€ 38.50 / piece)
€ 385.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Storage temperature, max. 70 °C.
  • Storage temperature, min.: -40 °C
  • Status indicator: Green LED
  • Switch-on delay < 6.5 ms
  • Switch-off delay < : 10 ms
  • Voltage drop at max. load: ≤ 1 V.
  • Leakage current < 10 µA
  • Short-circuit proof: No.
  • Colour, black
  • Rated voltage: 300 V
  • Over voltage category III
  • Creepage and air distance control side - load side: ≥ 5.5 mm
  • Surge voltage 6 kV (1.2/50 µs)
  • Humidity: 5...95 % rel. humidity, Tu = 40 °C, no condensation
  • MTTF: 1,079 years
  • On/off voltage 79 V/60 V AC
  • Protective circuit: Rectifier, RC element
  • min Switching current 500 µA
  • Protective circuit on load side: Snubber diode
  • Max. Switching frequency (AC control voltage): 3 Hz
  • Mounting rail TS 35
  • Flammability class according to UL 94: V-0
  • Pollution level: 2
  • Electrical strength, control side - load side: 2.5 kVeff
  • Wire stripping length rated connection: 8 mm
  • Clamping range, rated connection 1.5 mm²
  • Clamping range, min. 0.14 mm²
  • Clamping range, max. 2.5 mm²
  • Conductor cross-section AWG, min. AWG 26
  • Conductor cross-section AWG, max. AWG 14
  • Conductor cross-section, single-wire, min. 0.14 mm²
  • Conductor cross-section, single-wire, max. 2.5 mm²
  • Conductor cross-section, fine strand, min. 0.14 mm²
  • Conductor cross-section, fine strand, max. 2.5 mm²
  • Conductor cross-section, fine strand, min. (AWG) AWG 26
  • Conductor cross-section, fine strand, max. (AWG): AWG 14
  • Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min. 0.25 mm²
  • Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 2.5 mm²
  • Conductor cross-section, fine strand, AEH (DIN 46228-1), min. 0.25 mm²
  • Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 2.5 mm²
  • Blade dimension: GR. PH0
  • Tightening torque, max. 0.4 Nm
  • Conductor type: Rigid copper conductors, fine-wired copper conductors
  • Coil voltage of spare relay different from the nominal control voltage: Yes
  • Coil voltage of spare relay 60 V DC
Packaging type

Piece

Product type

SSR

Type

TOS 120VAC RC 48VDC0,1A

Connection

Screws

Control voltage (min.)

120 V AC

Control voltage (max.)

120 V AC

Control voltage range

120 - 120 V AC

Control current (max.)

7 mA

Switching voltage (min.)

0 V DC

Switching voltage (max.)

48 V DC

Current load (max.)

0.1 A

Max. switching capacity

0.84 VA

Output voltage (max.)

48 V DC

Max. output current

0.1 A

Contact type

1 maker

Min. temperature

-20 °C

Max. temperature

+60 °C

IP20

Width

6.4 mm

Height

89.6 mm

Depth

87.8 mm

Weight

32.4 g

Permanent current (max.)

0.1 A

Content

10 pc(s)

UKCA

not relevant
