ZF MP201901 Reed switch 1 maker 175 V DC, 175 V AC 500 mA 10 W
Product type
Reed switch
Contact type
1 maker
Switching voltage (max.)
175 V DC
175 V AC
Switching current (max.)
500 mA
Width
6.35 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Highlights & Details
Magnetic proximity switch
Our service for you
Technical specifications
- Product type
Reed switch
- Type
MP201901
- Contact type
1 maker
- Switching voltage (max.)
175 V DC
175 V AC
- Switching current (max.)
500 mA
- Max. switching capacity
10 W
- Cable length
30.48 cm
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Width
6.35 mm
- Height
19.1 mm
- Length
28.58 mm
- Dim
(L x W x H) 28.58 x 6.35 x 19.1 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 276127 ZF MP201901 Reed switch 1 maker 175 V DC, 175 V AC 500 mA 10 W
User & Safety Instructions
User & Safety Instructions 276127 ZF MP201901 Reed switch 1 maker 175 V DC, 175 V AC 500 mA 10 W
Description

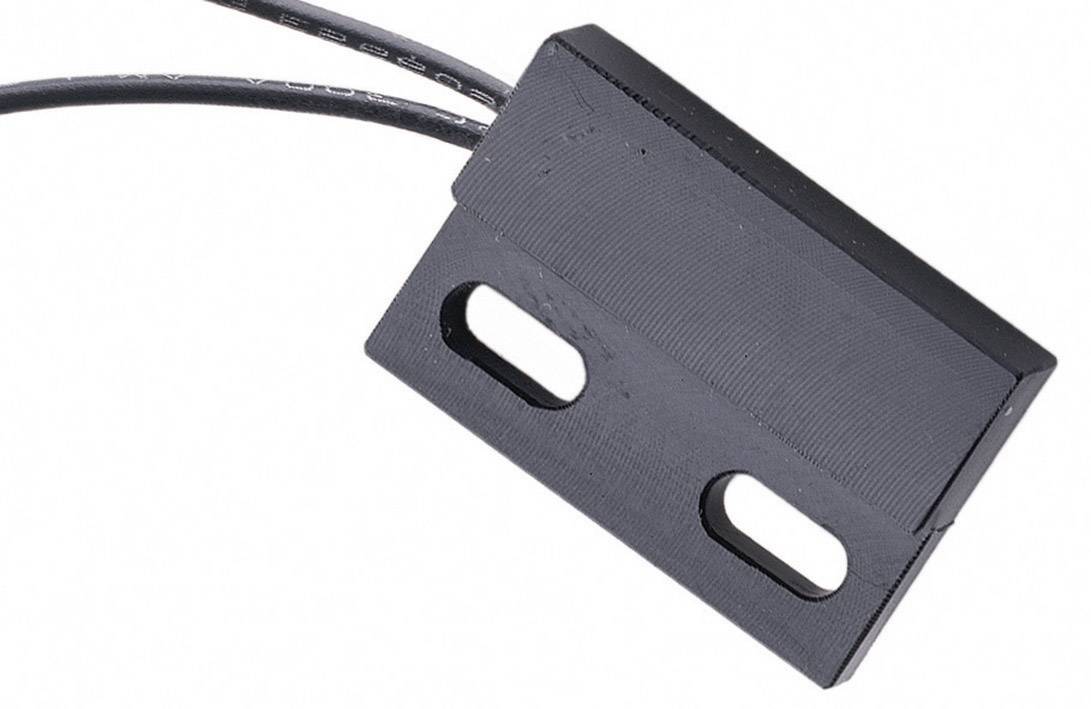

Omnipolar reed sensor switch in plastic housing. Suitable for like environments. Hermetically sealed for long life. Can be used in DC and AC circuits. No power consumption in standby. Optionally available Standard actuator magnet in the same housing, AS201901 Order No. 27 61 18.
