B.E.G. Brück 91008 Wall, Surface-mount PIR motion detector 280 ° White IP44
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Technical specifications
- Product type
PIR motion detector
- Detection angle
280°
16 m
- Used at
Outdoors
- Mounting type
Wall
Surface-mount
- Operating voltage
230 V
- Twilight settings
2 - 2000 lx
- Factory colour
White
IP44
- Length
110 mm
- Width
68 mm
- Height
78 mm
- Dim
(L x W x H) 110 x 68 x 78 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 469770 B.E.G. Brück 91008 Wall, Surface-mount PIR motion detector 280 ° White IP44
Description

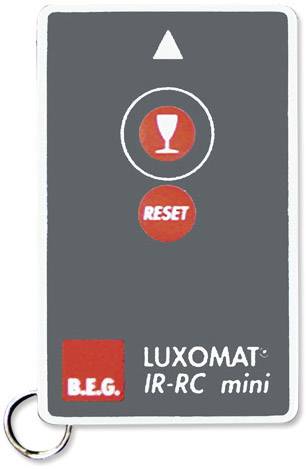

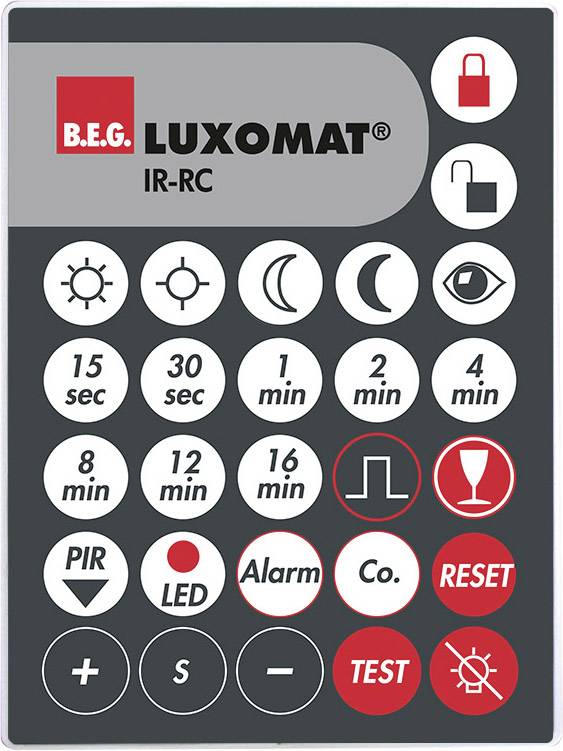

Adjustable ball head optics with up to 280° detection zone and 360° creep zone protection Cover not required detection zones by aufclippen continuously movable lamellae (blinds), meaning that all detection areas below 280°such as, for example, 130° or 230°, can be realized. Special socket for external corner included. Hard background program for immediate start-up with the set twilight value of approx. 20 Lux and a follow-up time of 3 minutes. Setting of dimming and delay time of two potentiometers on the bottom of the ball head. Option: Remote Control IR-LC-plus or IR-LC Mini for additional settings, such as continuous light on or off at any time. Easy mounting through one-hand base. Applications: for example, house entrances, garages and plot entries or the whole house pages.
