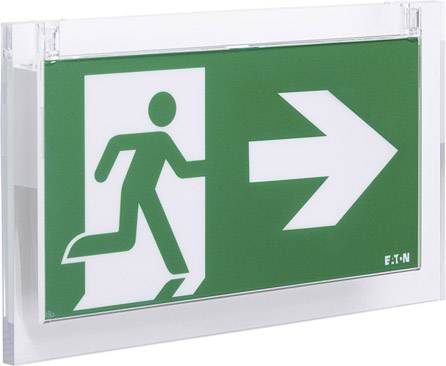

Name: CEAG 40071354595 LED escape route lighting Ceiling surface-mount, Wall surface-mount Up, Left, Right, Down
Brand: CEAG
SKU: 2181350
Availability: BackOrder

CEAG

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 24 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 194.99 / piece)

€ 194.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED escape route lighting CEAG 19522 1-8h/D 40071354595 (Ceiling surface-mount, Wall surface-mount)

Detection range 30 m.
Dimmable in 3 steps
Low installation height

Technical specifications

Dim: (W x H x D) 331 x 183 x 47 mm

Product type: LED escape route lighting

Main battery supply: No

Max. battery life: 8 h

Type: Up
Left
Right
Down

Backlit: Yes

Operating voltage: 240 V AC

Detection range: 30 m

Weight: 700 g

: 5.8 W

Bulb type: LED (monochrome)

Material: Polycarbonate (PC)

Mounting type: Ceiling surface-mount
Wall surface-mount

Width: 331 mm

Height: 183 mm

Depth: 47 mm

: IP42

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2181350 CEAG 40071354595 LED escape route lighting Ceiling surface-mount, Wall surface-mount Up, Left, Right, Down

User & Safety Instructions

User & Safety Instructions 2181350 CEAG 40071354595 LED escape route lighting Ceiling surface-mount, Wall surface-mount Up, Left, Right, Down

Description

Exclusive single-battery disc lamp with LED fiber-optic technology and automatic test for low inspection effort.

This text is machine translated.

Features

Universally applicable for continuous and ready switching as well as 1 h, 3 h or 8 h operation
Clear design with highly transparent frame with exchangeable, inner screen printing pictogram
including pictogram set (arrow right, left, bottom, top, blind) for the most common applications
Expandable by extensive accessories, e.g. Housing for ceiling installation, cable suspension, pictograms for 90° wall mounting
Low construction height through compact electronics casing with only 22 mm height
Minimized maintenance effort through high life expectancy of the LEDs of up to 50,000 hours
Optimal recognition through high luminance of the white contrast color (> 500 cd/m2) According to DIN 4844-1 / ISO 3864-1 (for bright environment in mains operation) and high uniformity Lmin/Lmax> 0.8
can be dimmed in 3 stages for use in dark ambient conditions
Simple error analysis and status display via bicolor LED and test button
1 minute switch-back delay after mains return
Connection terminals: 2 x 3 x 0.5- 2.5 mm²
Battery: Li-ion 3.6 V/1240 mAh
Lamp: LED strip
Light current ΦE/ΦNenn at the end of the nominal operating duration: 100 % at 1 h; 45 % at 3 h; 18 % at 8 h
Permissible ambient temperature: +5 °C to +35 °C".

Scope of delivery

Rescue sign-disc lamp 30 m
Pictogram set (arrow right, left, bottom, top, blind).
