Chauvin Arnoux F604 Clamp meter Digital Splashproof (IP54) CAT III 1500 V, CAT IV 1000 V Display (counts): 10000

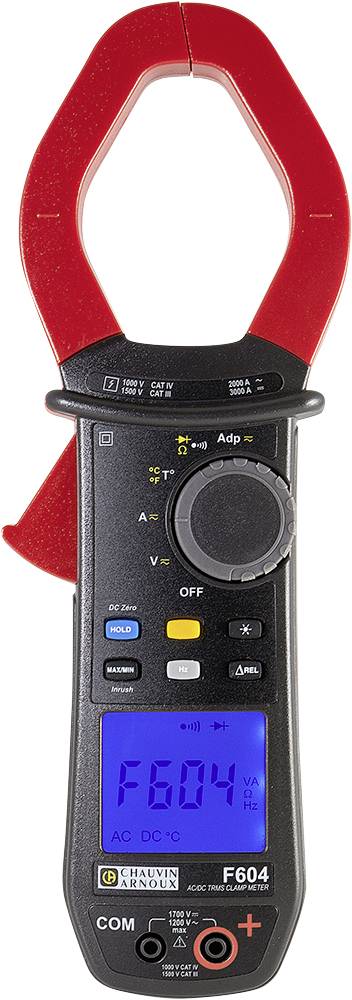

Digital multimeter with a red clamp, black casing, and illuminated display showing the number 'F604'.

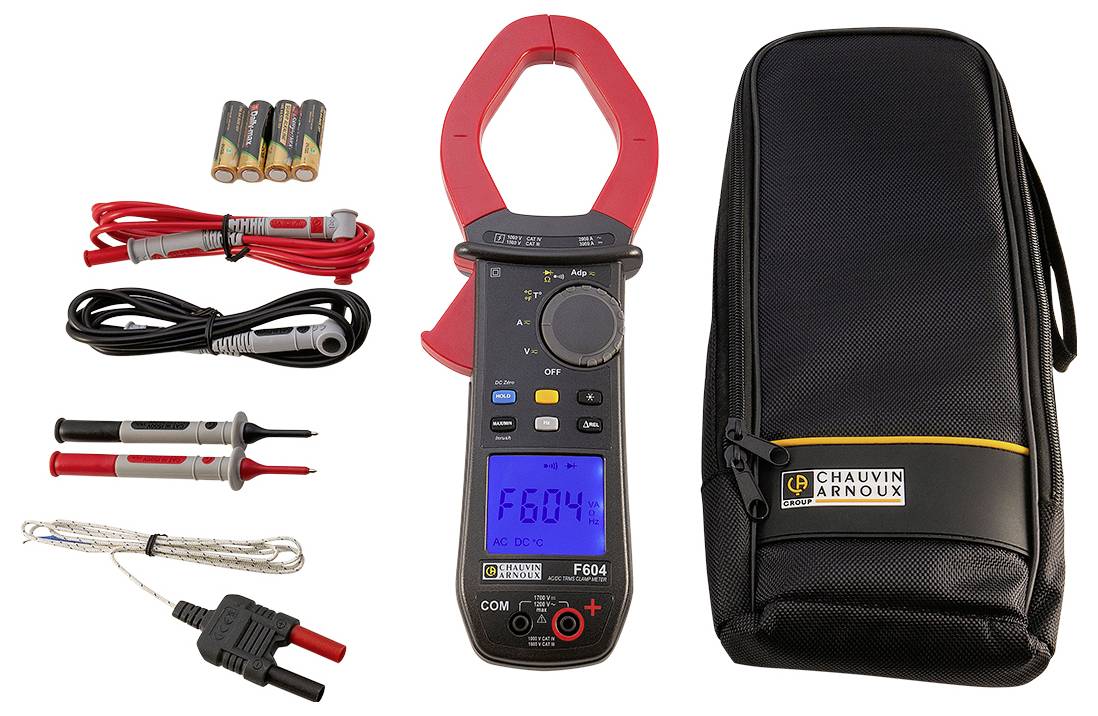

A digital clamp multimeter set with cables, battery pack, test probes, and a black carry case. Display shows 'F604'.

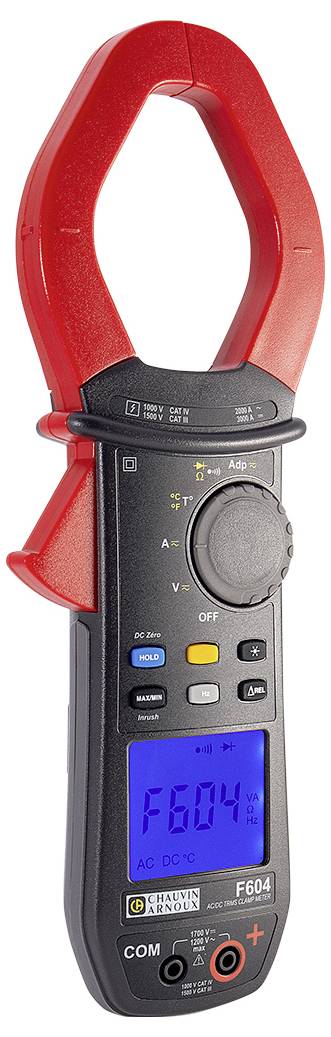

Digital calliper with red gripper, black housing and illuminated display, showing "604A". Used for AC/DC current measurements.

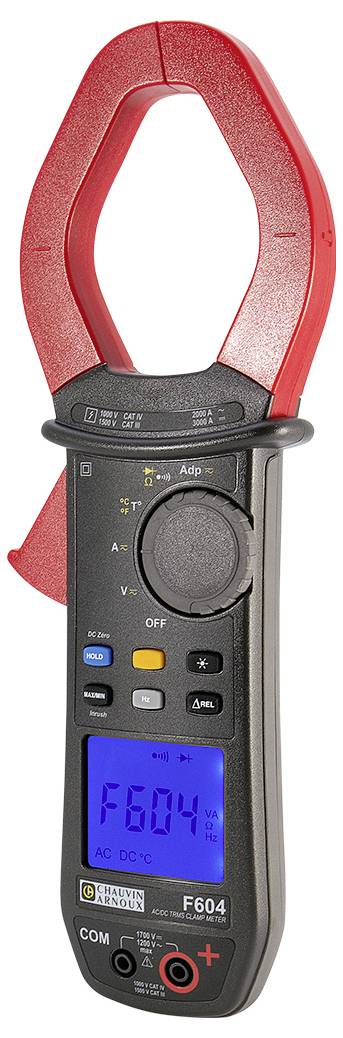

The image shows a digital clamp multimeter with a red clamp and a blue-illuminated display indicating the value 'F604'.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 17 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 805.00 / piece)
€ 805.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

F604 multi-use clamp-on ammeter

  • TRMS AC / DC Multiple measuring pliers for AC and DC applications with high currents up to 2000 A AC / 3000 A DC
  • Encapsulation-Ø: 60 mm
  • Meets the highest safety requirements of 1500 V CAT III / 1000 V CAT IV.
  • Suitable for photovoltaic applications thanks to the voltage measuring range up to 1200 V AC / 1700 V DC
  • With True Inrush Function: Identify start-up current from motors and power requirement of plants in a simple way
  • Intelligent adapter function for direct connection of measuring sensors with AC or DC voltage output for immediate display (Luxmeter, tachometer, ...)
  • BASIC FUNCTIONS V AC, V DC, A AC, A DC, FREQUENCY, Resistance, acoustic. Continuity check, diode test, temperature
  • Additional functions: Adapter function, MIN / MAX / HOLD, True Inrush, relative measurement

Technical specifications

  • Highest accuracy: 1% + 3 digit
  • Frequency measurement: Currents 5.0 Hz to 1000 Hz, voltages 5.0 Hz to 20.00 kHz
Voltage reading range DC (min.)

0.15 V

Product type

Clamp meter

Voltage DC reading range (max.)

1700 V

V AC reading range (min.)

0.15 V

V AC reading range (max.)

1700 V

Amperage reading range DC (min.)

0.25 A

A DC reading range (max.)

3000 A

A AC reading range (min.)

0.25 A

Amperage reading range AC (max.)

2000 A

Reading range - resistance

0.1 Ω to 99.99 kΩ

Basic accuracy

1 %

Measurement type (details)

True RMS

Height

296 mm

Width

111 mm

Length

41 mm

Weight

640 g

Manufacturer's standards (no certificate)

Reading category

CAT III 1500 V

CAT IV 1000 V

Voltage metering

AC

DC

Current reading

AC

DC

Type

F604

Display

Digital

Display (counts)

10000

Dim

(L x W x H) 41 x 111 x 296 mm

Features

Splashproof (IP54)

Opening range of current clamps

60 mm

UKCA

not relevant

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2887587 Chauvin Arnoux F604 Clamp meter Digital Splashproof (IP54) CAT III 1500 V, CAT IV 1000 V Display (counts): 10000

User & Safety Instructions

User & Safety Instructions 2887587 Chauvin Arnoux F604 Clamp meter Digital Splashproof (IP54) CAT III 1500 V, CAT IV 1000 V Display (counts): 10000

Description

With protection from electrical surges up to 12 kV the F600-series fulfills the highest safety requirements (CATIV 1000 V/CAT III 1500 V). It also has an increased protection class and can therefore be safely used in all low voltage systems.

The devices of the F600-series are suitable especially for plants of high power capacities, such as power distribution networks, in the chemical and petrochemical industries, metal processing, in the rail sector etc.
The pliers F604 is equipped with a fast, digital 12-bit TRMS recording system for a high measurement accuracy, independent of the signal form.

This text is machine translated.

Scope of delivery

  • Multif. Clamp-on ammeter F604
  • 1 carrying case
  • 1 set of test leads
  • 1 set of test probes
  • 1 K-Thermo element sensor
  • 4 x 1.5 V batteries
