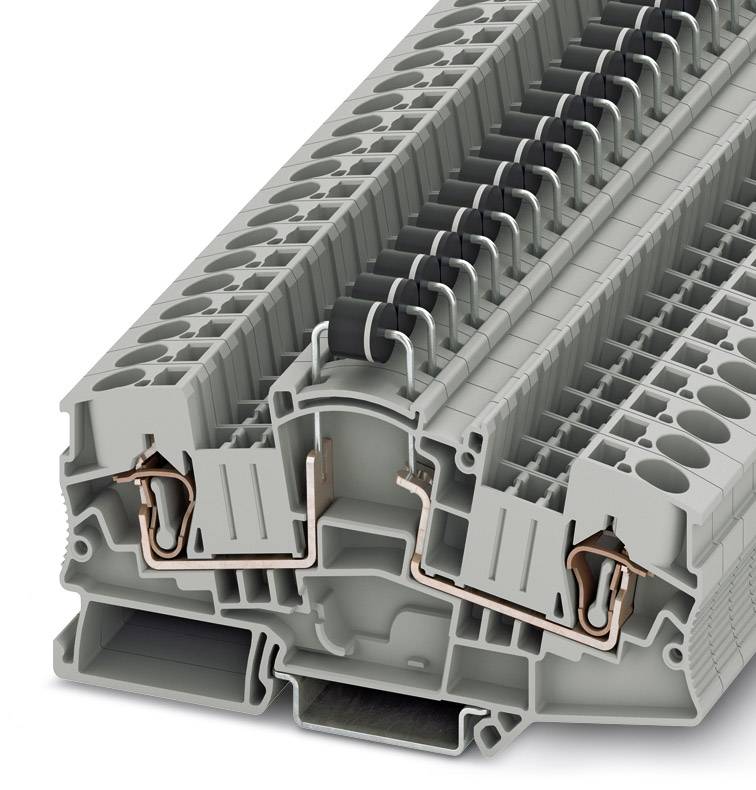

Image similar
Component terminal block STME 6-DIO/L-R HV 3035691 Phoenix Contact
Packaging type
Piece
Product type
Serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 8.90 / piece)
€ 445.00
incl. VAT
14-day return policy included
Highlights & Details
Component terminal block STME 6-DIO/L-R HV
- STME 6-DIO/L-R HV
Technical specifications
- Packaging type
Piece
- Product type
Serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Nominal voltage
1000 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3035691
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STME 6-DIO/L-R HV
- Dim
(L x W x H) 100.8 x 8.2 x 60 mm
- Width
8.2 mm
- Height
60 mm
- Length
100.8 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 583918 Component terminal block STME 6-DIO/L-R HV 3035691 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 583918 Component terminal block STME 6-DIO/L-R HV 3035691 Phoenix Contact
Description
Component terminal block, Connection method: Spring-cage connection, Cross section: 0.2 mm² -10 mm² , AWG: 24 - 10, Width: 8.2 mm, Color: gray
