Feed-through terminal block ST 2,5-QUATTRO BK 3037452 Phoenix Contact

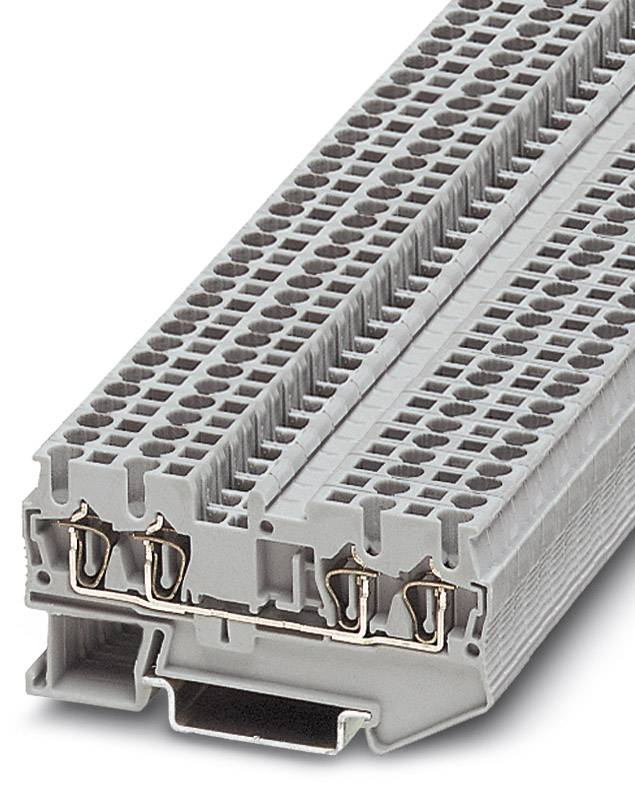

Grey terminal block with multiple connection points, used for secure connection and distribution of electrical wires.
Image similar
Packaging type
Piece
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
119 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 2.00 / piece)
€ 99.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block ST 2,5-QUATTRO BK

  • ST 2,5-QUATTRO BK

Technical specifications

Packaging type

Piece

Product type

Continuity

Features

NS 32/35 rail mount

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5.2 mm

No. of rows

1

Number of pins

4

Factory colour

Black

Nominal current

24 A

Nominal current - rounded value

24 A

Nominal voltage

800 V

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3037452

Content

50 pc(s)

Industrial packaging

Yes

Type

ST 2,5-QUATTRO BK

Dim

(L x W x H) 72 x 5.2 x 36.5 mm

Width

5.2 mm

Height

36.5 mm

Length

72 mm

Flammability rating

V0

Connector colour

Black

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 586215 Feed-through terminal block ST 2,5-QUATTRO BK 3037452 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 586215 Feed-through terminal block ST 2,5-QUATTRO BK 3037452 Phoenix Contact

Description

Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Width: 5.2 mm, Color: black, Mounting type: NS 35/7,5, NS 35/15
