Dahua Technology Solar panel DAHUA - 8W Type C SolarpanelÜberwachungskamera DH-PFE311-M0508
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.18
€ 29.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 6 Piece(s) available
Highlights & Details
Dahua 8W Solar Panel DH-PFE311-M0508 For Dahua Battery Powered Cameras - Maximum solar support round the clock year round
- 360°-adjustable wall bracket
- Highly efficient 8W solar panel for solar power the whole year
- 2m + 2m USB-C charging cable included
- Weatherproof according to IP66 - suitable for all weather conditions
Technical specifications
- Cell type: Monocrystalline silicon
- Main body material: Silicon/PC
- Thin-cut size 158.7 x 24.8 mm (LxB), layer layout 1 x 10
- Electrical Maximum Power 8 W.
- Operating voltage 5.0 V
- Operating current: 1.57 A
- Short circuit current 1.72 A
- Idle voltage: 6.8 V
- ≥23 % silicon chip conversion efficiency
- Power temperature coefficient: –0.42 %/K.
- Electricity temperature coefficient 0.04 %/K.
- Voltage-temperature-system - 0.3 %/K
- Operating temperature: -40°C to +85 (-40°F to +185°F)
- Operating humidity:<95% relative humidity
- Product type
Solar panel
- Transfer type
USB
Corded
- Width
168 mm
- Height
285.6 mm
- Depth
145.1 mm
- Weight
467 g
- Factory colour
Black
- Cable length
2 m
IP66
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3593714 Dahua Technology Solar panel DAHUA - 8W Type C SolarpanelÜberwachungskamera DH-PFE311-M0508
User & Safety Instructions
User & Safety Instructions 3593714 Dahua Technology Solar panel DAHUA - 8W Type C SolarpanelÜberwachungskamera DH-PFE311-M0508
Description

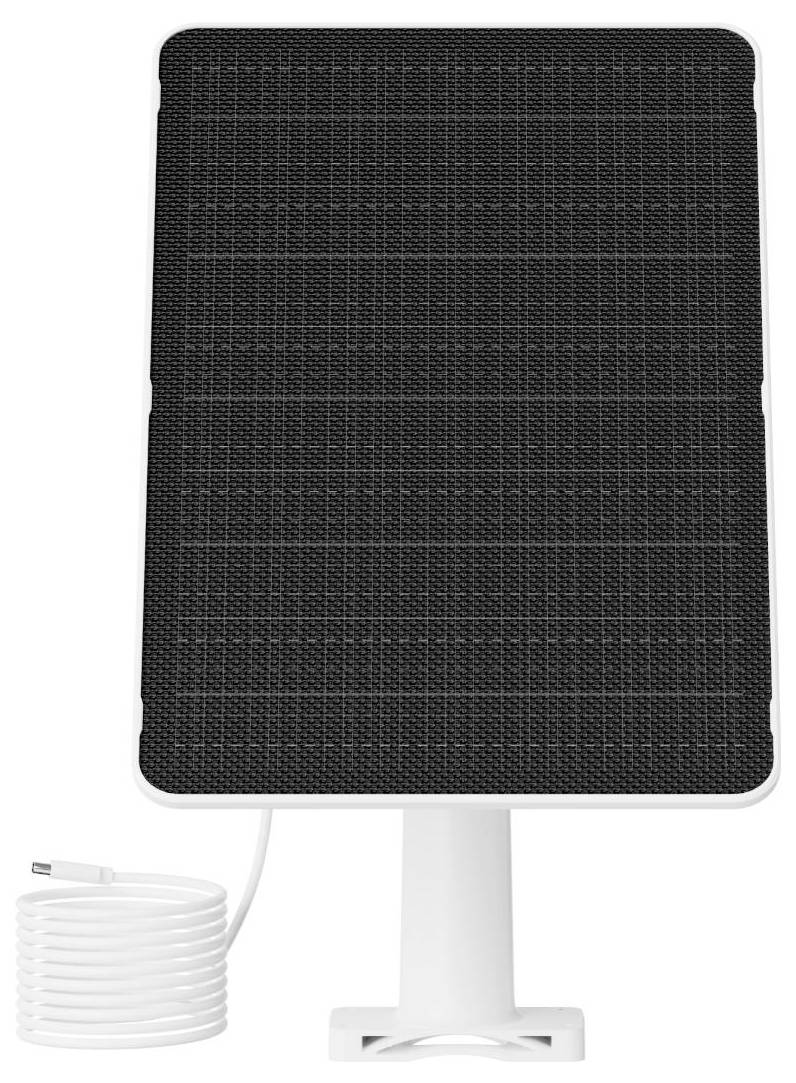

Dahua 8W solar panel DH-PFE311-M0508
For Dahua battery-powered cameras – maximum solar support 24 hours a day, year round
The Dahua 8W Solar Panel (DH-PFE311-M0508) is the ideal complement for your Dahua Apollo battery camera, if you want to use efficient solar energy throughout the year to provide a worry-free security for your home.
High energy efficiency
The Dahua 8W solar panel has a premium solar cell that offers a particularly high conversion efficiency of min. 23%. This ensures reliable performance and maximum energy yield even in changing light conditions and in weak sunny days, in order to charge your rechargeable battery cameras with solar energy.

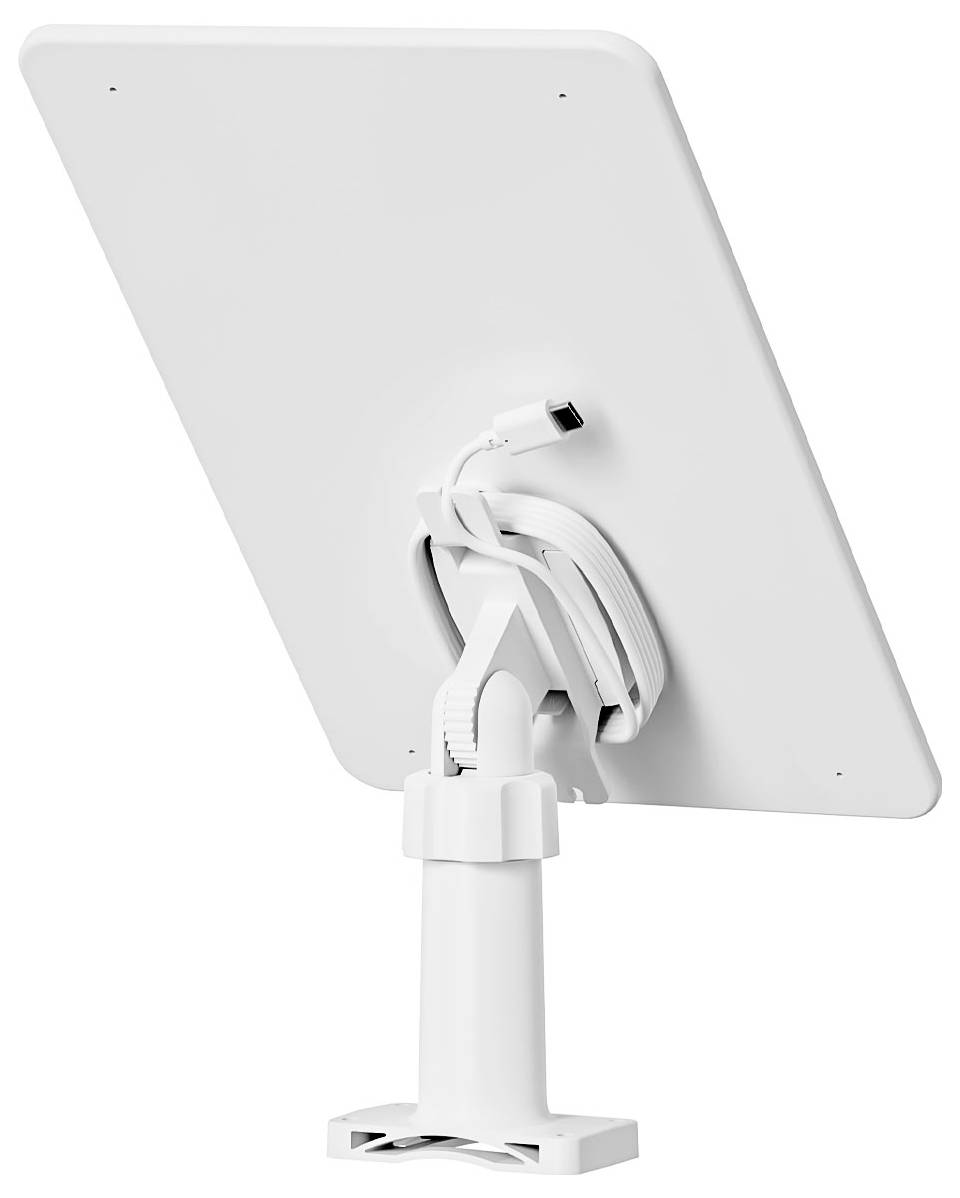

Innovative cable management
With the Hidden Cable Design, you have a hidden cable tray design, through which you can store the excess USB-C cable elegantly and cleanly.

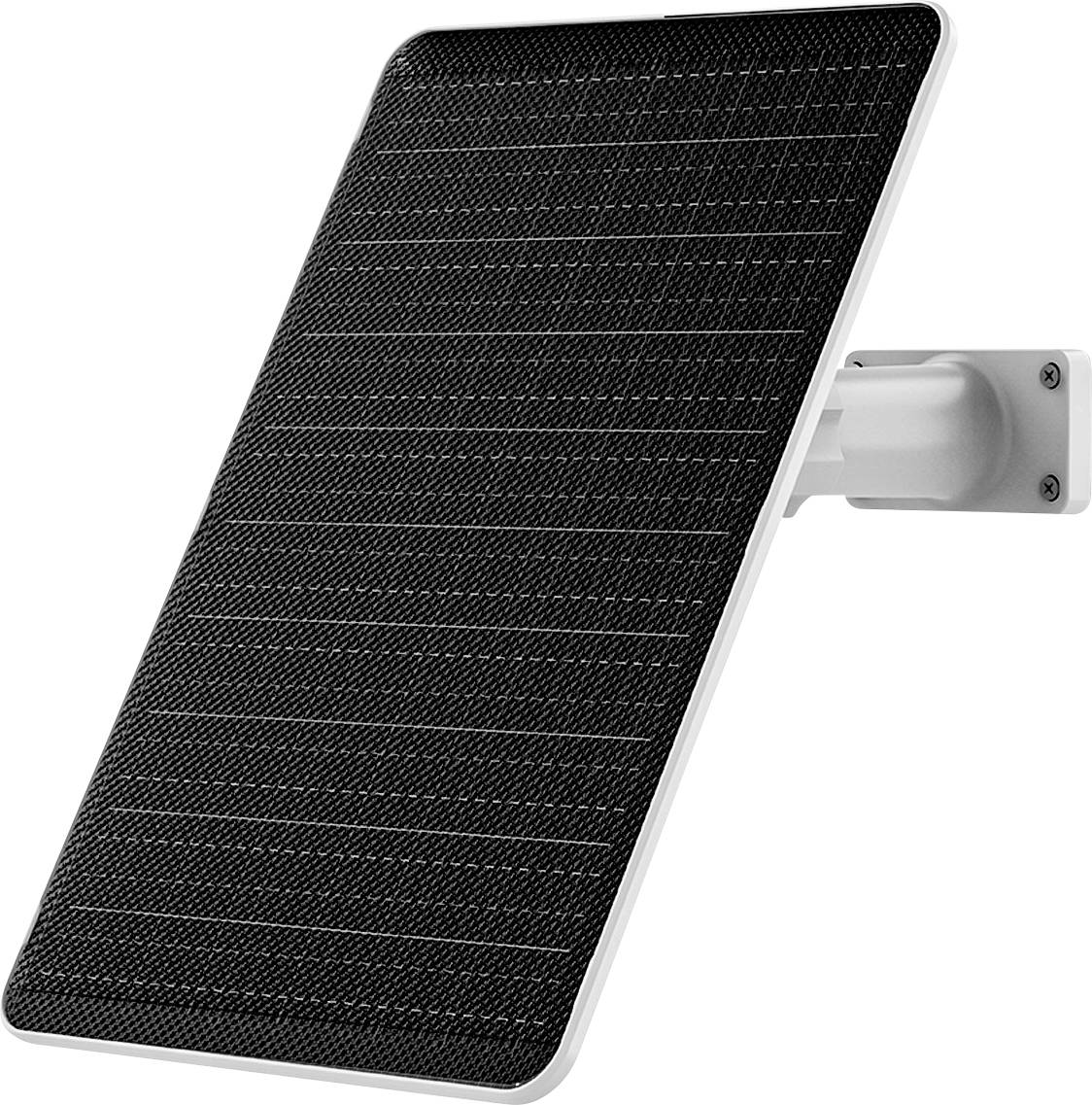

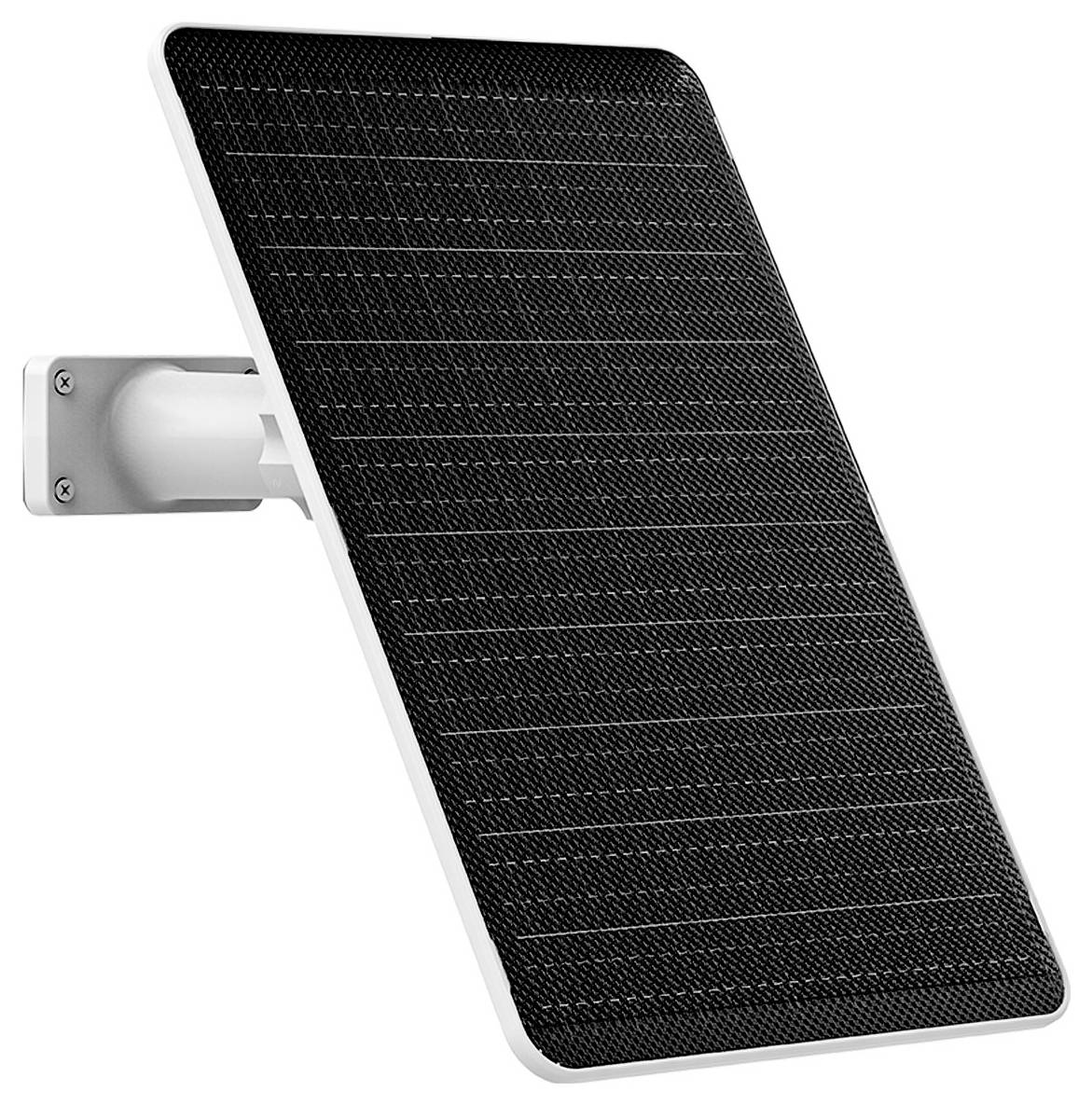

360°-adjustable wall bracket
With a 360° rotating base the holder can be flexibly aligned at all times, in order to be able to use the ideal solar radiation optimally.
Wide range of uses
The solar panel is Ideal for all Dahua Apollo battery cameras, as well as related systems that need a reliable solar power supply all year round.
This text is machine translated.
Scope of delivery
- Dahua 8 W solar panel DH-PFE311-M0508
- 2 m USB-C cable
- 2m USB-C Extension Cable
- Wall bracket
- Screw set
- Quick guide
- Additional documentation
Hints
For optimal performance, please ensure that the bracket is regularly kept free of dirt and that the orientation is adjusted according to the location conditions.
