Disconnect terminal block UTTB 4-TG 3044720 Phoenix Contact

Grey, modular terminal block with multiple connection options, for electrical connections in control cabinets.

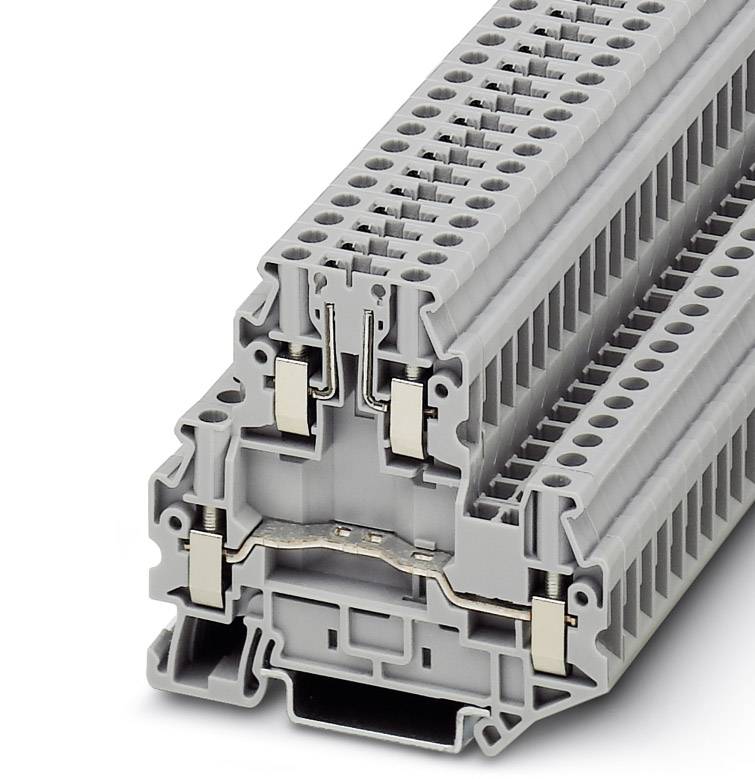

Image similar
Product type
N terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
61 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 6.30 / piece)
€ 315.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Disconnect terminal block UTTB 4-TG

  • UTTB 4-TG

Technical specifications

Product type

N terminal

Features

2-tier

Connection

Screws

Cross section (flexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

6 mm²

Cross section (inflexible) (min.)

0.14 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

26

AWG max.

10

Clamp width

6.2 mm

No. of rows

2

Number of pins

4

Factory colour

Grey

Nominal current

30 A

Nominal current - rounded value

30 A

Nominal voltage

500 V

Stripping length (max.)

9 mm

Manufacturer part #

3044720

Content

50 pc(s)

Industrial packaging

Yes

Type

UTTB 4-TG

Dim

(L x W x H) 69.9 x 6.2 x 64.4 mm

Width

6.2 mm

Height

64.4 mm

Length

69.9 mm

Contamination level

3

Flammability rating

V0

Connector colour

Grey

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 565898 Disconnect terminal block UTTB 4-TG 3044720 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565898 Disconnect terminal block UTTB 4-TG 3044720 Phoenix Contact

Description

Disconnect terminal block, Cross section:  0.14 mm² - 6 mm², AWG: 26 - 10, Connection type: Screw connection, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
