Name: Endress+Hauser RLN22 RLN22-8M1A 1 pc(s)
Brand: Endress+Hauser
SKU: 2989245
Availability: BackOrder

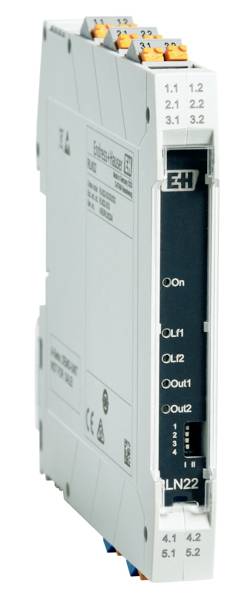

Slim electronic component with connections and labels 'On', 'Out1', 'Out2' on the front; Model EH LIN22.

Type

RLN22

Connection

Screw terminal

Output (voltage)

Relaissignalausgang

Operating voltage

19.20 - 30 V DC

Max. operating voltage

30 V DC

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Isolation amplifier Isolator / Barrier RLN22-8M1A ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec NC IIC GC Screw Terminals 1-channel, Changer

Approval: ATEX IECEx II(1)G [Ex ia Ga] IIC, II(1) D [Ex ia Da] IIIC, II3G Ex ec NC IIC GC
Channel: 1-channel, change-over
Electrical connection: Screw terminals

Technical specifications

Type: RLN22

Connection: Screw terminal

Output (voltage): Relaissignalausgang

Operating voltage: 19.20 - 30 V DC

Max. operating voltage: 30 V DC

Min. operating voltage: 19.20 V DC

Content: 1 pc(s)

Configuration: DIP switch

RoHS-compliant: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -40 °C

Supply voltage (num.): 24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2989245 Endress+Hauser RLN22 RLN22-8M1A 1 pc(s)

Description

The RLN22 is a compact 24 V DC isolation amplifier for transmission of binary switching signals. 1- or 2-channel isolation amplifier with relay signal output, galvanic 3-way-isolation. The monitoring of input circuits for line faults such as open-circuit and short-circuit (LFD) of sensors can be switched off. Input for proximity switch according to NAMUR (EN60947-5-6) and open contacts or contacts with ohmic coupling elements. Cable fault monitoring of input circuits or mechanical switch contacts. Output-side relay contacts, direction of effect (working or quiescent current behavior) can be selected via DIP-switch. Group fault reporting via DIN rail bus connector on the power and fault signaling module.

This text is machine translated.
