Name: Endress+Hauser RLN22 RLN22-AA2B 1 pc(s)
Brand: Endress+Hauser
SKU: 2989244
Availability: BackOrder

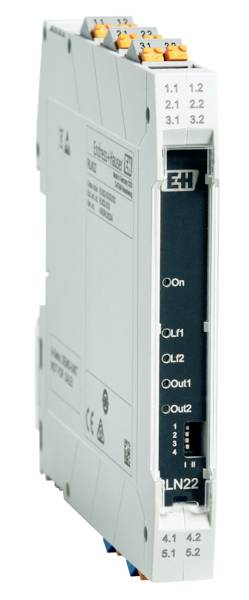

A slim control cabinet module with connections at the top and status indicators on the side. Used in automation technology.

Type

RLN22

Connection

Spring-loaded terminal

Output (current)

Relaissignalausgang

Operating voltage

19.20 - 30 V DC

Max. operating voltage

30 V DC

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Isolation amplifier, isolator / barrier RLN22-AA2B Ex-free range Push-in terminals 2-channel, NO contact

Approval: Ex-free range
Channel: 2-channel, closer
Electrical connection: Push-in terminals

Technical specifications

Type: RLN22

Connection: Spring-loaded terminal

Output (current): Relaissignalausgang

Operating voltage: 19.20 - 30 V DC

Max. operating voltage: 30 V DC

Min. operating voltage: 19.20 V DC

Input signal (current): binären Schaltsignalen

Content: 1 pc(s)

Configuration: DIP switch

RoHS-compliant: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -40 °C

Supply voltage (num.): 24 V DC

Operating voltage U(B): 24 V DC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2989244 Endress+Hauser RLN22 RLN22-AA2B 1 pc(s)

Description

The RLN22 is a compact 24 V DC isolation amplifier for transmission of binary switching signals. 1- or 2-channel isolation amplifier with relay signal output, galvanic 3-way-isolation. The monitoring of input circuits for line faults such as open-circuit and short-circuit (LFD) of sensors can be switched off. Input for proximity switch according to NAMUR (EN60947-5-6) and open contacts or contacts with ohmic coupling elements. Cable fault monitoring of input circuits or mechanical switch contacts. Output-side relay contacts, direction of effect (working or quiescent current behavior) can be selected via DIP-switch. Group fault reporting via DIN rail bus connector on the power and fault signaling module.

This text is machine translated.
