Ersa i-TOOL TRACE Soldering iron 24 V 150 W
EAN:
Part number:
Item no:
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Soldering iron ERSA i-TOOL TRACE /24V 150W

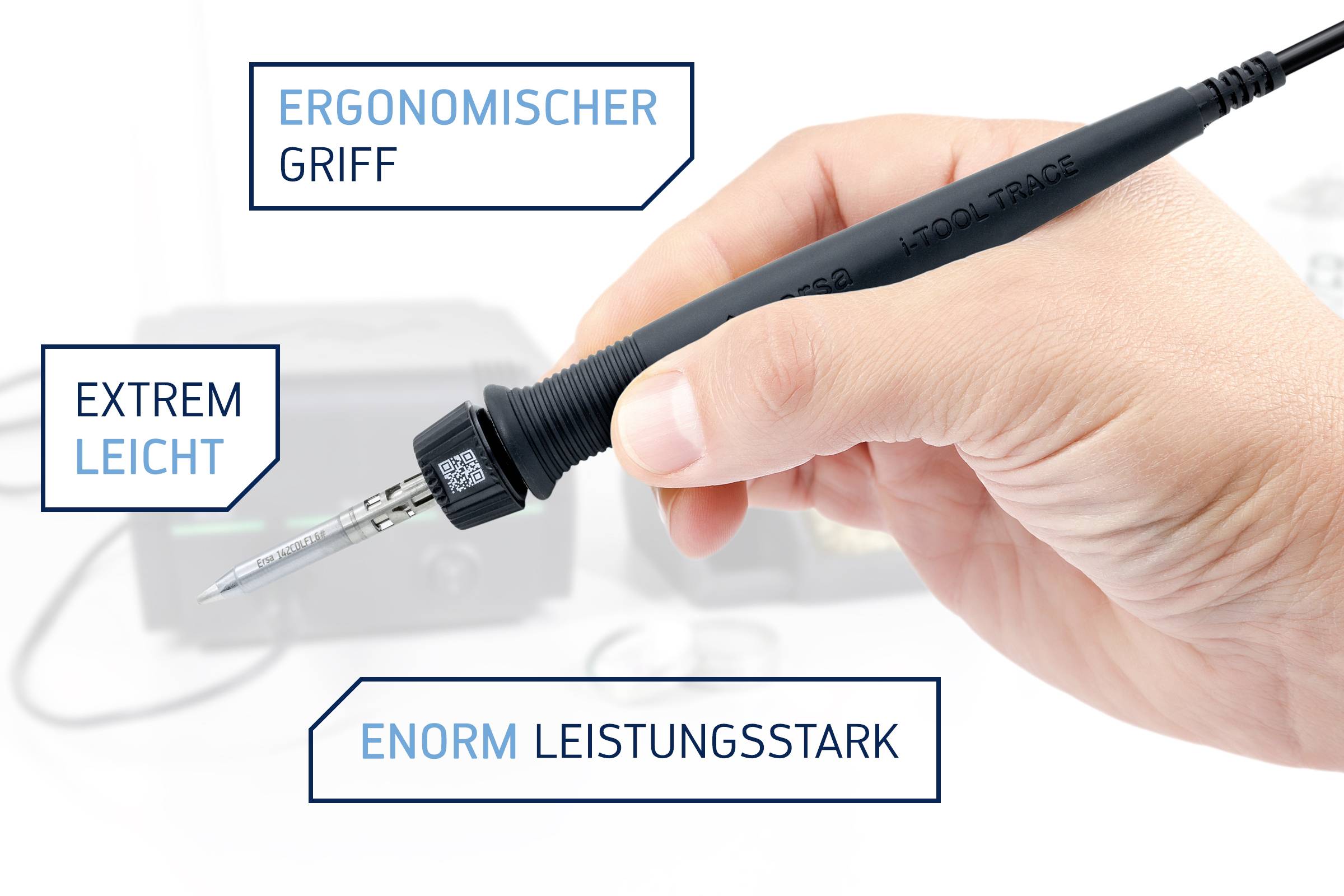

- extremely light and powerfulSENSOTRONIC temperature controlStandby functionTip´n´Turn tip change
Technical specifications
- Cable length approx. 1.2mHandle length without grommet: Approx. 116mmHandle length without grommet until the end of the soldering tip: Approx. 167mmDiameter in the middle approx. 15mmDiameter of handle at tip end: Approx. 19mm
- Product type
Soldering iron
- Max. power
150 W
- Weight
0.7 kg
- Operating voltage
24 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2619891 Ersa i-TOOL TRACE Soldering iron 24 V 150 W
Description

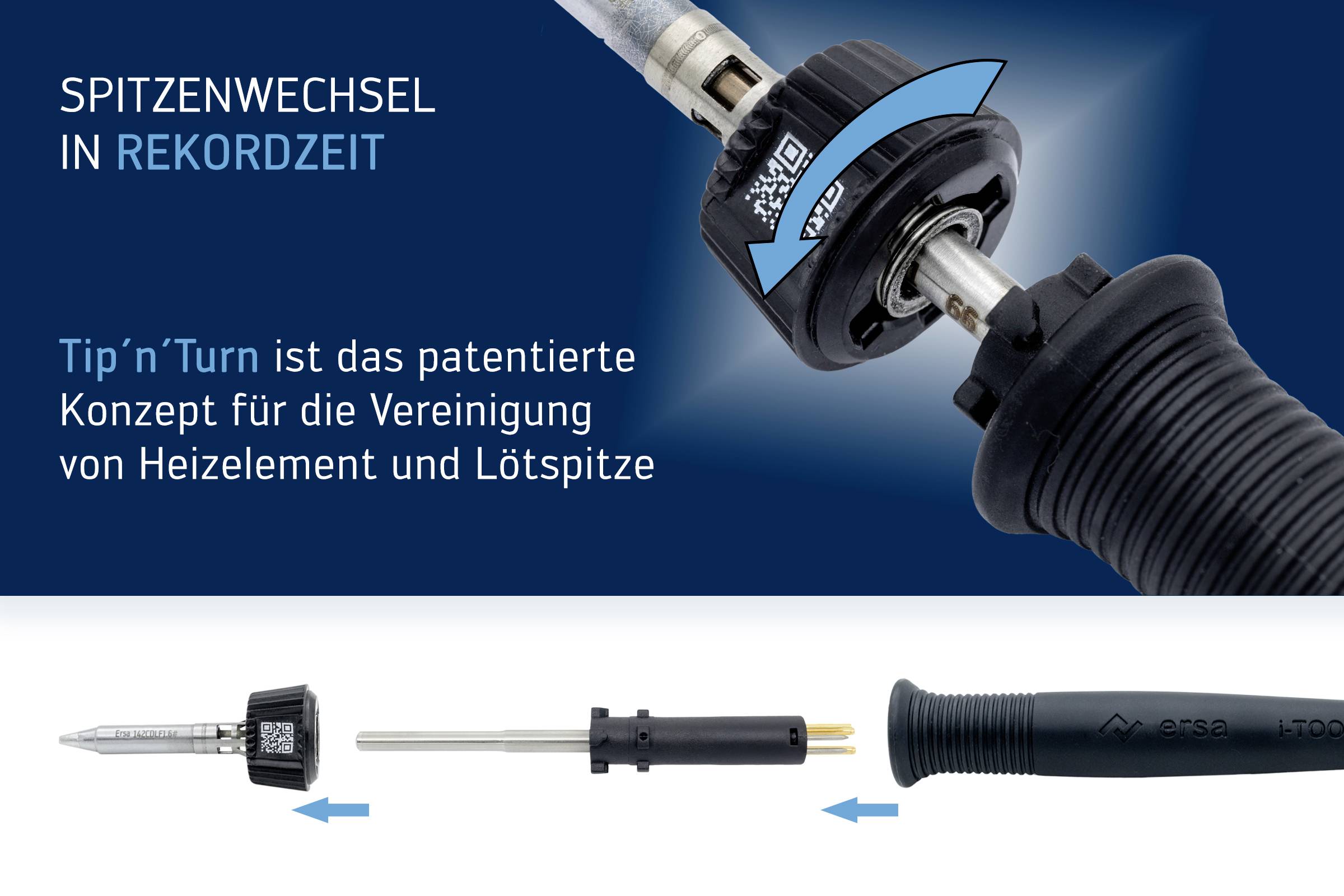

ERSA replacement soldering iron tool Trace 150 Watt for i-Con TRACE soldering stationThe extremely light and powerful fine soldering iron i-TOOL TRACE has 150 W power and SENSOTRONIC temperature control. This ensures a very fast heating up and an even faster heating, which was a stable temperature profile.The thermally optimized top design and a variety of different tip geometries bring the heat exactly to the solder joint and cover a variety of applications.Tip-and-Turn release for quick and easy tip changes, even in hot condition, by hand or with the help of the 0A58 shelf stand.The heating element and the tips can be changed separately, so that each part needs to be replaced in a resource-efficient manner only when it is really necessary.The automatic standby function ensures economical and energy-efficient soldering. The adjustable standby parameters (time, temperature) ensure an optimally coordinated operation of the soldering iron without unnecessary waiting times.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Soldering iron i-TOOL TRACE
- Soldering tip ERSADUR 1.6 mm
