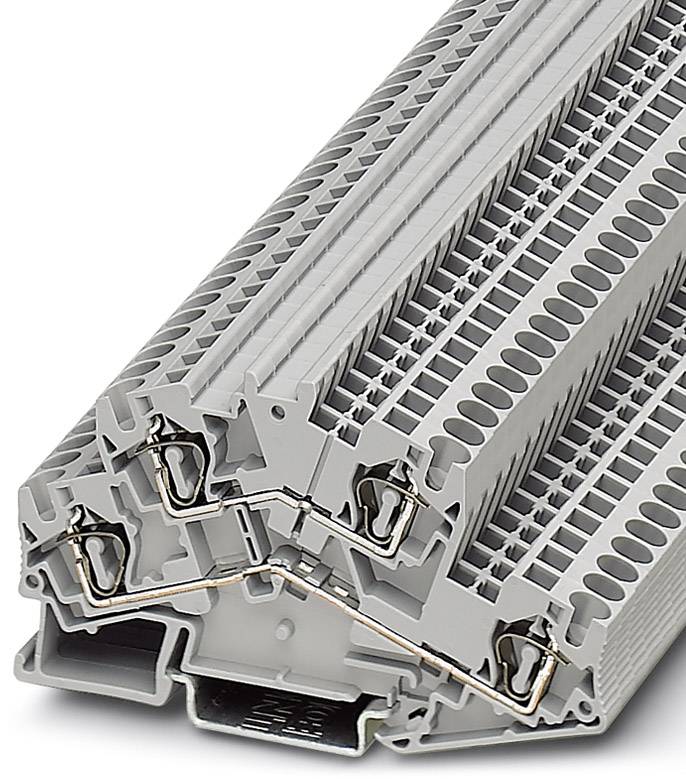

Image similar
Feed-through terminal block STTBS 4 3035056 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 3.50 / piece)
€ 174.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
10
- Clamp width
6.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Grey
- Nominal current
28 A
- Nominal current - rounded value
28 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3035056
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
STTBS 4
- Dim
(L x W x H) 92.4 x 6.2 x 55 mm
- Width
6.2 mm
- Height
55 mm
- Length
92.4 mm
- Contamination level
3
- Flammability rating
V0
- Connector colour
Grey
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565959 Feed-through terminal block STTBS 4 3035056 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565959 Feed-through terminal block STTBS 4 3035056 Phoenix Contact
Description
Feed-through terminal block, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Connection type: Spring-cage connection, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
