Feed-through terminal block STTBS 4-PV 3035085 Phoenix Contact

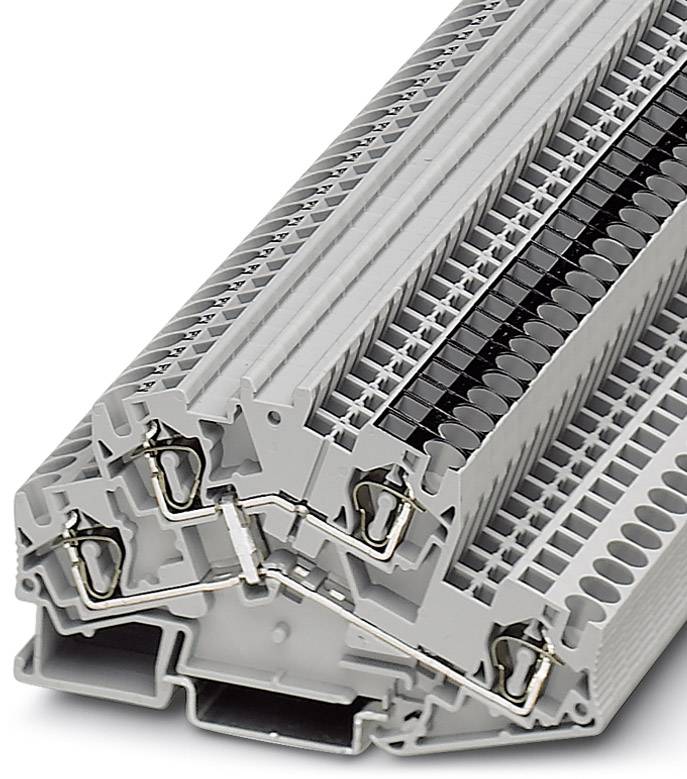

A grey terminal block with multiple connection points for wiring electrical components, horizontal view.
Image similar
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 6.38 / piece)
€ 319.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block STTBS 4-PV

  • STTBS 4-PV

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Connection

Pull spring

Configuration

Double

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

28

AWG max.

10

Clamp width

6.2 mm

No. of rows

2

Number of pins

4

Factory colour

Grey

Nominal current

28 A

Nominal current - rounded value

28 A

Nominal voltage

500 V

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3035085

Content

50 pc(s)

Industrial packaging

Yes

Type

STTBS 4-PV

Dim

(L x W x H) 92.4 x 6.2 x 55 mm

Width

6.2 mm

Height

55 mm

Length

92.4 mm

Contamination level

3

Flammability rating

V0

Insulation material

PA

Insulation

PA

Documents & Downloads

Datasheet

Datasheet 565962 Feed-through terminal block STTBS 4-PV 3035085 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565962 Feed-through terminal block STTBS 4-PV 3035085 Phoenix Contact

Description

Feed-through terminal block, Cross section:  0.08 mm² - 6 mm², AWG: 28 - 10, Connection type: Spring-cage connection, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
