Image similar

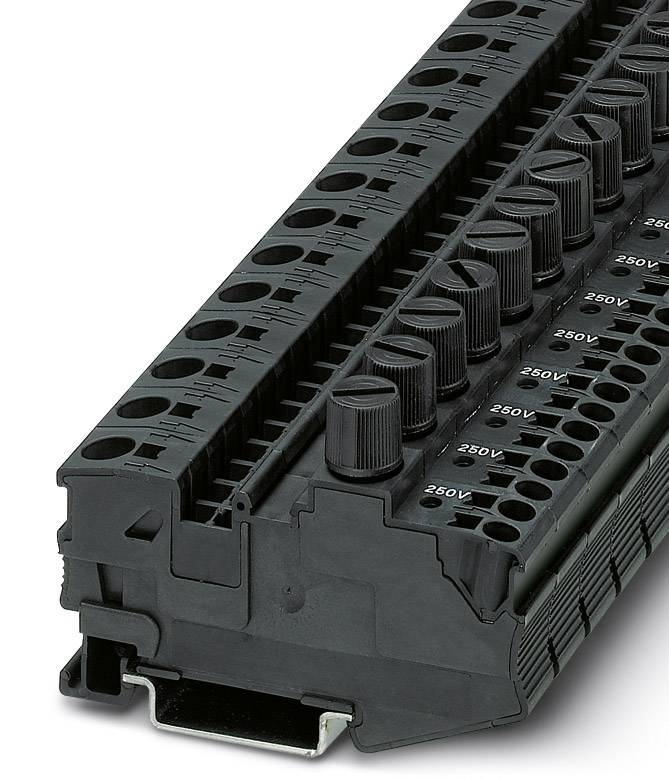

Fuse modular terminal block DT 6/2,5-DREHSILA 250 (5X20) 3034264 Phoenix Contact
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 25 pc(s))
Total (€ 13.00 / piece)
€ 325.00
incl. VAT
Only 4 Set(s) available
Highlights & Details
Fuse modular terminal block DT 6/2,5-DREHSILA 250 (5X20)
- DT 6/2,5-DREHSILA 250 (5X20)
Technical specifications
- Packaging type
Piece
- Product type
Fuse serial terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
10
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Black
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
500 V
- Stripping length (max.)
12 mm
- Manufacturer part #
3034264
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
DT 6/2,5-DREHSILA 250 (5X20)
- Dim
(L x W x H) 71.5 x 12.2 x 51.3 mm
- Width
12.2 mm
- Height
51.3 mm
- Length
71.5 mm
- Flammability rating
V0
- Connector colour
Black
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718497 Fuse modular terminal block DT 6/2,5-DREHSILA 250 (5X20) 3034264 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718497 Fuse modular terminal block DT 6/2,5-DREHSILA 250 (5X20) 3034264 Phoenix Contact
Description
Fuse terminal block for cartridge fuse insert, cross section: 0.5-10 mm², AWG: 20-8, width: 12.2 mm, color: Black
