GW Instek AFG-3081 Mains-powered 1 µHz - 80 MHz 1-channel Sinus, Rectangle, Triangle, Pulse, Noise, Arbitrary

Frequency generator with digital display showing sine wave at 500 MHz and 500 mVp-p amplitude. Control panel with buttons and connections.
An arbitrary function generator with a digital display showing a sine wave and frequency information.
A function generator with a display showing a sine wave and parameters such as frequency 50 MHz and amplitude 50 mV.
A function generator displays a sine wave on the screen, along with frequency and amplitude settings on a control panel.

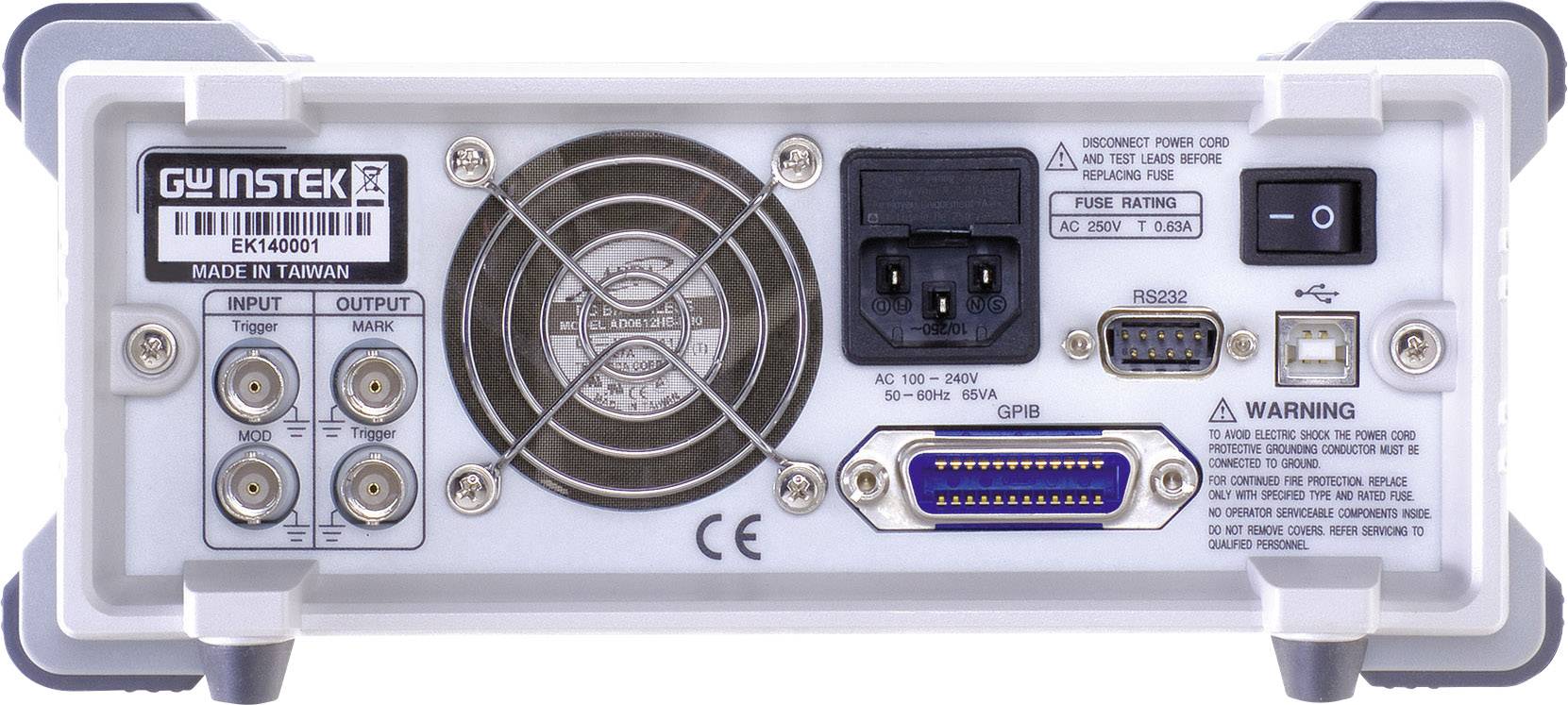

Back of an electronic device with various ports and a fan in the centre. Manufacturer label and warning notices are visible.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3,539.00 / piece)
€ 3,539.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • AM/FM/PWM Modulation: 2 MHz - 20 kHz
  • FSK Modulation: 2 MHz - 100 kHz
  • Display resolution (RGB): 480 x 272 pixels
Signal output type

Sine / square / ramp / pulse / noise / DC / sin(x)/X/Exp increase waste/Negative ramp/Arbitrary Signal

Product type

Mains-powered

Frequency range

1 µHz - 80 MHz

Signal output types

Sinus

Rectangle

Triangle

Pulse

Noise

Arbitrary

Frequency range (sine)

1 µHz - 80 MHz

Frequency range square wave

1 µHz - 80 MHz

Square wave slew rate

<8 ns

Display

LCD

Frequency range triangle

1 µHz - 1 MHz

Manufacturer's standards (no certificate)

Internal modulation

AM/FM/FSK/PWM

External modulation

AM/FM/FSK/PWM

Trigger (synchronous)

TTL

Dim

(W x H) 265 mm x 107 mm

Weight

4 kg

No. of channels

1-channel

Max. frequency

80 MHz

Min. frequency

1 µHz

Features

Modulation

Width

265 mm

Height

107 mm

Interfaces

GPIB

USB

LAN

Voltage supply

Mains

Type

AFG-3081

Documents & Downloads

Datasheet

Datasheet 123759 GW Instek AFG-3081 Mains-powered 1 µHz - 80 MHz 1-channel Sinus, Rectangle, Triangle, Pulse, Noise, Arbitrary

User & Safety Instructions

User & Safety Instructions 123759 GW Instek AFG-3081 Mains-powered 1 µHz - 80 MHz 1-channel Sinus, Rectangle, Triangle, Pulse, Noise, Arbitrary

Conformity certificate

Conformity certificate 123759 GW Instek AFG-3081 Mains-powered 1 µHz - 80 MHz 1-channel Sinus, Rectangle, Triangle, Pulse, Noise, Arbitrary

Download

Download 123759 GW Instek AFG-3081 Mains-powered 1 µHz - 80 MHz 1-channel Sinus, Rectangle, Triangle, Pulse, Noise, Arbitrary

Download 123759 GW Instek AFG-3081 Mains-powered 1 µHz - 80 MHz 1-channel Sinus, Rectangle, Triangle, Pulse, Noise, Arbitrary

Description

Features

  • USB host
  • Adjustable pulse/pause ratio for square-wave signal
  • Setting the waveform parameters via keyboard and rotary knob
  • Simultaneous display of parameters and waveform (WYSIWYG)
  • 10 3.1.2 memory slots
  • 10 non-volatile 1 Mpts signal shape-memory
  • On-screen help.
  • This text is machine translated.

Scope of delivery

  • Measuring cable (BNC-BNC)
  • Power cord
  • Operating Instructions (GB)
  • Quick guide.

Hints

The PC ® software for creating the arbitrary signal is available in the download area in the Internet.
