Hensel 62000294 Junction box Halogen-free, Sealable, Weather-proof (L x W) 93 mm x 93 mm 1 pc(s)

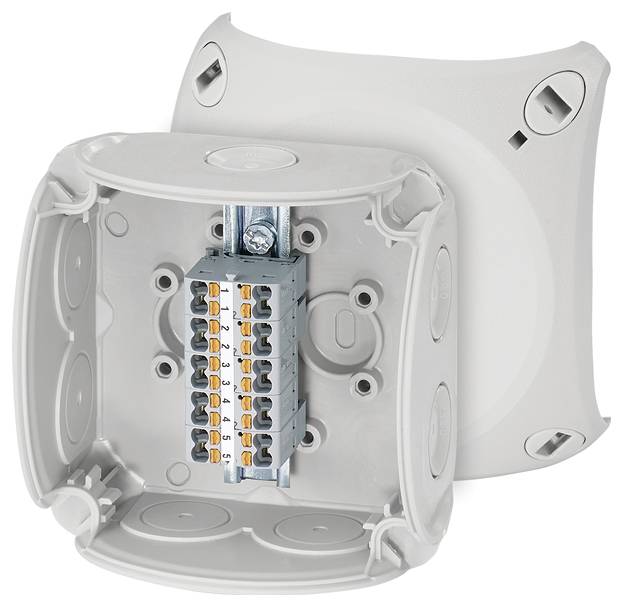

A grey cable junction box with an open lid, revealing a terminal block with multiple connection points inside, suitable for electrical wiring.

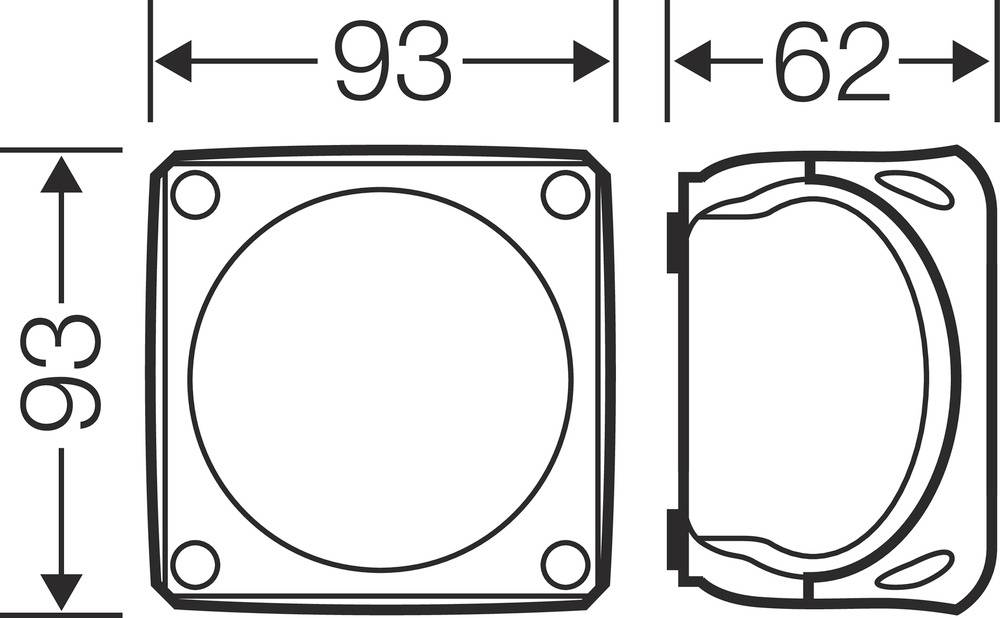

Technical drawing of a square object with dimensions and a circular inner area. Dimensions: 93x93 and 62 width.
1/2
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
30 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 29.99 / piece)
€ 29.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Stackable: no.
  • Number of introductions: 8
  • Rated insulation voltage UI: 450 V.
  • Assembly: Terminal
  • Lid mounting: Screwed
  • Introduction from behind: Yes
  • Operating temperature: -25..40 °C.
  • Shape: Square
  • Max. Conductor cross-section 2 mm²
  • Surface: Untreated
  • IP66 protection rating
  • Pourable: no.
  • Casting compound supplied: no.
  • Material: Plastic
Product type

Junction box

Features

Halogen-free

Sealable

Weather-proof

Mounting type

Surface-mount

Content

1 pc(s)

Factory colour

Grey

Dim

(L x W) 93 mm x 93 mm

Length

93 mm

Width

93 mm

Depth

62 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2295874 Hensel 62000294 Junction box Halogen-free, Sealable, Weather-proof (L x W) 93 mm x 93 mm 1 pc(s)

Description

Cable junction box made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. With push-in socket terminal technology up to 2.5 mm², 5-pin and 4 clamping points per pole. Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane. With cover strap.
