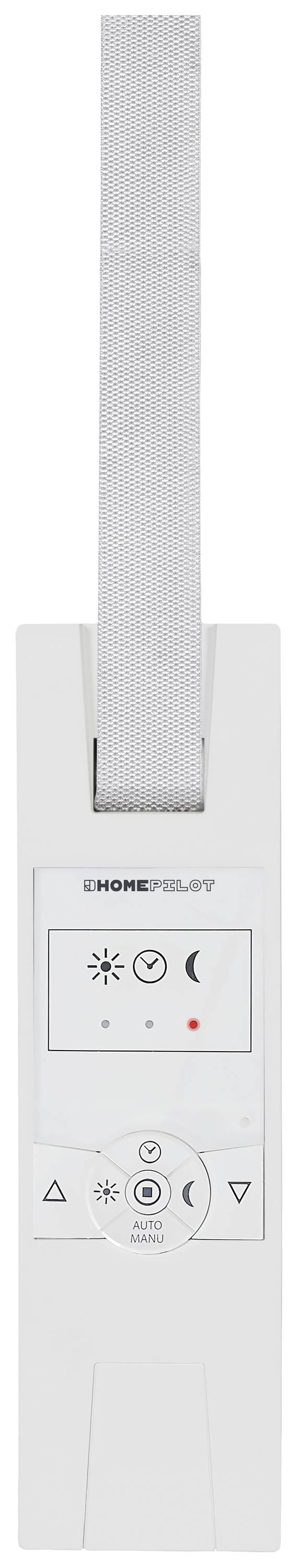

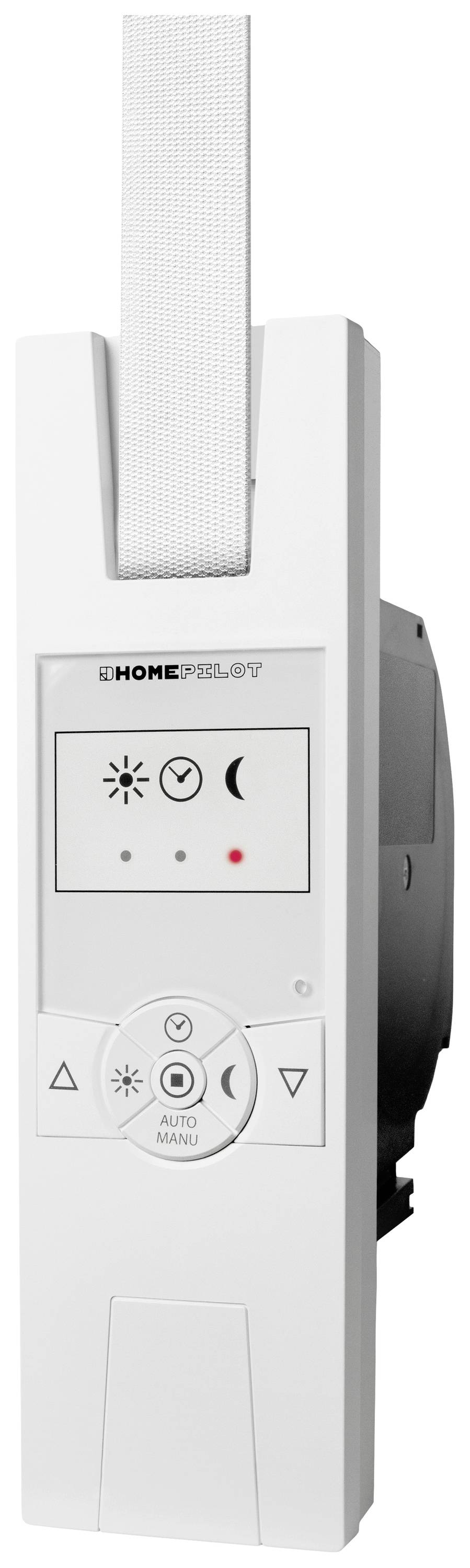

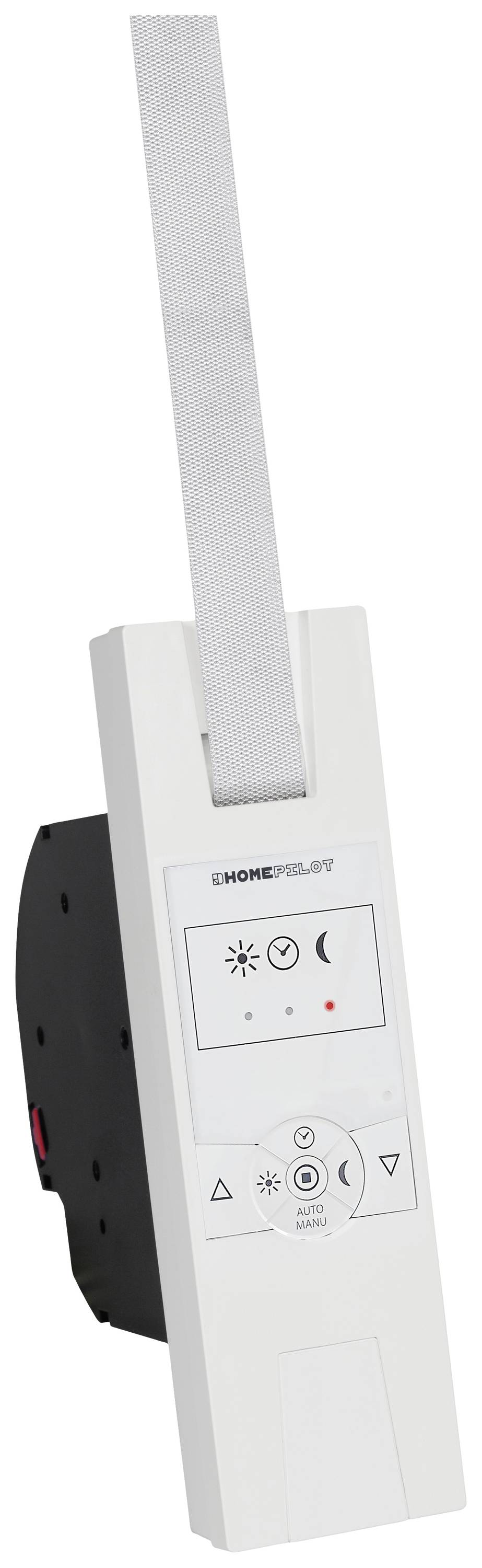

HOMEPILOT 10131545 RolloTron classic - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount
EAN:
Part number:
Item no:
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Highlights & Details
HOMEPILOT Electric belt winder RolloTron classic - Minigurt 15 mm
- Drive and control in one device.Memory functionDisplay with illuminated symbol-LEDsMax. Traction output 45 kgFor a belt width of 15 mm
Technical specifications
- Delayed travel 0.4 UMax. Switching times 2Operation at: + 0 °C to + 40 °C.Connection cable: Cable length 1.5 m.Belt length max. 7.6 m.
- Product type
Electric belt winder
- Belt width
15 mm
- Nominal torque
10 Nm
- Weight
1001 g
- Mounting type
Flush mount
- Nominal power
70
- Operating voltage
230 V
- Aperture size
60 x 211 x 27 mm
- Factory colour
Ultra white
- Assembly dimensions
35 x 139 x 132 mm
- Dim
(W x H x D) 60 x 211 x 166 mm
- Hub
Not required
- Belt length
7.6 m
- Width
60 mm
- Height
211 mm
- Depth
166 mm
- Tensile force (max.)
45 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2827215 HOMEPILOT 10131545 RolloTron classic - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount
Warranty Terms
Warranty Terms 2827215 HOMEPILOT 10131545 RolloTron classic - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount
Description
The RolloTron classic Miniwinder is perfect for controlling your shutters at the push of a button. The belt winder is specially designed for flush-mounting and is universally applicable.The blind winder RolloTron classic Miniwinder appears in a modern design. The intuitive display with illuminated symbol LEDs makes controlling the roller shutter belt winder child's play.Equipped with a memory function, it repeats the opening and closing times in a 24-hour cycle – so you can operate your shutters automatically in the morning and evening. Pretty comfortable!In addition, the electric belt winder fits in all common winder boxes from a width of 36 mm and can be easily connected to the 230 V power supply via a Euro connector. The soft-start and soft-stop function enables a smooth run with Hohem comfort.You can control the dependent upon the sun via our solar sensor.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Belt winder RolloTron Classic Miniwinder
- 2 x mounting screws (4 x 55 mm)
- Release clip (in housing)
- Connection cable with Euro plug
- Winding wheel compartment cover
- Cover plate
- Strain relief including mounting screws.
