Name: HOMEPILOT 10141545 RolloTron classic smart - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount
Brand: HOMEPILOT
SKU: 2827228
Availability: BackOrder

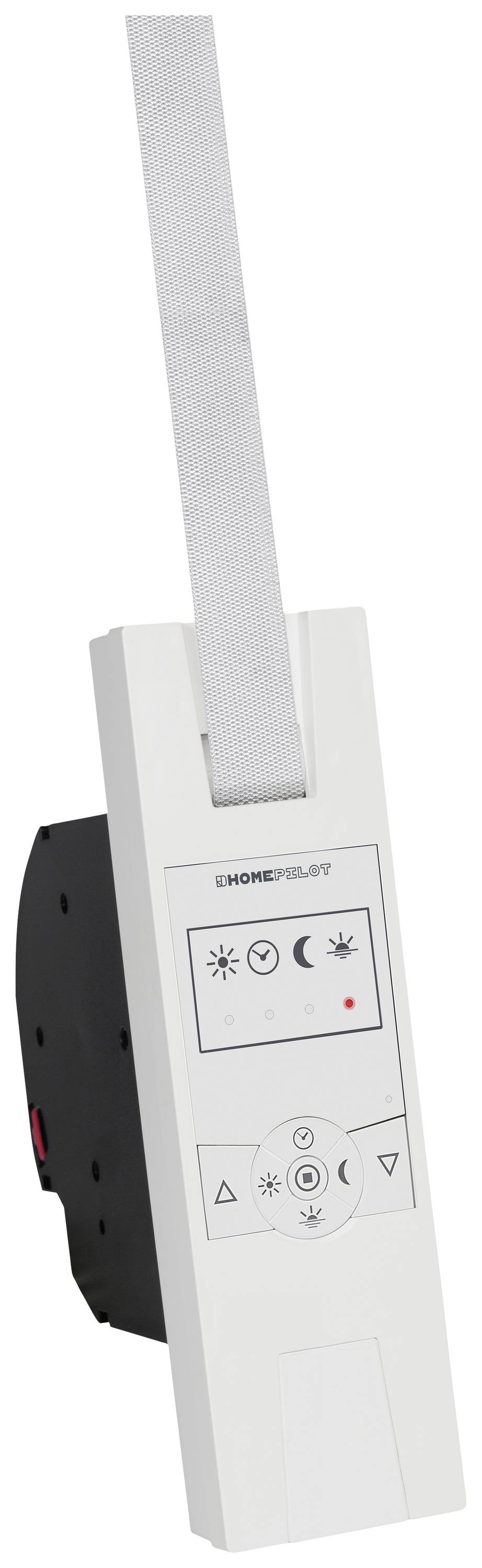

A white control panel with buttons for operating a roller blind, displaying symbols for Up, Down and Stop, along with a small LED indicator.

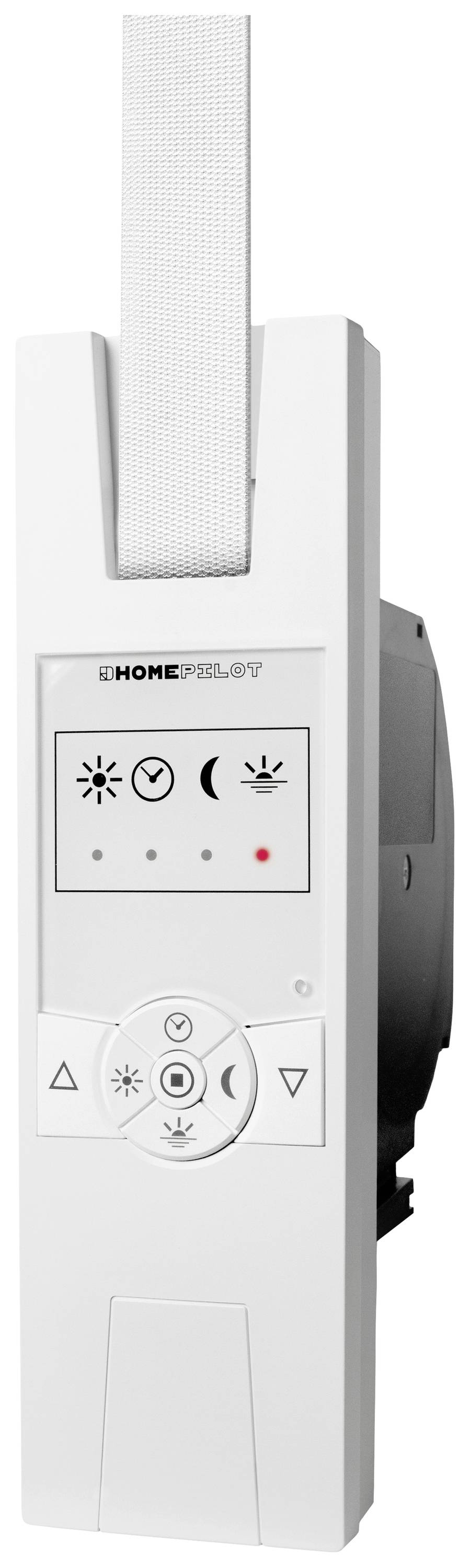

A motorised roller blind control panel with buttons for 'Open', 'Close', and 'Stop'. Includes symbols for sunlight and night.

1/2

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HOMEPILOT Electric belt winder RolloTron classic smart - Minigurt 15 mm

Drive and control in one device.Manual control is possible on the deviceExtensive automatic functions and control via APP in combination with gateway premiumMax. Traction output 45 kgFor a belt width of 15 mm

Technical specifications

Power supply voltage 230 V/50 Hz, 60 HzProtection class: IIProtection class IP20 (dry rooms only)Standby consumption: 0.6 W.4 min. short-term operationDelayed travel 0.4 UTransmission frequency 434.5 MHzTransmitted power 10 mW max.Range: In buildings approx. 10 - 15 m (depending on the construction material)Operation at: +0°C to +40°C.Smart devices: Max. 20Belt length max. 7.6 m.

Product type: Electric belt winder

Belt width: 15 mm

Nominal torque: 10 Nm

Weight: 1001 g

Mounting type: Flush mount

Nominal power: 70

Operating voltage: 230 V

Aperture size: 60 x 211 x 27 mm

Factory colour: Ultra white

Assembly dimensions: 35 x 139 x 132 mm

Dim: (W x H x D) 60 x 211 x 166 mm

Hub: Not required

Data exchange: Bidirectional (bi)

Belt length: 7.6 m

Width: 60 mm

Height: 211 mm

Depth: 166 mm

Tensile force (max.): 45 kg

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Belt width

Mounting type

Nominal torque

HOMEPILOT 10141545 RolloTron classic smart - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount

Item no:2827228

Dispatches on Thu 5 Nov

Conrad Electronic

This article

15 mm

Flush mount

10 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

HOMEPILOT 10112345 RolloTron pure Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827242

Available soon

Conrad Electronic

23 mm

Flush mount

10 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

HOMEPILOT 10122345 RolloTron pure smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827225

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

23 mm

Flush mount

10 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

HOMEPILOT 10131545 RolloTron classic - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount

Item no:2827215

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

15 mm

Flush mount

10 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

HOMEPILOT 10132345 RolloTron classic Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827214

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

23 mm

Flush mount

10 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

HOMEPILOT 10132360 RolloTron classic - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount

Item no:2827216

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

23 mm

Flush mount

14 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

HOMEPILOT 10142345 RolloTron classic smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827226

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

23 mm

Flush mount

10 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

HOMEPILOT 10142360 RolloTron classic smart - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount

Item no:2827227

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

23 mm

Flush mount

14 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 255.00^*

HOMEPILOT 10151530 RolloTron pure - AP Minigurt Electric belt winder 15 mm Tensile force (max.) 30 kg Surface-mount

Item no:2827221

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

15 mm

Surface-mount

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

HOMEPILOT 10152330 RolloTron pure - AP Electric belt winder 23 mm Tensile force (max.) 30 kg Surface-mount

Item no:2827220

Dispatches on Thu 5 Nov

Conrad Electronic

23 mm

Surface-mount

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2827228 HOMEPILOT 10141545 RolloTron classic smart - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount

Warranty Terms

Warranty Terms 2827228 HOMEPILOT 10141545 RolloTron classic smart - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount

Description

With the electric blind winder RolloTron classic Smart Miniwinder you can control your shutters wirelessly.The electric belt winder also has a soft-start/soft-stop function, which ensures quiet operation with Hohem comfort and is also gentle on the material.The blind winder RolloTron classic Smart Miniwinder has numerous automatic functions, such as day, week and Astro program and the Random function. You can also freely select the ventilation and sun position and simply switch between automatic and manual operation by pressing a button.The flush-mounted belt winder can be integrated into all common winder boxes starting from a width of 36 mm, hence allowing universal use. Changing your old manual blind winder into a smart phone is quick and easy.This electric shutter belt winder can not only be controlled using our Smart remote control, but can also be combined with the premium gateway or the ROLLOTRON Premium Smart blind winder.

This text is machine translated.
