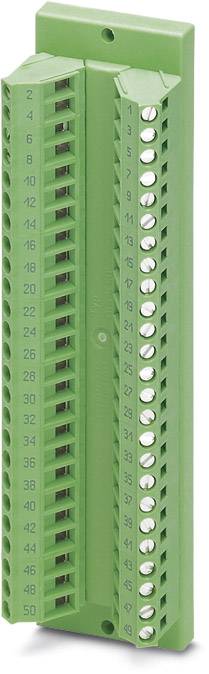

Interface module DFLK 50 2280284 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Stripping length (max.)
8 mm
Connector (field)
Screws
Connector (control)
IDC/FLK strip
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 98.32 / piece)
€ 491.60
plus VAT.
Highlights & Details
Interface module DFLK 50
- DFLK 50
- Industrial packaging with 5 pieces
Technical specifications
- Product type
Transfer module
- Total no. of pins
50
- Stripping length (max.)
8 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Industrial packaging
Yes
- Content
5 pc(s)
- Number of pins
50
- Series
Varioface-DFLK
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
Documents & Downloads
Datasheet
Datasheet 774297 Interface module DFLK 50 2280284 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 774297 Interface module DFLK 50 2280284 Phoenix Contact
Description
The VARIOFACE feed-through module implements a 1:1 connection between screw connection terminal blocks and an IDC/FLK pin strip (2.54 mm, number of positions: 50).
