Klingspor 336216 DT 350 U Extra Diamond cutting disc Diameter 180 mm Bore diameter 22.23 mm Construction materials, Conc

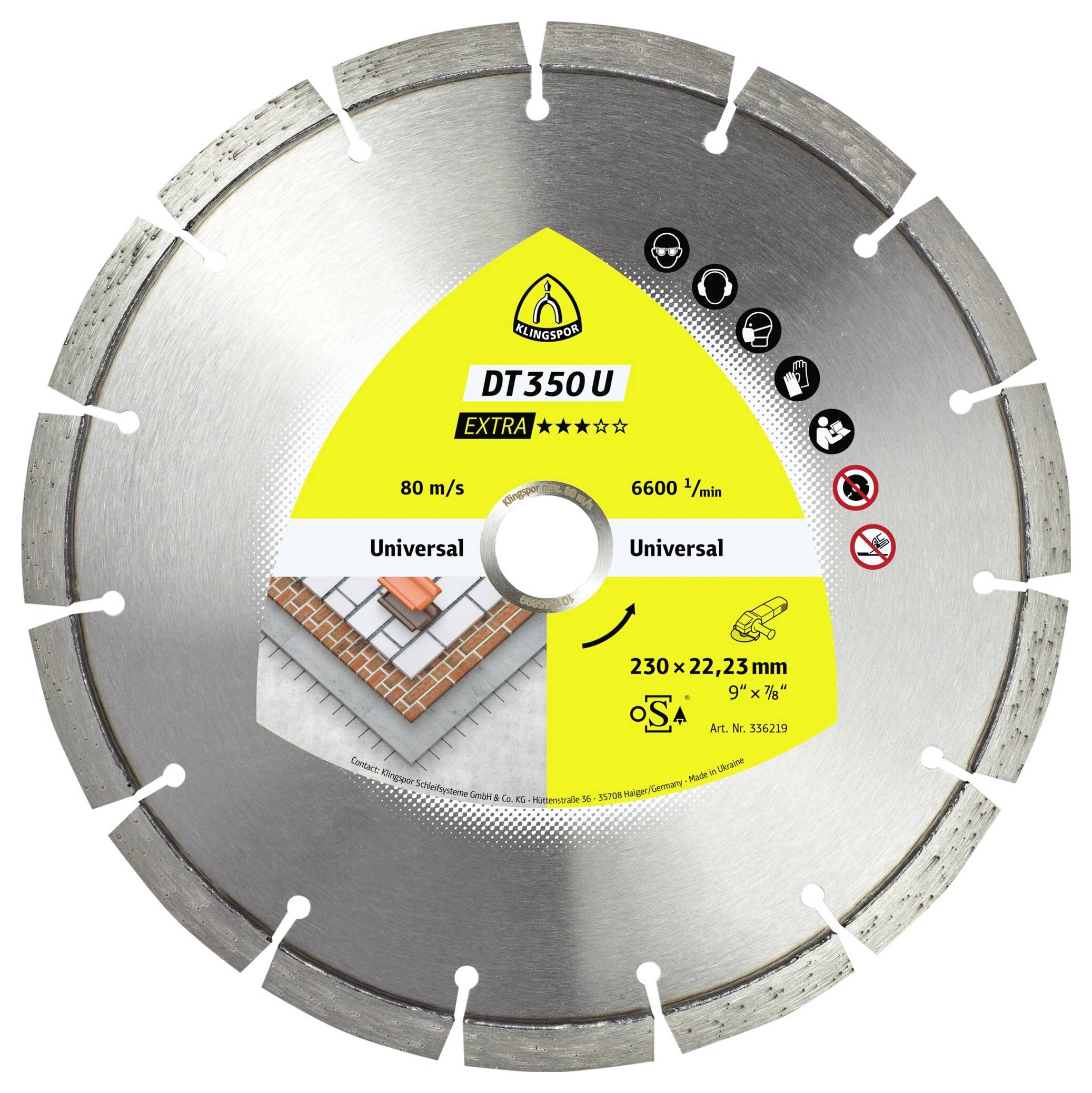

A circular saw blade with a metal rim and a yellow center label marked 'DT350U EXTRA', showing dimensions: 230 x 22,23 mm.

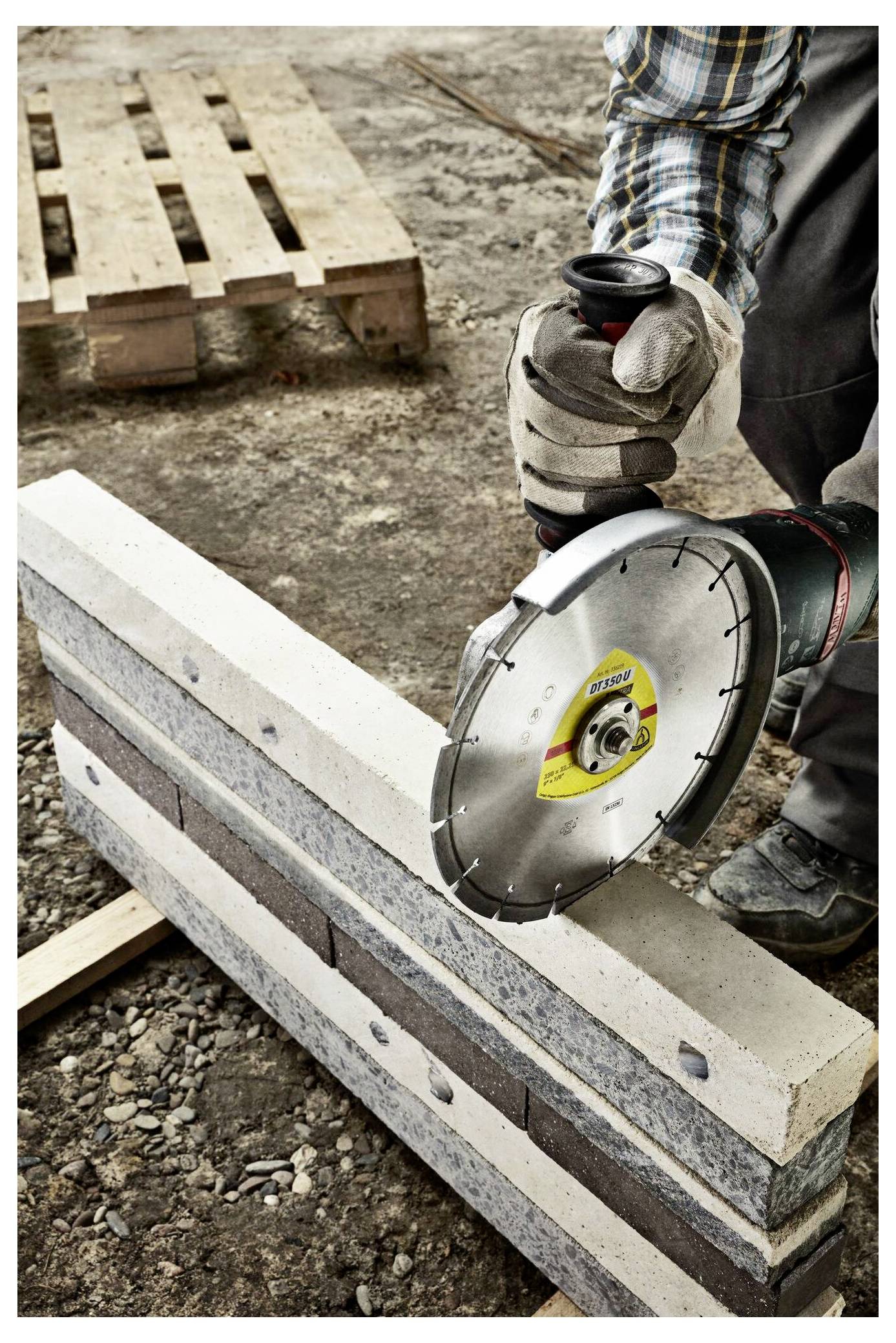

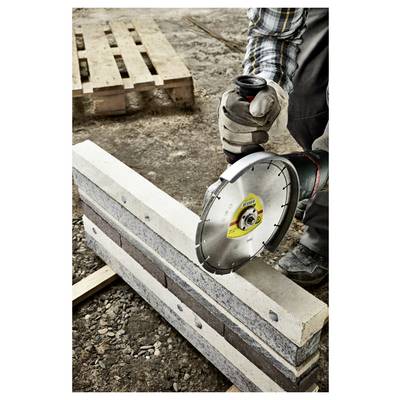

A person uses a power saw to cut a concrete block on a construction site, with wooden pallets in the background.
1/2
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 18 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 38.99 / piece)
€ 38.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DT 350 U diamond cutting discs, 180 x 2.6 x 22.23 mm 11 segments 42 x 2.6 x 10 mm, standard toothing

  • Universal product with laser-welded standard segments for general construction site materials
  • Light, low vibration and fast cutting with very good durability
  • Optimum value for money
  • 'Water-resistant' symbol showing a circle with a droplet and '+' sign, indicating a surface that resists water penetration.
  • 'Outline of a handheld circular saw with a circular blade and handle, showing key components and design.'
  • A black and white illustration of an angle grinder, showing details of the handle and circular blade.
  • A circular saw blade with a spark hitting the edge, indicating cutting or grinding action, enclosed in a circle.
  • Icon showing a water droplet with a plus sign next to it, and another droplet with a slash, indicating options for added or reduced moisture.

Technical specifications

  • Usage: Angle grinder, router
  • Aggressivity: High
  • Design: Laser welded
  • Segmentation: Standard
  • Service life: High
  • Top speed 80 m/s.
  • Maximum speed 8500 rpm
  • Machine type: Angle grinder
  • Edge design: Standard teeth
  • Number of segments: 11 pcs
  • Segment width 2.6 mm
  • Segment height 10 mm
  • Segment length 42 mm
Product type

Diamond cutting disc

Material suitability

Construction materials

Concrete (multi-purpose)

Bore Ø

22.23 mm

Dim

(Ø) 180 mm

(Ø)

180 mm

Rotational speed (max.)

8500 U/min

Features

Diamond

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3530070 Klingspor 336216 DT 350 U Extra Diamond cutting disc Diameter 180 mm Bore diameter 22.23 mm Construction materials, Conc

User & Safety Instructions

User & Safety Instructions 3530070 Klingspor 336216 DT 350 U Extra Diamond cutting disc Diameter 180 mm Bore diameter 22.23 mm Construction materials, Conc

Information

Information 3530070 Klingspor 336216 DT 350 U Extra Diamond cutting disc Diameter 180 mm Bore diameter 22.23 mm Construction materials, Conc

Description

The laser-welded universal disc DT 350 U extra is Ideal for quick cutting of concrete and other construction materials. The multi-talent offers Klingspor brand quality at an especially attractive price and in its class the best performance.

This text is machine translated.
