Buy Laserliner 082.242A Endoscope Probe diameter: 9 mm Probe length: 1.5 m

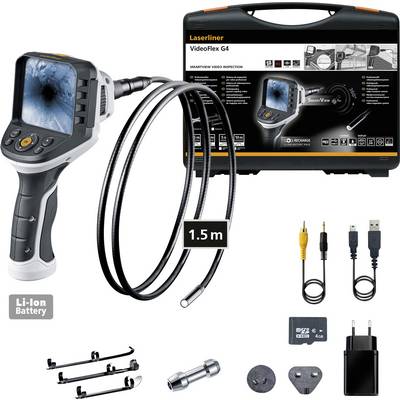

A portable inspection device with a screen and flexible cable. Accessories such as USB cable and charger are also depicted.

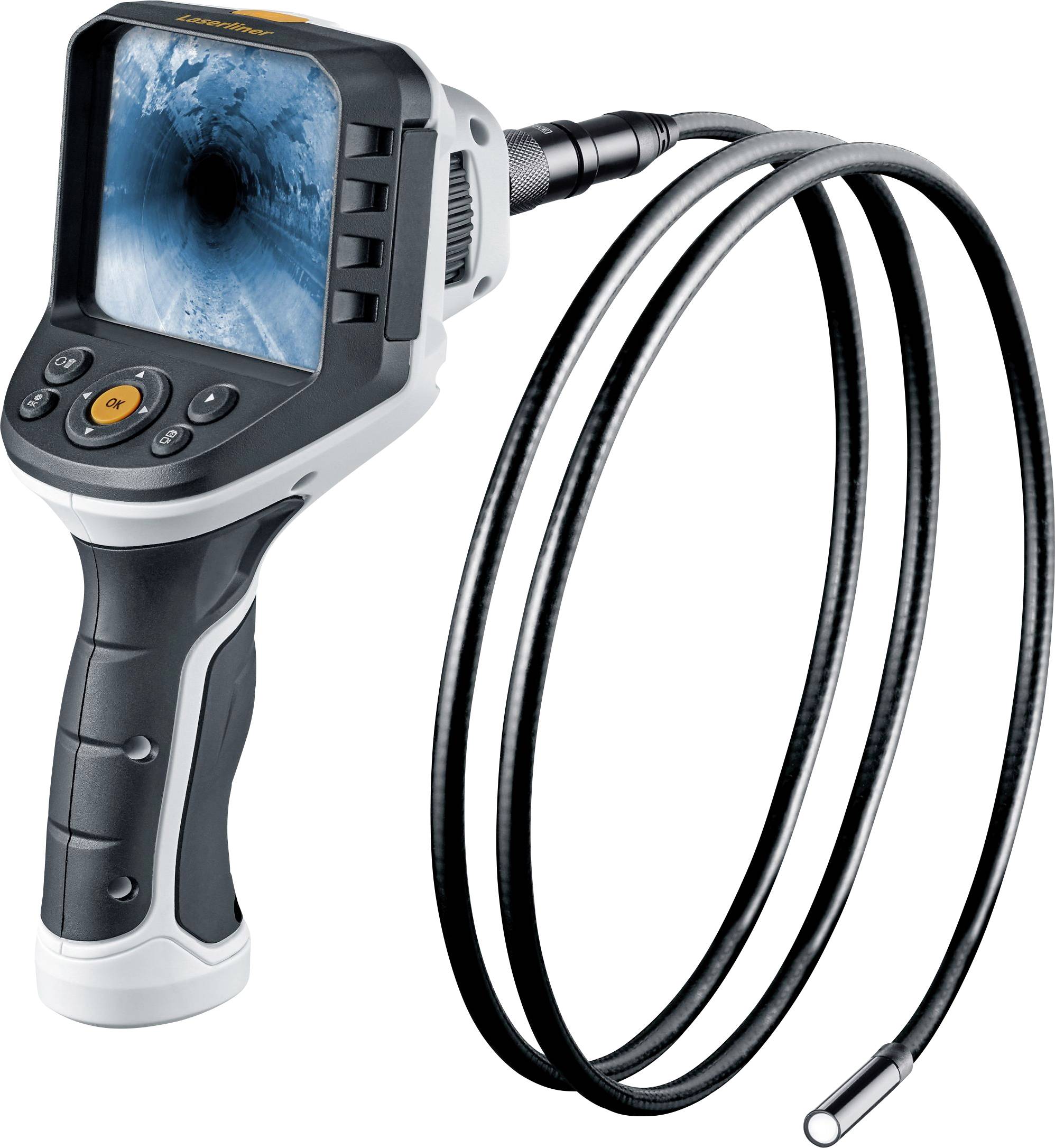

An inspection endoscope with a long, flexible cable and a camera. The display shows an image of a narrow pipe wall.<br><br>Note: The translation is already very close to British English, so minimal changes were needed.

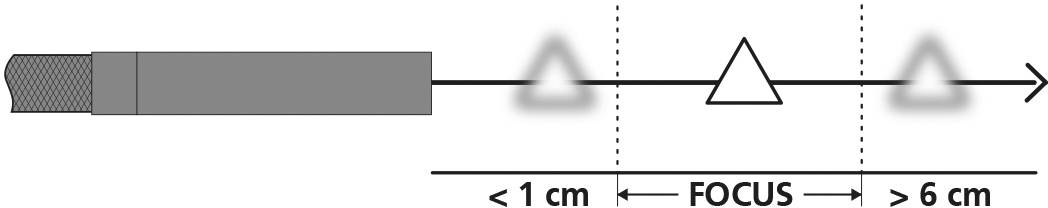

'Arrangement Diagram for Lens Focus: An arrow is focused through a lens. Focus range is approximately 6 cm.'

1/3

Fast track dispatch on Mon, 14 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 318.49 / piece)

€ 318.49

plus VAT.

Only 5 Piece(s) available

Report legal concerns

Highlights & Details

Professional video inspection system for visual inspection of inaccessible areas

- effective problem localization behind or in objects, walls, lines, cavities
- SmartView: Simple spatial orientation by intuitive rotation of the base unit
- bright object lighting on the camera through 4 high-power LEDs‘s
- flexible application possibilities through exchangeable camera unit
- Natural colors for a realistic representation
- The device fits well in the hand thanks to its ergonomic design
- the recordings can be saved for evaluation and documentation
- Image is suitable by rotation and mirroring on the monitor Available
Clear Display
- 8 available languages
- USB-C interface for evaluation on the PC

Technical specifications

Memory: Micro-SD memory card up to 16 GB
Connections: USB type C, video output phono
MENU LANGUAGE: DE,EN,ES,FR,IT,NL
Operating time: Approx. 5 hours
Charging time of approximately 4 hours.

Product type: Endoscope

Probe diameter: 9 mm

Probe length: 1.5 m

Display resolution: 320 x 420 Pixel

Digital zoom: 2 x

: IP54
IP67

Power supply (details): 3.7 V / 3

Field of view: 63°

Light source: LED 5 brightness levels

Weight: 342 g

Dim: (L x W x H) 9.6 x 18.1 x 20.7 cm

Length: 9.6 cm

Width: 18.1 cm

Height: 20.7 cm

Type: VideoFlex G4

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2366462 Laserliner 082.242A Endoscope Probe diameter: 9 mm Probe length: 1.5 m

Conformity certificate

Conformity certificate 2366462 Laserliner 082.242A Endoscope Probe diameter: 9 mm Probe length: 1.5 m

Description

The professional video inspection system enables visual inspections in hard-to-reach places, such as pipelines, wall cavities and motor vehicles. The user has a simple spatial orientation by intuitive rotation of the base unit. With effective LED object lighting, meaningful recordings are made even under poor conditions. A true-to-life representation of colors is provided due to the natural reproduction of colors. Details can be clearly captured via the zoom function. The ergonomically designed device fits well in the hand and is comfortable to use even during longer work. Eight available languages and the changeable camera unit provide for a variety of application possibilities. An SD memory card is used for documentation and the USB-C interface for evaluating images and videos.

This text is machine translated.
