Name: Laserliner 082.244A Endoscope Probe diameter: 9 mm Probe length: 1 m
Brand: Laserliner
SKU: 2366457
Availability: BackOrder

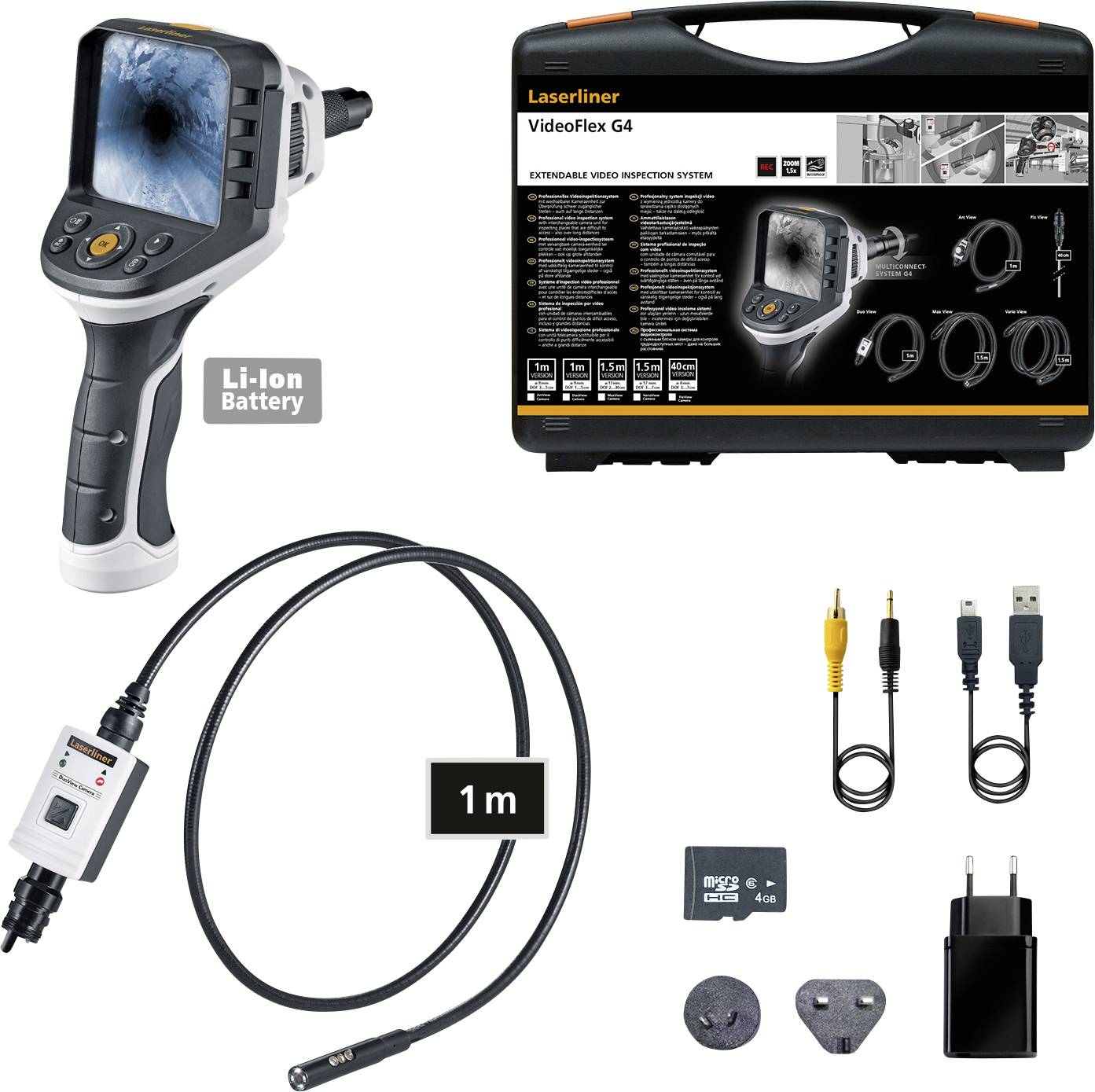

Inspection camera set with flexible probe, display device, carry case, cables, batteries and SD card for video surveillance.

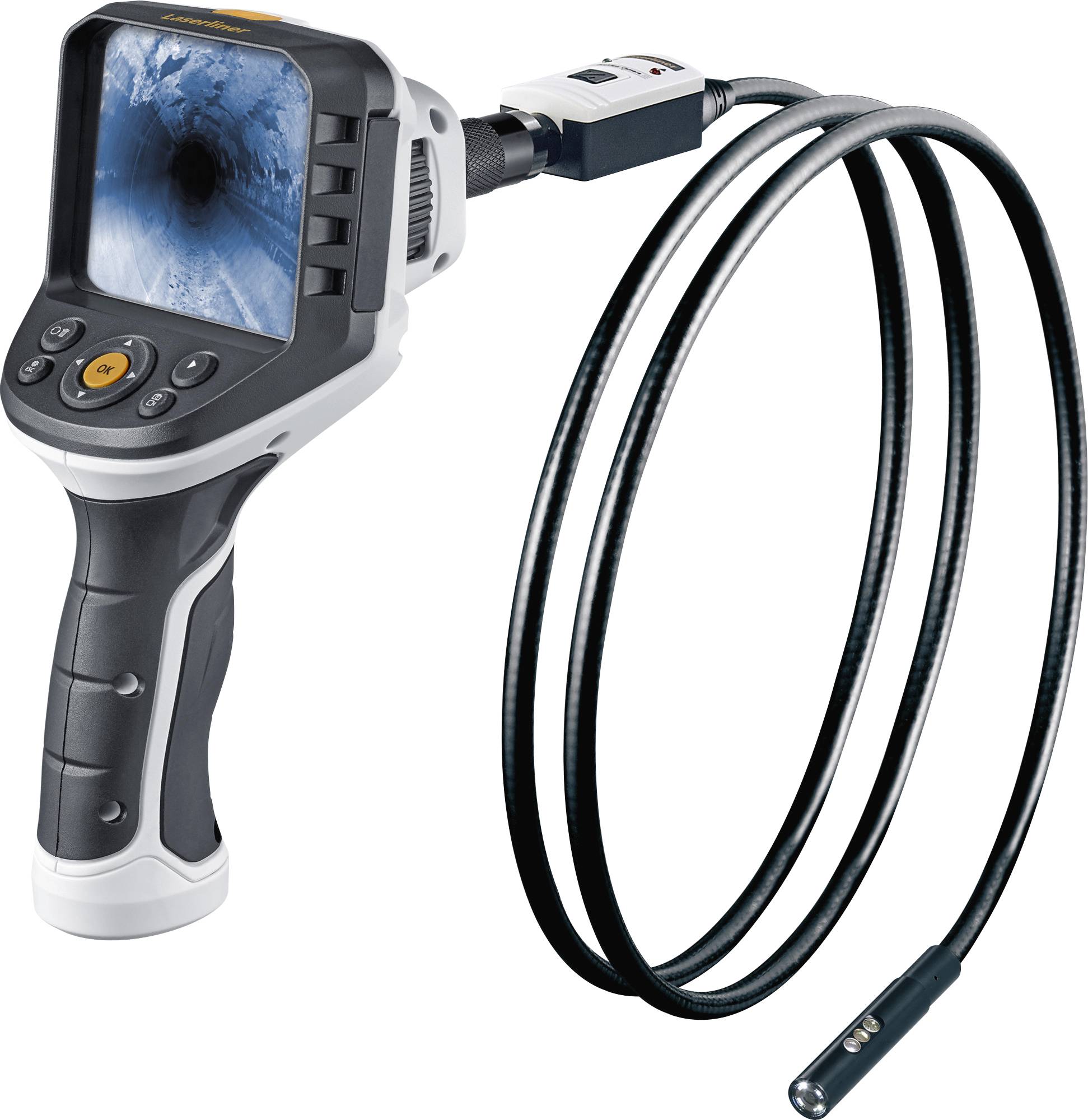

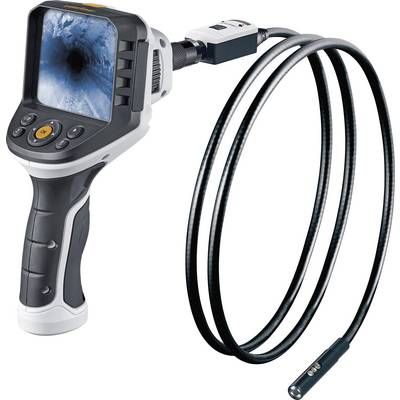

A handheld endoscope for inspecting hard-to-reach areas, with a flexible cable and integrated screen for displaying images.

The image shows a schematic representation of a camera lens with a focal range. The focus is on a triangle, blurred before and behind.

Diagram of an optical focus: A lens focuses a point in the centre. Blurry triangles can be seen to the left and right.

1/4

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 385.00 / piece)

€ 385.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Professional video inspection system with changeable views

- effective problem localization behind or in objects, walls, lines, cavities
- SmartView: Simple spatial orientation by intuitive rotation of the base unit
- Fast switching of the view by pressing a button by front and Side camera
- bright object lighting on the camera through 4 high-power LEDs‘s
- flexible application possibilities through exchangeable camera unit
- Natural colors for a realistic representation
- The device fits well in the hand thanks to its ergonomic design
- the recordings can be saved for evaluation and documentation
- Image is suitable by rotation and mirroring on the monitor Available
Clear Display
- 8 available languages
- USB-C interface for evaluation on the PC

Technical specifications

Memory: Micro-SD memory card up to 16 GB
Connections: USB type C, video output phono
MENU LANGUAGE: DE,EN,ES,FR,IT,NL
Operating time: Approx. 5 hours
Charging time of approximately 4 hours.

Product type: Endoscope

Probe diameter: 9 mm

Probe length: 1 m

Endoscope features: LED lit

Display resolution: 320 x 420 Pixel

Digital zoom: 2 x

: IP54
IP67

Power supply (details): 3.7 V / 3

Field of view: 57°

Light source: LED 5 brightness levels

Max. bend radius: 75 mm

Weight: 342 g

Dim: (L x W x H) 9.6 x 18.1 x 20.7 cm

Length: 9.6 cm

Width: 18.1 cm

Height: 20.7 cm

Type: VideoFlex G4 Duo

Variants(All information include VAT, plus shipping costs)

Endoscope features

IP rating

Probe diameter

Probe length

Laserliner 082.244A Endoscope Probe diameter: 9 mm Probe length: 1 m

Item no:2366457

Dispatches on Fri 13 Nov

Conrad Electronic

This article

LED lit

IP54

9 mm

1 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

Laserliner 082.240A Endoscope Probe diameter: 9 mm Probe length: 10 m

Item no:2366461

Fast track dispatch on Thu 29 Oct

7 Piece(s)Conrad Electronic

Digital zoom

IP54

9 mm

10 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 545.00^*

Laserliner 082.241A Endoscope Probe diameter: 6 mm Probe length: 1.5 m

Item no:2366459

Dispatches on Fri 13 Nov

Conrad Electronic

Image function

IP54

6 mm

1.5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 525.00^*

Laserliner 082.242A Endoscope Probe diameter: 9 mm Probe length: 1.5 m

Item no:2366462

Fast track dispatch on Thu 29 Oct

4 Piece(s)Conrad Electronic

LED lit

IP54

9 mm

1.5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 379.00^*

Laserliner 082.243A Endoscope Probe diameter: 9 mm Probe length: 5 m

Item no:2366463

Fast track dispatch on Thu 29 Oct

12 Piece(s)Conrad Electronic

Exchangeable camera attachment

IP54

9 mm

5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Laserliner 082.246A Endoscope Probe diameter: 17 mm Probe length: 1.5 m

Item no:2366465

Dispatches on Fri 13 Nov

Conrad Electronic

Exchangeable camera attachment

IP54

17 mm

1.5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

Laserliner 082.247A Endoscope Probe diameter: 17 mm Probe length: 1.5 m

Item no:2366458

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

Digital zoom

IP54

17 mm

1.5 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 315.00^*

Laserliner 082.248A Endoscope Probe diameter: 4 mm Probe length: 40 cm

Item no:2366460

Dispatches on Fri 13 Nov

Conrad Electronic

Digital zoom

IP54

4 mm

40 cm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 449.00^*

Laserliner 082.245A Endoscope Probe diameter: 9 mm Probe length: 1 m

Item no:2366464

Unavailable

Conrad Electronic

IP54

9 mm

1 m

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 585.00^*

Documents & Downloads

Information

Test Summary Report 2366457 Laserliner 082.244A Endoscope Probe diameter: 9 mm Probe length: 1 m

Conformity certificate

Conformity certificate 2366457 Laserliner 082.244A Endoscope Probe diameter: 9 mm Probe length: 1 m

Security datasheet

Security datasheet 2366457 Laserliner 082.244A Endoscope Probe diameter: 9 mm Probe length: 1 m

Description

The professional video inspection system enables visual inspections in hard-to-reach places, such as pipelines, wall cavities and motor vehicles. The user has a simple spatial orientation by intuitive rotation of the base unit. With effective LED object lighting, meaningful recordings are made even under poor conditions. A true-to-life representation of colors is provided due to the natural reproduction of colors. Front and side camera allow a quick change of the view by pressing a button. Details can be clearly captured via the zoom function. The ergonomically designed device fits well in the hand and is comfortable to use even during longer work. Eight available languages and the changeable camera unit provide for a variety of application possibilities. An SD memory card is used for documentation and the USB-C interface for evaluating images and videos.
