Buy Laserliner 082.246A Endoscope Probe diameter: 17 mm Probe length: 1.5 m

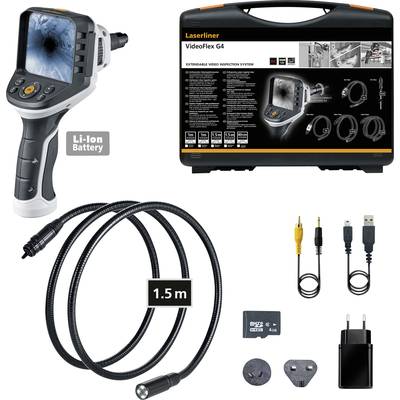

Endoscope camera with screen, flexible 1.5m cable, accessories and storage case, ideal for inspecting hard-to-reach areas.

A portable endoscope with a long flexible cable and a camera. The screen displays an inspected object in close-up.

1/2

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 281.51 / piece)

€ 281.51

plus VAT.

Report legal concerns

Highlights & Details

Professional video inspection system with a large depth of field and very bright LEDs

- effective problem localization behind or in objects, walls, lines, cavities
- SmartView: Simple spatial orientation by intuitive rotation of the base unit
- good view through large camera head with high depth of field
- bright object lighting on the camera through 4 high-power LEDs‘s
- flexible application possibilities through exchangeable camera unit
- Natural colors for a realistic representation
- The device fits well in the hand thanks to its ergonomic design
- the recordings can be saved for evaluation and documentation
- Image is suitable by rotation and mirroring on the monitor Available
Clear Display
- 8 available languages
- USB-C interface for evaluation on the PC

Technical specifications

Memory: Micro-SD memory card up to 16 GB
Connections: USB type C, video output phono
MENU LANGUAGE: DE,EN,ES,FR,IT,NL
Operating time: Approx. 5 hours
Charging time of approximately 4 hours.

Product type: Endoscope

Probe diameter: 17 mm

Probe length: 1.5 m

Endoscope features: Exchangeable camera attachment

Display resolution: 320 x 420 Pixel

Digital zoom: 2 x

: IP54
IP68

Power supply (details): 3.7 V / 3

Field of view: 53°

Light source: LED 5 brightness levels

Max. bend radius: 70 mm

Weight: 342 g

Dim: (L x W x H) 9.6 x 18.1 x 20.7 cm

Length: 9.6 cm

Width: 18.1 cm

Height: 20.7 cm

Type: VideoFlex G4 Max

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2366465 Laserliner 082.246A Endoscope Probe diameter: 17 mm Probe length: 1.5 m

Description

The professional video inspection system with a large depth-of-field area enables visual inspections in places that are difficult to access, for example in pipelines, wall cavities and vehicles. The user has a simple spatial orientation by intuitive rotation of the base unit. The very bright LED object lighting allows meaningful recordings even under poor conditions. A true-to-life representation of colors is provided due to the natural reproduction of colors. Details can be clearly captured via the zoom function. The ergonomically designed device fits well in the hand and is comfortable to use even during longer work. Eight available languages and the changeable camera unit provide for a variety of application possibilities. An SD memory card is used for documentation and the USB-C interface for evaluating images and videos.

This text is machine translated.
