Buy Laserliner 082.262A Inspection camera Probe diameter: 5 mm Probe length: 1 m

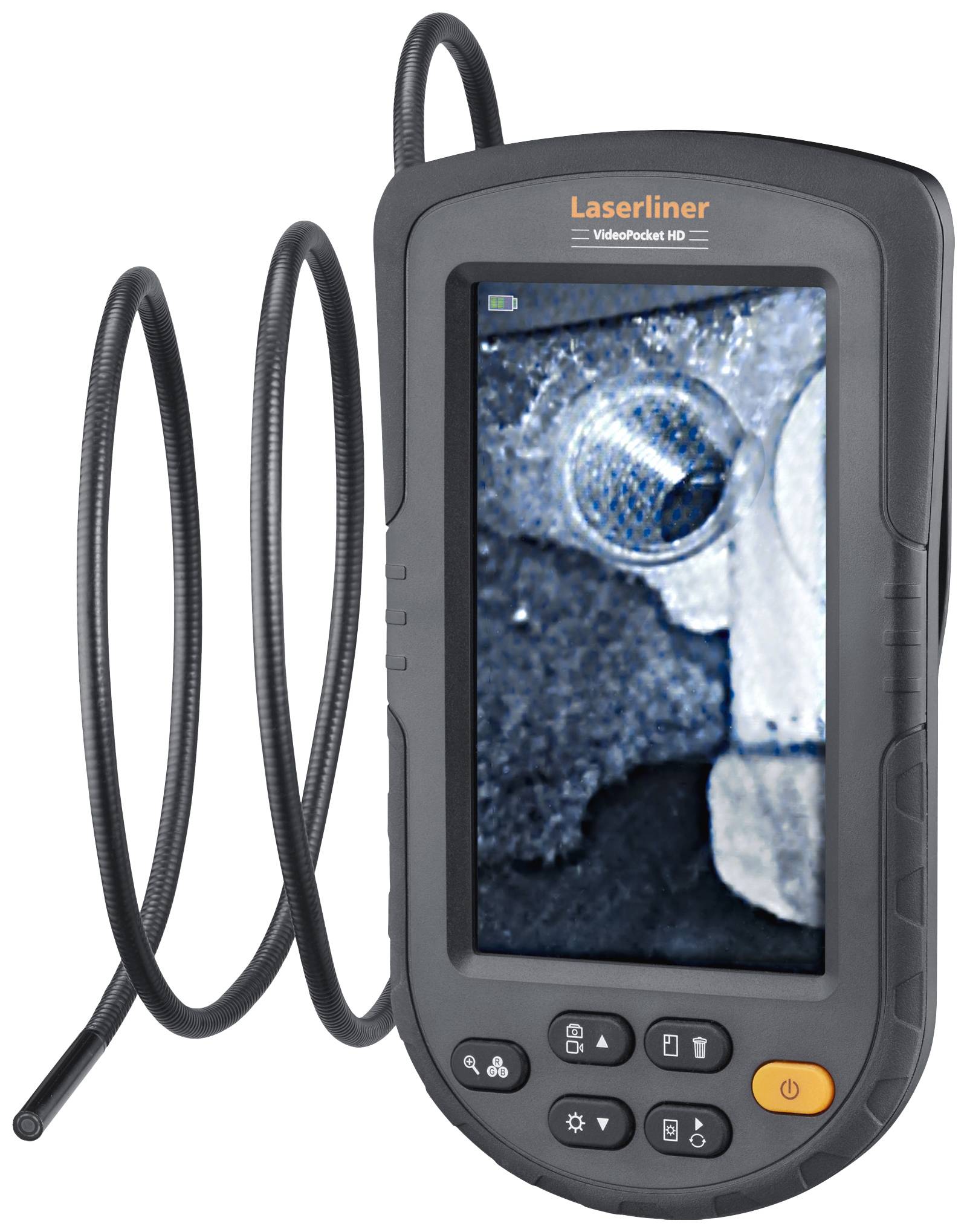

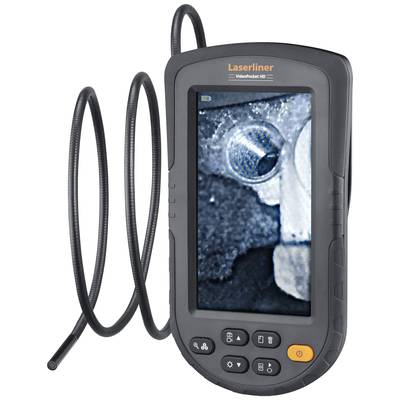

A portable endoscope displays a close-up image of a metal object on the screen. The cable is coiled and flexible.

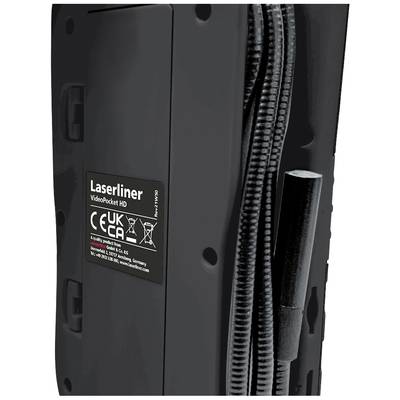

In the image, the Laserliner VideoPocket HD device is shown, with certification marks and technical cable connections on the right.

An inspection device shows the interior of a pipe with potential contaminants. The device is used for examining drainage pipes.

In the graphic, an inspection device with a camera probe is shown being used to examine the drainage system of a shower.

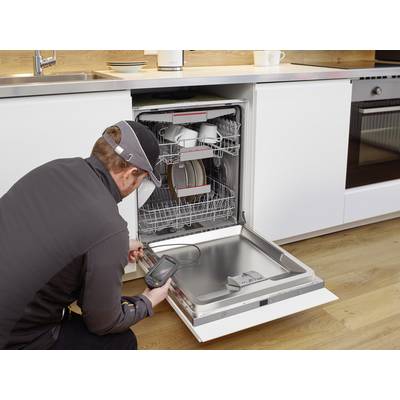

A technician is inspecting an open dishwasher in a modern kitchen. Crockery and cups can be seen inside the appliance.

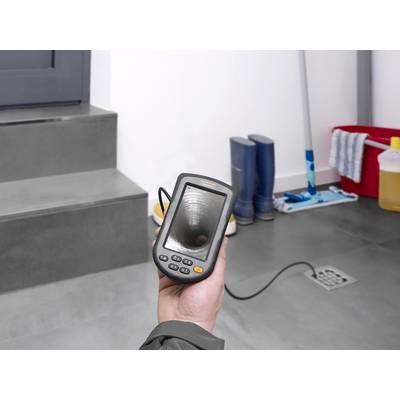

A person is holding an inspection device with a camera, showing the inner part of a pipe. Cleaning equipment and rubber boots are visible in the background.

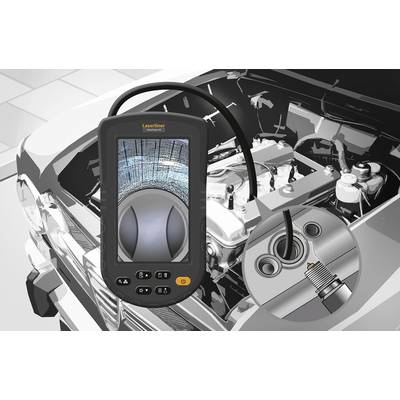

An endoscope shows the interior of an automotive fuel system. Main screen displays a detailed view of a spark plug chamber.

An endoscope shows the interior of a metallic container, which is visible on a display to inspect the surface's integrity.

An endoscope shows a pipe in the bathroom, connected to taps above the sink, to check for blockages.

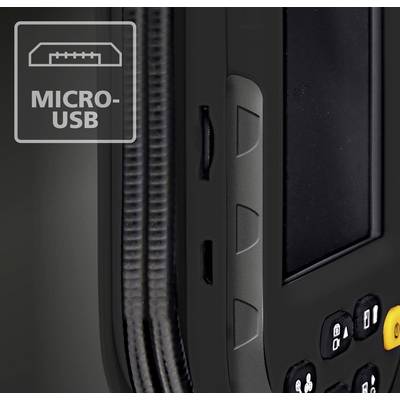

'Close-up of a portable electronic device with a micro-USB port and a display. Buttons are located below the display.'

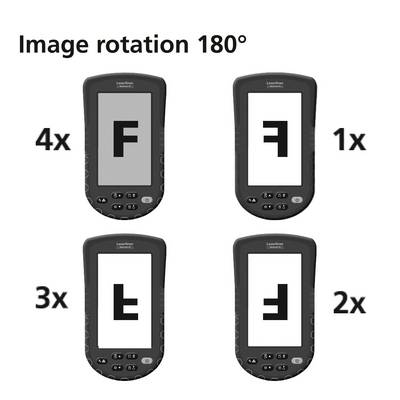

'F' is shown on a screen that is rotated 180 degrees. Each rotation is numbered, from 1x to 4x, and the 'F' appears differently in each position.

Diagram shows a pen focused on a line. The focal range lies between '3 cm' and '8 cm', marked by blurred triangles.

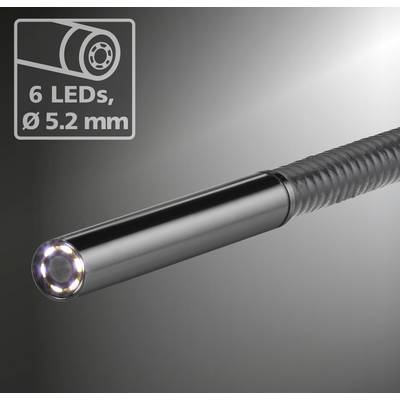

Endoscope with 6 LEDs, diameter 5.2 mm. Specialist design for precise inspections, ideal for hard-to-reach areas.

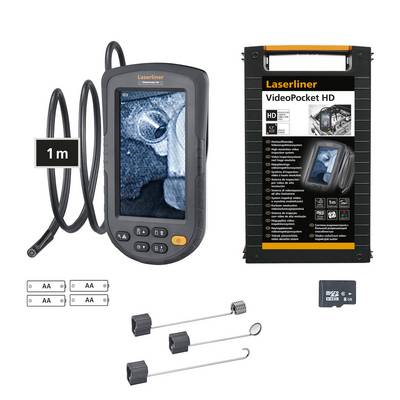

The image shows a videoscope with a screen, a flexible cable, and a camera head. It includes accessories such as AA batteries, an SD card, and various attachments. Packaging is visible in the background.

1/14

Fast track dispatch on Mon, 14 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 226.05 / piece)

€ 226.05

plus VAT.

Report legal concerns

Technical specifications

Min Bending radius of probe 30 mmLength of camera head 35 mmDiameter of camera head: Ø 5.2 mm4.3" TFT color display

Product type: Inspection camera

Probe diameter: 5 mm

Probe length: 1 m

Display resolution: 480 x 272 Pixel

Camera resolution: 1280 x 720 Pixel

: IP67

Power supply (details): 4 X 1.5V LR6 (AA)

Field of view: 65°

Weight: 370 g

Dim: (L x W x H) 32 x 85 x 155 mm

Length: 32 mm

Width: 85 mm

Height: 155 mm

Type: VideoPocket HD

Ambient temperature: -10 °C to 50 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2842861 Laserliner 082.262A Inspection camera Probe diameter: 5 mm Probe length: 1 m

Warranty Terms

Warranty Terms 2842861 Laserliner 082.262A Inspection camera Probe diameter: 5 mm Probe length: 1 m

Description

This high resolution and compact video inspection system allows detailed visual inspections of hard to reach areas, such as in pipelines, suspended ceilings and cars. While working, six high speed LEDs on the waterproof camera unit provide for an effective object lighting, which can be set in ten stages. Details can be clearly captured via the zoom function. Thanks to the large color display and the image alignment, inspection results are optimally visible. The image comparison function allows users to directly determine the differences between the live image and a stored reference image.

This text is machine translated.

Features

High-resolution, compact video inspection system with a large display, image comparison function, waterproof camera unit as well as practical mirror, magnet and hook attachments
