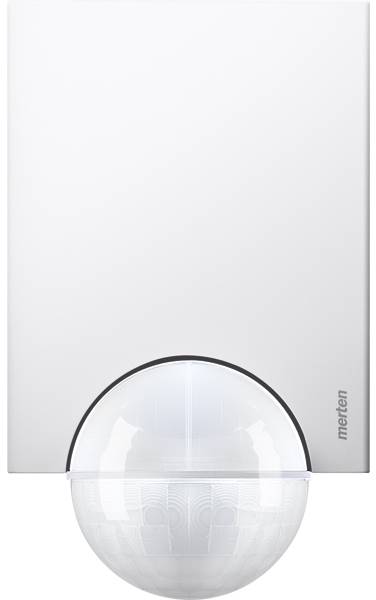

Merten 565426 Wall, Ceiling, Surface-mount PIR motion detector 220 ° Polar white IP55
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Product type
PIR motion detector
- Detection angle
220°
16 m
- Used at
Outdoors
Car
- Mounting type
Wall
Ceiling
Surface-mount
- Operating voltage
12 V
- Twilight settings
3-1000 lx
- Time settings
1 s - 8 min
- Factory colour
Polar white
IP55
- Width
93 mm
- Height
151 mm
- Dim
(W x H) 93 mm x 151 mm
- Weight
0.22
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 469642 Merten 565426 Wall, Ceiling, Surface-mount PIR motion detector 220 ° Polar white IP55
Description
Motion detector for the outdoor area. 220 degrees area surveillance for larger house fronts and areas of the house. 12 V design. With integrated interface for the expansion with a radio module (wireless connection of several devices). 360 Grad-Nahschutzzone (approx. 4 m radius). Large connection space and plug-in system. Looping is possible. LED function display for quick alignment at the installation site. Controls are located protected under the easily accessible cover plate. The following functions can be implemented via radio: flexible duration on, duration off and automatic. Supply Voltage: DC 12V attachment to outer/inner corners and fixed tubes with a mounting bracket.
