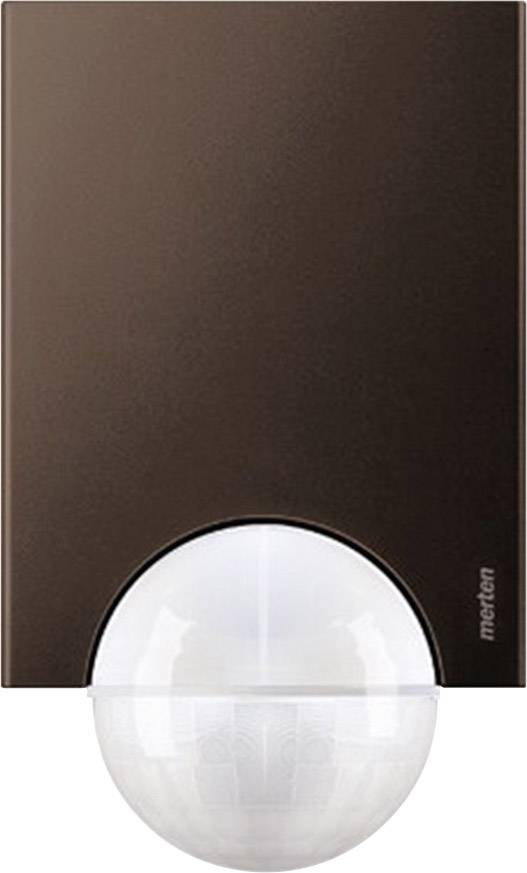

Merten MEG5628-3115 Surface-mount PIR motion detector 220 ° Dark brown IP55
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Highlights & Details
Movement sensor ARGUS 220° Dark Brasil
- IP55
Technical specifications
- Product type
PIR motion detector
- Detection angle
220°
16 m
- Used at
Outdoors
- Mounting type
Surface-mount
- Operating voltage
230 V
- Switching capacity (light bulbs)
2200 W
- Switching capacity (halogen bulbs)
2000 W
- Switching capacity (light tubes)
100 W
- Twilight settings
3 - 1000 lx
- Time settings
1 sec - 8 min
- Factory colour
Dark brown
IP55
- Operating temperature
-20…25 °C
- Length
93 mm
- Width
71 mm
- Height
151 mm
- Dim
(L x W x H) 93 x 71 x 151 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1435427 Merten MEG5628-3115 Surface-mount PIR motion detector 220 ° Dark brown IP55
Description
Motion detector for the outdoor area. 220 °-area surveillance for larger house fronts and areas of the house. 360° Nahschutzzone (approx. 4 m radius). Large connection space and plug-in system. Looping is possible. LED function display for quick alignment at the installation site. Controls are located protected under the easily accessible cover plate. Flexible adjustable sensor head. Hide individual lens areas possible. Wall and ceiling mounting without additional accessories.
