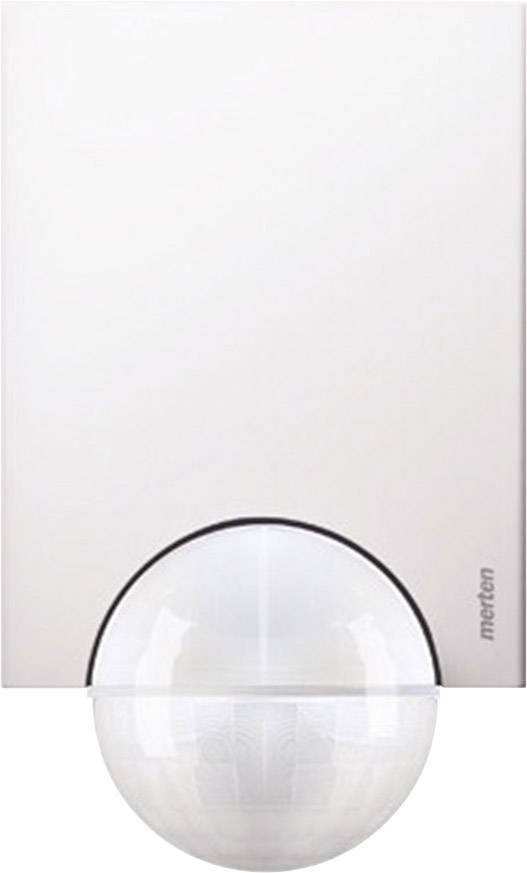

Merten MEG5628-3119 Surface-mount PIR motion detector 220 ° Polar white IP55

A white soap dispenser with a round, transparent dome at its base.
EAN:
Part number:
Item no:
Dispatches on Fri 30 Oct
16 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 154.99 / piece)
€ 154.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Movement sensor ARGUS 220 ° polar white

  • IP55

Technical specifications

Product type

PIR motion detector

Detection angle

220°

16 m

Used at

Outdoors

Mounting type

Surface-mount

Operating voltage

230 V

Switching capacity (light bulbs)

2200 W

Switching capacity (halogen bulbs)

2000 W

Switching capacity (light tubes)

100 W

Twilight settings

3 - 1000 lx

Time settings

1 sec - 8 min

Factory colour

Polar white

IP55

Operating temperature

-20 - + 25 °C

Length

93 mm

Width

71 mm

Height

151 mm

Dim

(L x W x H) 93 x 71 x 151 mm

Weight

1000 g

Depth

150 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1435426 Merten MEG5628-3119 Surface-mount PIR motion detector 220 ° Polar white IP55

Description

Motion detector for the outdoor area. 220 °-area surveillance for larger house fronts and areas of the house. 360° Nahschutzzone (approx. 4 m radius). Large connection space and plug-in system. Looping is possible. LED function display for quick alignment at the installation site. Controls are located protected under the easily accessible cover plate. Flexible adjustable sensor head. Hide individual lens areas possible. Wall and ceiling mounting without additional accessories.

This text is machine translated.
