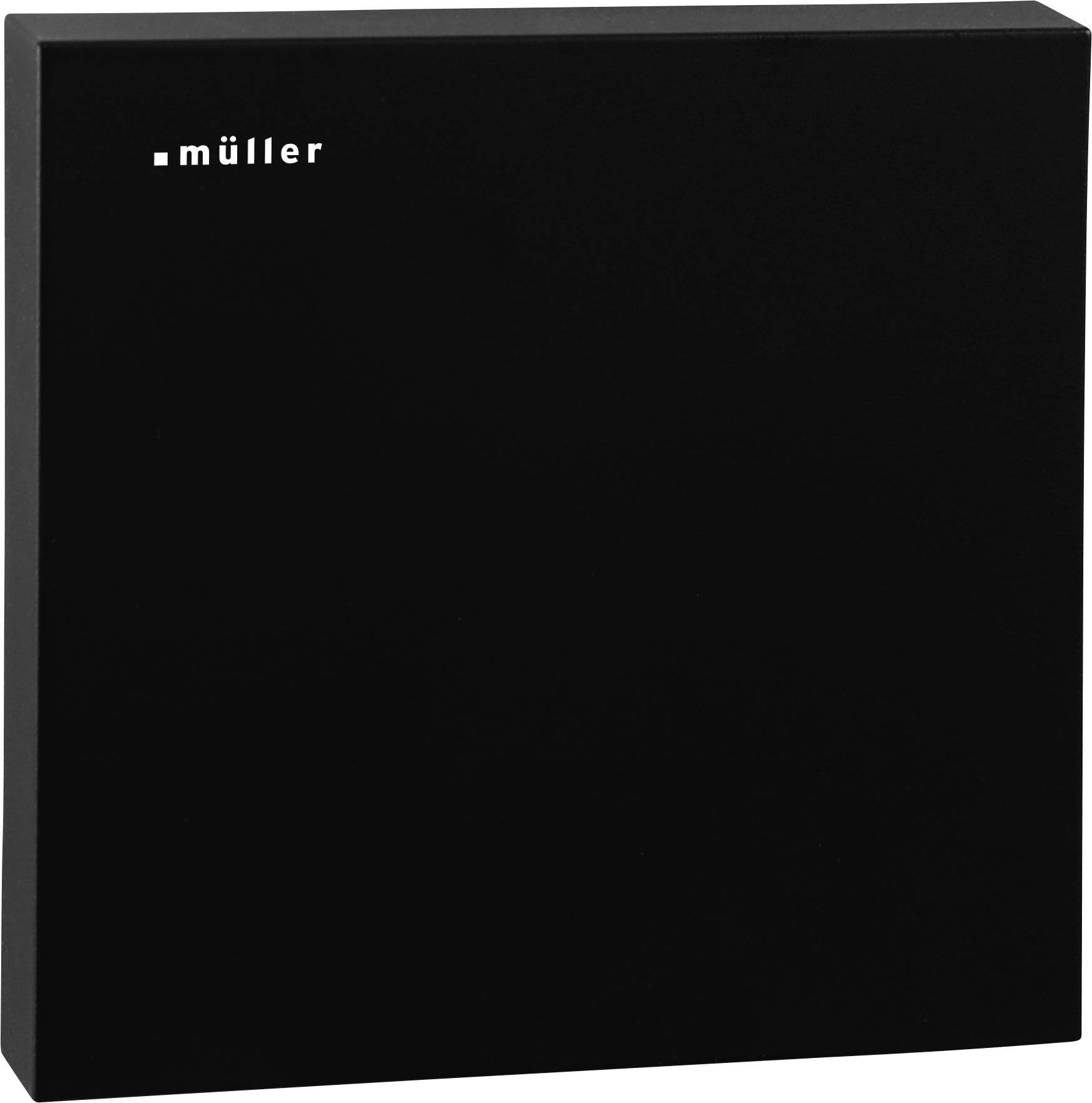

Müller KNX 24706 Room thermostat TS 30.12 knx RAL 9005
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 78.98 / piece)
€ 78.98
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Weidmüller TS 30.12 KNX black, room temperature controller
- Integrated room temperature control (2 zones possible)
- Flexible sensor integration (up to 4 temperature values + external sensors)
- 3× 0–10 V analog outputs (e.g. for fan coils or actuators)
- 5 versatile binary and analogue inputs
- RGB / RGBW / Tunable White light control
- KNX Secure and update enabled (future-proof)
- Intuitive ETS structure & easy commissioning
- Modern, flat design (80 mm, surface-mounted)
Technical specifications
- 5 binary and analogue inputs (e.g. for external PT1000 temperature sensors)
- Built-in party function
- PI controller for heating/cooling
- Product type
Room thermostat
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
21 V DC
32 V DC
- Data transfer (Smart Home)
Wired
- Mounting type
Wall
Surface-mount
- Factory colour
Jet black (RAL 9005)
- Width
80.5 mm
- Height
80.5 mm
- Depth
17 mm
- Dim
(W x H x D) 80.5 x 80.5 x 17 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
- Weight
45 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3771300 Müller KNX 24706 Room thermostat TS 30.12 knx RAL 9005
User & Safety Instructions
User & Safety Instructions 3771300 Müller KNX 24706 Room thermostat TS 30.12 knx RAL 9005
Description
Bring intelligence and timeless elegance in your Smart home. The Hugo Müller TS 30.12 KNX in deep matte black (RAL 9005) is far more than a simple room temperature controller – it is the invisible heart chamber of your modern climate management system.
Thanks to its highly precise integrated temperature sensor it controls your heating and cooling systems fully automatically and efficiently via the KNX bus system. The ultra-voluminous, extremely flat design fits seamlessly into modern switch programs, while clever additional features like the party function provide for maximum comfort. With the additional analogue and binary inputs you can expand the system quickly with external sensors or contacts. Rely on first-class German engineering for your feel-good home.
This text is machine translated.
Thanks to its highly precise integrated temperature sensor it controls your heating and cooling systems fully automatically and efficiently via the KNX bus system. The ultra-voluminous, extremely flat design fits seamlessly into modern switch programs, while clever additional features like the party function provide for maximum comfort. With the additional analogue and binary inputs you can expand the system quickly with external sensors or contacts. Rely on first-class German engineering for your feel-good home.
This text is machine translated.
Features
- Recording of the room temperature
- Temperature sensor (measuring range 0...50 °C)
- 2 separate temperature controls via KNX
- Temperature control possible with up to 4 Sensor values
- 5 binary and analogue inputs (e.g. for connection of an external temperature sensor)
- 3x analogue outputs (0-10V)
- RGB, RGBW and Tunable White dimming function
- KNX secure
- Updateable
- Clearly structured ETS
- Easy handling and installation
- Modern, flat design for surface mounting [80 mm]
- Party function
Scope of delivery
- 1x room temperature controller Hugo Müller TS 30.12 KNX
- Mounting accessory
- User manual
